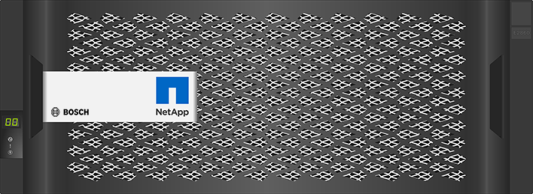

BOSCH-NETAPP DSA E2800 BASE DUAL CONTROLLER UNIT 60X8TB; SUPPORTS RAID-5 AND RAID-6); INCLUDES NETAPP SUPPORT EDGE STANDARD SUPPORT ONSITE NEXT BUSINESS DAY PARTS REPLACEMENT
- Scale-up network storage solution: controller unit with 60 internal HDDs expandable via state-of-the-art SAS interface-connected expansion units
- Configurable hardware-based RAID/DDP protection (RAID‑5, RAID‑6 or DDP) for highest system performance
- Redundant hot-swappable power supplies and cooling fans
- Two 10 Gigabit Ethernet ports for highest speed iSCSI connectivity
- Fully modular design for ease of service and protected by NetApp services, including a 3 years next business day on-site support
| Parameter | Low range, High range |
| Nominal voltage | 200 VAC, 240 VAC |
| Frequency | 50 Hz, 60 Hz |
| Typical operating current | 6.0 A, 5.0 A |
| Maximum operating current | 7.0 A, 5.8 A |
| System rating plate label | 9.98 A, 9.98 A |
| KVA | 1.05 |
| Watts | 1022 |
| BTU/h | 3495 |
| 60-bay unit | 17.44 x 44.85 x 97.15 cm (6.87 x 17.66 x 38.25 in) |
| Shipping carton | 68.8 x 68.3 x 117.6 cm (27.1 x 26.9 x 46.3 in) |
| Maximum weight controller unit | 113.0 kg (249.12 lb) |
| Maximum shipping weight | 147.1 kg (324.3 lb) |
| Front clearance (cooling and maintenance) | 81.2 cm (32.0 in) |
| Rear clearance (cooling and maintenance) | 60.9 cm (24.0 in) |
| Operating range (both cabinet and subsystem) | +10 °C to +40 °C (+50 °F to +104 °F) |
| Storage range | 0 °C to +70 °C (+32 °F to +158 °F) |
| Operating range (both cabinet and subsystem) | 20 to 80% |
| Storage range | 5 to 95% |
| Operating range | 30.5 m (100 ft) below sea level to 3000 m (9842 ft) above sea level |
