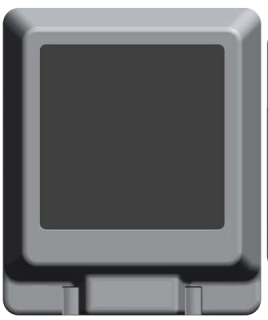

Temperature reference device 3" 35ºC
- Controlled surface temperature
- Reference for temperature for thermal cameras
- Easy installation
Key Specifications
| Temperature Range | 30 - 45 °C (86-113°F) |
| Wavelength Range | 3 - 14 um |
| Emissivity | >0.95 |
| Emitter Size: in (mm) | 3” x 3” (76.2 x 76.2 mm) |
| Source Type | Extended Area |
| Temperature Uniformity | +/- 0.15 °C (+/- 0.3 °F) Center 1.5 x 1.5” Area |
| Calibration Accuracy | +/- 0.15 °C (+/- 0.3 °F) Radiometric |
| Stability | +/- 0.05 °C (+/- 0.1 °F) |
| Response Time | < 5 minutes |
| Set Temperature Resolution | 0.1 °C (0.2 °F) |
| Control Type | Active Multi-Band P.I.D. |
| AC Adapter Line Voltage | 90 to 125 or 208-240 VAC 50-60 Hz |
| Power Requirements | 18 VDC, 1A AC power adapter provided |
| Operating Environment | 22° C +3/- 5°C (71.6°F +5.4/- 9°F) 5%-90% R.H. N.C. |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Remote Interface | USB |
| Mounting | ¼ - 20 Tripod Mount |
| Weight | 0.682 Kg (1.5 lb) |
