Bosch

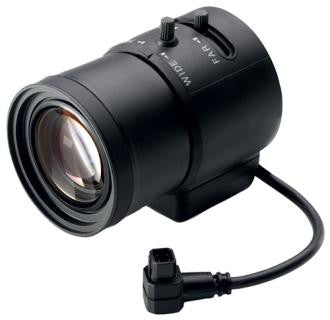

Bosch LVF-5005N-S1250 5 MP 1/1.8-INCH C-MOUNT LENS, Varifocal 12-50
Quantity:
Choose options
Quantity:
5 MP 1/1.8-INCH C-MOUNT LENS, Varifocal 12-50MM F1.6-360, IR CORRECTED, SR-IRIS (FOR USE WITH DINION IP starlight 5MP - NBN-80052-BA)
| Maximum sensor format | 1/2.5‑inch (Sensor diagonal 7.2 mm) |
| Optical resolution | 5 Megapixels |
| Focal length | 1.8 – 3 mm |
| Iris range | F1.8 to F8 |
| Min object distance | 0.5 m (1.64 ft) |
| Back focus distance (values in air) | 8.3 mm (0.33 in) |
| Weight | 63 g (0.134 lb) |
| Dimensions | Ø 50 mm x 49.3 mm |
| Lens mount | CS |
| Angle of view (HxV) 4:3 | 115 x 99° Wide 88 x 71° Tele |
| Angle of view (HxV) 1/3-inch sensor 16:9 | 109 x 82° Wide 82 x 54° Tele |
| Angle of view (HxV) 1/2.7-inch sensor 16:9 | 116 x 84° Wide 89 x 57° Tele |
| Angle of view (HxV) 1/2.8-inch sensor 16:9 | 114 x 82° Wide 86 x 56° Tele |
| Iris control | 4-pin, DC control |
| Focus ctrl | manual |
| Zoom ctrl | manual |
| IR corrected | yes |
| - Operating Temperature | -10°C to+50°C (+14°F to +122°F) |
| - Storage Temperature | -40°C to +70°C (-40°F to + 158°F) |
| - Operating Humidity | Up to 93% non-condensing |
