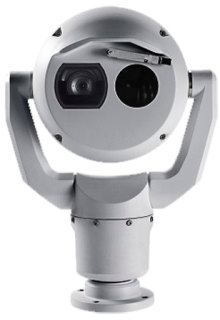

Bosch MIC-9502-Z30GVS MIC 9000I PTZ THERMAL VGA 50MM 2MP 30X
Bosch MIC-9502-Z30GVS MIC 9000I PTZ THERMAL VGA 50MM 2MP 30X 9HZ, G

Bosch

Bosch MIC-9502-Z30GVS MIC 9000I PTZ THERMAL VGA 50MM 2MP 30X 9HZ, G

Sale price$34,778.00
SKU: BOS-MIC-9502-Z30GVS
Quantity:

Contact

MIC 9000I PTZ THERMAL VGA 50MM 2MP 30X 9HZ, GRAY; REQUIRES 95W HPOE

  • Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
  • Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
  • Unique metadata fusion feature provides the ultimate in situation awareness
  • Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
  • Advanced on-board intelligent video tracking, object detection even when camera is on tours

Key Specifications

Imager Focal Plane Array (FPA), un-cooled Vanadium Oxide microbolometer
Resolution/Effective Picture Elements 640 × 480
Pixel Pitch 17 μm
Frame rate <9Hz (“VS” models)30Hz (“VF” models)
Lens Athermal 50 mm (F1.2)
Field of View (FOV) 12.4° x 9.3°
Spectral Response 8 to 14 μm
Thermal Sensitivity (NEDT) <72mK (at room temperature; Noise Reduction ON)
Focus Factory-set at infinity
Focus Distance 84 m to ∞ (276 ft to ∞)
Contrast enhancement On/Off
Gain Level User-adjustable
Brightness Level User-adjustable
Noise reduction On/Off
User-selectable thermal color modes 12
Approximate Performance Range in ideal conditions based on DRI criteria** Human 1.8 x 0.5 m(5.9 x 1.6 ft), Object 2.3 x 2.3 m(7.5 x 7.5 ft)
Detection 982 m (3222 ft), 4517 m (14,820 ft)
Recognition 245 m (804 ft), 1129 m (3704 ft)
Identification 123 m (404 ft), 565 m (1854 ft)
Lens 30x motorized Zoom4.3 mm to 129 mmF1.6 to F4.7
