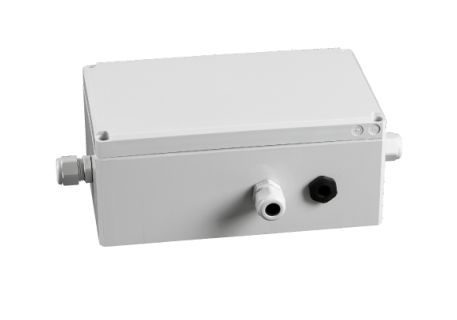

MIC7000 ALARM-WASHER INTERFACE, 24VAC
- Provides alarm and washer interface connections for MIC7000 cameras
- Impact-resistant polycarbonate enclosure rated to IP67 and NEMA 4X
- Watertight cable glands included
- Push button to activate/test connected washer pump
| Input Voltage | 24 VAC/VDC, 50/60 Hz |
| Power Consumption | 5 A maximum |
| Current Consumption | 1 A |
| Protection on RS-485 | Peak current 10 A, peak power 300 W (8/20 μ) |
| Protection on Alarm Inputs | Peak current 17 A, peak power 300 W (8/20 μ) |
| Protection on Alarm Outputs | Peak current 2 A, peak power 300 W (8/20 μ) |
| Protection on Relay Outputs | Peak current 7.3 A, peak power 600 W (10/1000 μ) |
| Protection on Power Input (Camera) | Peak current 7.3 A, peak power 600 W (10/1000 μ) |
| LEDs | Red LED (ON indicates power on)Green LEDs (blinking indicates activation for each alarm input)Yellow LED (blinking indicates active communication between the MIC-ALM-WAS-24 and the MIC7000 camera) |
| Communications Protocol | Proprietary half-duplex RS-485, 57600 baud |
| Power | 24 VAC ± 10%, 50/60 Hz |
| Alarm Input | 4 normal dry contacts (selectable N.O./N.C.)2 monitored tamper alarm inputs, 2.2K ohm end-of-line termination |
| Alarm Output | 3 open collector outputs, 32 VDC, 150 mA |
| Relay Output | 1 dry contact relay, 250 V, 5 A (for washer pump) |
| Alarm/Data | 3-wire RS-485 (to external alarm/washer accessory unit) up to 100 m |
| Ingress Protection Rating/ Standard | IP67NEMA 4, 4X, 6, 12, 13 |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Cold Start-up Temperature | -40 °C (-40 °F) (Requires 60 minute warm-up prior to operation) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Humidity | 0-100% |
