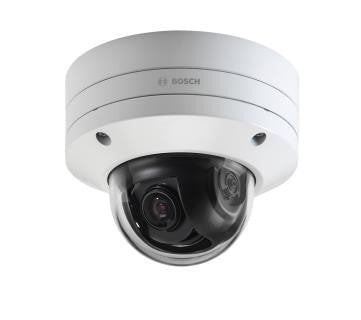

FIXED DOME 6MP HDR 12-40MM PTRZ IP66
- Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
- Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
- Starlight technology provides highly detailed images in extreme low-light situations
- Built-in Intelligent Video Analytics to trigger alerts and quickly retrieve data with the highest levels of accuracy
- High Dynamic Range to see every detail in both bright and dark areas of the scene
| Input voltage | PoE IEEE 802.3af / 802.3at Type 1, Class 3 24 VAC ±10% 12-26 VDC ±10% PoE and auxiliary power can be connected simultaneously for redundant operation |
| Power Consumption(typical / maximum) | PoE: 7 W / 13 W 24 VAC: 7.1 W - 12 VA / 13 W - 25 VA 12-26 VDC: 7.5 W / 16 W |
| Sensor type | 1/1.8‑inch CMOS |
| Effective pixels | 3264 (H) x 1840 (V) pixels, 6.0MP (approx.) |
| Color | 0.084 lx |
| Mono | 0.0135 lx |
| Wide Dynamic Range | 120 dB WDR |
| Measured according to IEC 62676 Part 5 | 107 dB WDR (3.9 to 10 mm lens)106 dB WDR (12 to 40 mm lens) |
| Lens | 12 to 40 mm P-iris lens (IR corrected) F-stop 2.3 - 2.3 |
| Adjustment | Motorized zoom/focus |
| Iris control | P-iris control |
| Viewing angle | Wide: 36º x 20º (H x V) Tele: 12.6º x 7.1º (H x V) |
| Common product platform | CPP7.3 |
| Video compression | H.265; H.264; M- JPEG |
| Sensor modes | 25 fps, HDR, 1920 x 1080 (2 MP) 30 fps, HDR, 1920 x 1080 (2 MP) 50 fps, 1920 x 1080 (2 MP) 60 fps, 1920 x 1080 (2 MP) |
| Streaming | Multiple configurable streams in H.264, H.265 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) Bosch Intelligent Streaming |
| Camera latency | 67 ms (2 MP, 60 fps) |
| GOP structure | IP, IBP, IBBP |
| Frame rate | 1-60 fps |
| Signal-to-Noise Ratio (SNR) | >55 dB |
