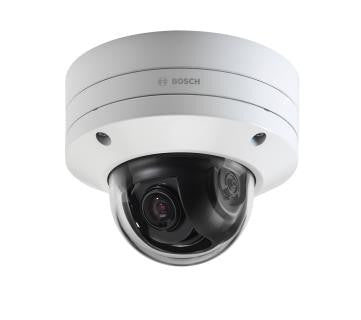

Bosch NDE-8504-R FIXED DOME 8MP HDR 3-9MM PTRZ IP66
Bosch NDE-8504-R FIXED DOME 8MP HDR 3-9MM PTRZ IP66

Bosch

Bosch NDE-8504-R FIXED DOME 8MP HDR 3-9MM PTRZ IP66

Sale price$1,566.00
SKU: BOS-NDE-8504-R
Quantity:

Contact

FIXED DOME 8MP HDR 3-9MM PTRZ IP66

  • Wireless or remote configuration and commissioning with the Project Assistant app. Pan, Tilt, Roll and Zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
  • Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80%
  • 8MP (4K UHD) for exceptional detail at fast speeds
  • Built-in Intelligent Video Analytics to trigger alerts and quickly retrieve data with the highest levels of accuracy
  • High Dynamic Range to see every detail in both bright and dark areas of the scene

Key Specifications

Input voltage PoE IEEE 802.3af / 802.3at Type 1, Class 3 24 VAC ±10% 12-26 VDC ±10% PoE and auxiliary power can be connected simultaneously for redundant operation
Power Consumption(typical / maximum) PoE: 7 W / 13 W 24 VAC: 7.1 W - 12 VA / 13 W - 25 VA 12-26 VDC: 7.5 W / 16 W
Sensor type 1/1.8‑inch CMOS
Total sensor pixels 3840 (H) x 2160 (V), 8MP (approx.)
Color 0.041 lx
Mono 0.0072 lx
Color 0.086 lx
Mono 0.0165 lx
Wide Dynamic Range 120 dB WDR
Measured according to IEC 62676 Part 5 107 dB WDR (3.9 to 10 mm lens)106 dB WDR (12 to 40 mm lens)
Lens 3.9 to 10 mm P-iris lens (IR corrected) F-stop 1.5 - 2.7
Adjustment Motorized zoom/focus
Iris control P-iris control
Viewing angle Wide: 117º x 62º (H x V) Tele: 44º x 24º (H x V)
Lens 12 to 40 mm P-iris lens (IR corrected) F-stop 2.3 - 2.3
Adjustment Motorized zoom/focus
Iris control P-iris control
Viewing angle Wide: 36º x 20º (H x V) Tele: 12.6º x 7.1º (H x V)
Common product platform CPP7.3
Video compression H.265; H.264; M- JPEG
