Product Discontinued by Manufacturer
Contact us for replacement

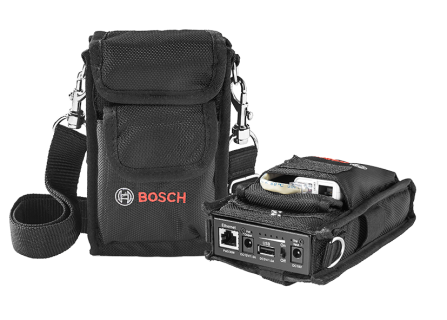

PORTABLE CAMERA INSTALLATION TOOL
- Fast on-site commissioning solution with Bosch Project Assistant app
- Highly portable, lightweight and compact installation tool
- Rechargeable high capacity Lithium-ion battery
- No dependency on available network and power infrastructure
| Connectors | Shielded RJ-45 |
| Input | DC 19V / 3.16A |
| Output | PoE+ max. 25.5W 12V DC 1.5A USB 5V / 1A |
| Operating Temperature | 0º C to +40º C (+32º F to +104º F) |
| Storage Temperature | 0º C to +25º C (+32º F to +77º F) |
| Charging Temperature | +10º C to +40º C (+50º F to +104º F) |
| Operating Humidity | 85% |
| Storage Humidity | Less than 70% RH |
| Dimension (WxHxL) | 76.2 x 25.4 x 156 mm (3 x 1 x 6.1 inch) |
| Weight | 550 g (1.2 lb) |
| PoE+ port | IEE802.3AT, 1 connection |
| WLAN | IEEE802.11 |
| Frequency rate | IEEE 802.11b Mode: 17.97dBM IEEE 802.11g Mode: 20.67dBm IEEE 802.11g HT20MHz: 20.68dBm IEEE 802.11n HT20MHz: 20.95dBm |
| Indicators | Charging indicator - Charging: Red Full: Green |
| Battery Type | Lithium-ion battery pack, type 18650 (2950mA), 4pcs in one pack |
| Compatible Apps | Project Assistant app (free download) |
