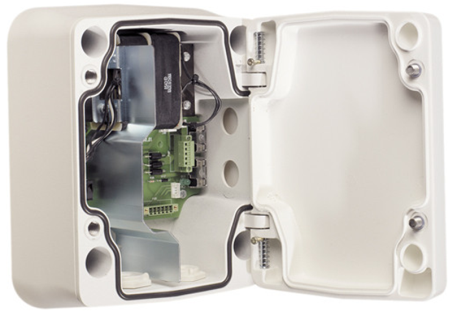

Bosch VG4-A-PSU0 AUTODOME MODULAR (G5) REMOTE POWER UNIT, 24 V
Bosch VG4-A-PSU0 AUTODOME MODULAR (G5) REMOTE POWER UNIT, 24 V

Bosch

Bosch VG4-A-PSU0 AUTODOME MODULAR (G5) REMOTE POWER UNIT, 24 V

$114.00
SKU: VG4-A-PSU0
Quantity:

Contact

AUTODOME MODULAR (G5) REMOTE POWER UNIT, 24 VAC, NEMA, WHITE

  • Aluminum enclosure rated to IP66 to prevent dust and water ingress
  • IK08 impact rating ensures enclosure integrity

Key Specifications

Full specifications

Model Input, Output Rating, Input Fuses, Output Fuses
Camera Heater
VG4-A-PSU0 24 VAC, 50/60 Hz, 24 V @ 96 VA, 5.0 A, 2.0 A, 3.15 A
VG4-A-PSU1 120 VAC, 50/60 Hz, 24 V @ 96 VA, 1.6 A, 2.0 A, 3.15 A
VG4-A-PSU2 230 VAC, 50/60 Hz, 24 V @ 96 VA, 0.8 A, 2.0 A, 3.15 A
Certifications UL, CE, Plenum Rated
Dimensions (W x H x D),all models2 170.0 x 216.4 x 105.0 mm (6.69 x 8.52 x 4.13 in.)
Construction Material Cast Aluminum
Standard Color White (RAL9003)
Standard Finish Powder coated, sand finish
Operating Temperature –60°C to 55°C (–76°F to 131°F)
Humidity 0% to 100%, condensing
Environmental Protection IP66, IK 8 (IEC 62262)
