Bosch

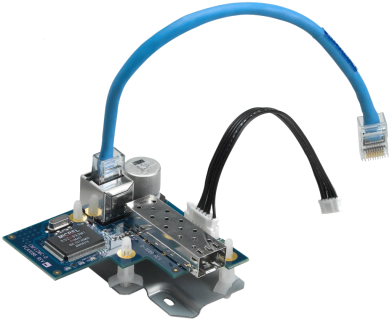

Bosch VG4-SFPSCKT ETHERNET TO SFP INTERFACE KIT FOR AUTODOME IP
Quantity:
Choose options
Quantity:
ETHERNET TO SFP INTERFACE KIT FOR AUTODOME IP AND MIC IP SERIES
- Utilizes Small Form-factor Pluggable (SFP) modules
- Multi-mode and single-mode modules available
- Supports distances up to 20 km (12.4 miles)
- Surface mount or rack mount capability
| Description | Fiber Optic Ethernet Media Converter kit.Requires a small form-factor pluggable (SFP) module (sold separately). |
| Data Interface | Ethernet |
| Data Rate | 10/100 MbpsIEEE 802.3 CompliantFull Duplex or Half Duplex Electrical PortFull Duplex Optical Port |
| Compatible Receiver | CNFE2MC/IN |
| Installation | Installed inside a NDA-U-PAx, VG4-A-PAx or a VG4-A-PSUx power supply box, or in a MIC IP PSU, with supplied mounting hardware. Note: Wiring for the VG4-SFPSCKT must be routed through the proper conduit opening on the power supply box. Refer to the installation guide that accompanies the module. |
| Green | Power is applied, fiber link is valid. |
| Red | Power is applied, fiber link is missing. |
| Green/Flashing Red, rapid | Power is applied.Fiber link is valid.Data is present and video is streaming from the camera to a network connection. |
| Green/Flashing Red, slow | Power is applied.Fiber link is valid.Data is present.Video is not streaming from the camera, or the RJ45 connection to the camera is not valid. |
| Right side, Flashing Green | Data is present. |
| Right side, Off | No data is present. |
| Left side, Amber | Link is valid at 100 MB. |
| Left side, Off | If the right side is flashing green, link is valid at 10 MB. |
| No LED lit | The network cable is missing, is defective, or the other end of the network cable is not connected. |
| Power | 24 VAC @ 220 mA (supplied by the camera) |
| Current Protection | Automatic resettableSolid-state current limiters |
| Circuit Board | Meets IPC Standard. |
| Dimensions (LxWxH) | 7.4 x 7.1 x 3.8 cm (2.9 x 2.8 x 1.5 in.) |
| Shipping Weight | 0.91 kg (2 lb) |
| MTBF | > 100,000 hours |
