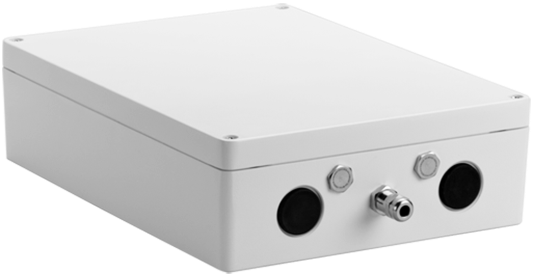

VIDEOJET CONNECT 7000 NETWORK POWER SUPPLY; INCL (1) HPOE NETWORK CONNECTION, (2) STANDARD NETWORK INTERFACES FOR CONNECTIONS TO ADDITIONAL IP DEVICES, (1) SLOT FOR A COMPACTFLASH (CF) MEMORY CARD, (2) SLOTS FOR USE WITH SFP-BASED FIBER OPTIC MODULES, ALARM/WASHER CONTROL INTERFACES, AND AUDIO I/O
- Operates a variety of Bosch HD PTZ cameras, including MIC7000
- Alarms, washer pump control, local storage slot for a CompactFlash (CF) memory card, built-in web browser for control of connected cameras
- One (1) HD-BaseT PoH dedicated for one RJ45 Ethernet port; three (3) RJ45 ports; two (2) SFP ports
- Support for daisy-chaining of multiple cameras
| Power requirements | 100 VAC - 240 VAC (90 VAC - 264 VAC with tolerance considered), 50/60 Hz, 1.6 A max. |
| Input power | 184 W |
| HPoE output | 95 W / 56V |
| Communication | 3x 10BASE-T/100BASE-TX/1000Base-TX If SFP fiber optic modules installed: 2x 1000 BASE-FX |
| SFP (small form-factor pluggable) slot | Two (2) for use with SFP-based fiber optic modules (1GB only) such as: |
| - Standard | G.711, 8 kHz sampling rate L16, 16 kHz sampling rate AAC, 16 kHz sampling rate |
| - Signal-to-Noise Ratio (SNR) | >50 dB |
| Local storage | One (1) slot for optional CompactFlash (CF) memory card, Type I / Type II, True IDE Mode, 1 TB max (user-supplied) |
| Washer switch | Push button to activate/test the washer relay momentarily |
| Alarm Inputs | Four (4) normal dry contacts (selectable N.O./N.C.)Monitored supervised alarm input (Alarm 1), 2.2K ohm (Ω) end-of-line terminating resistor |
| Alarm Outputs | Three (3) open collector outputs, 32 VDC, 150 mA |
| Washer driver output | Dry contact relay, 250 V, 5 A |
| RJ45 connectors | (3) – one PoE/PoH, 95W max; two standard network connections suitable for interface to head end network and ‘daisy chain’ type connection to second camera or VJC-7000-90 location |
| - Connector | 3.5 mm stereo jack |
| - Signal line in | 9 kohm typical, 5.5 Vpp max. |
| Ingress Protection Rating/Standard | IP66, IP67, NEMA Type 4 |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Storage Temperature | -60 °C to +70 °C (-76 °F to +158 °F) |
| Humidity | 0–100% |
| Dimensions (L x W x H) | 330 mm x 250 mm x 90.75 mm (13 in. x 9.84 in. x 3.57 in.) |
