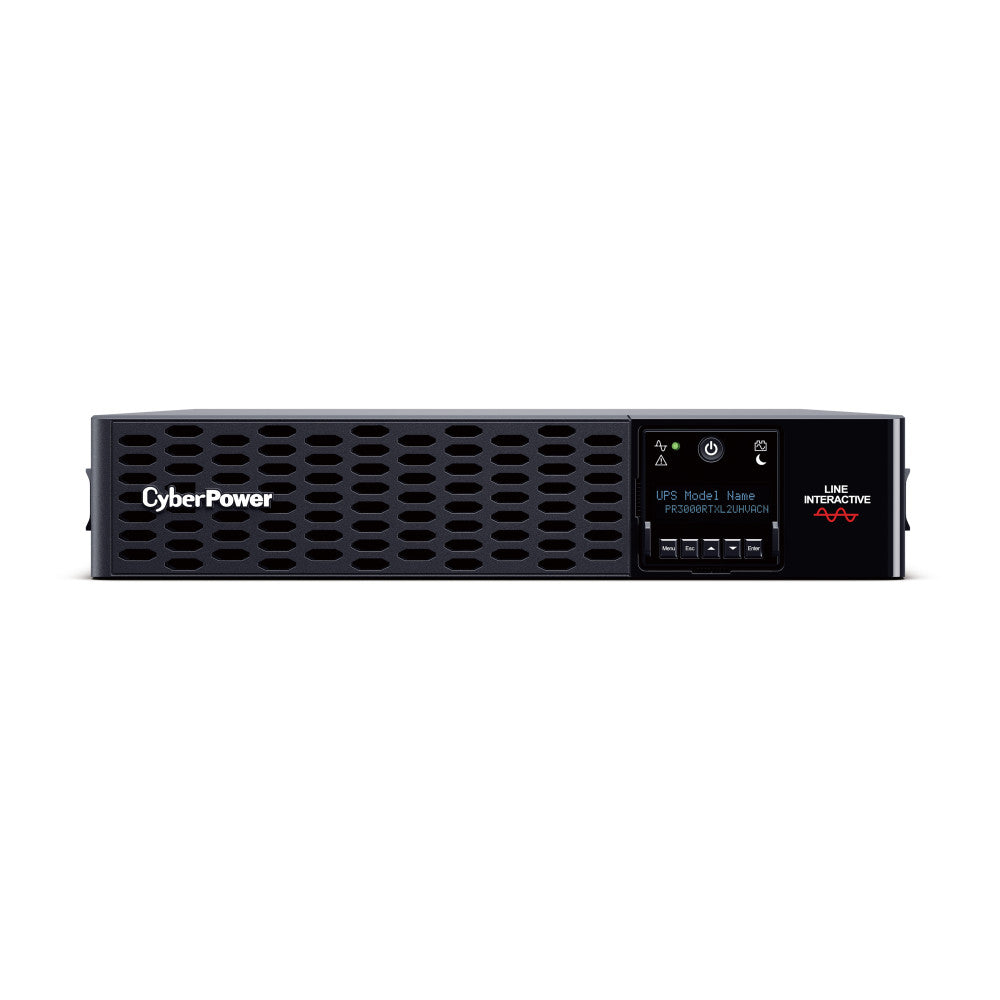

Cyber Power PR3000RTXL2UHVACN Smart App Sinewave

The PR3000RTXL2UHVACN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR3000RTXL2UHVACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UHVACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR3000RTXL2UHVACN.

Product Features

• Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Sine Wave OutputThe UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.
• RMCARD205 Factory InstalledA full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors, and controls CyberPower UPS systems via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
• Automatic Voltage Regulation (AVR)AVR increases or decreases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
• Battery Equalization TechnologyBattery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
• Critical Load OutletsExtend runtimes for critical devices by powering down non-critical equipment to free up battery capacity.
• Fast Charge TechnologyAllows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
• Rotatable Multifunction LCD PanelTilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
• Toolless Battery Panel AccessMakes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
• Extended Battery Modules (EBMs)Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime.
• Rack/Tower VersatilityAllows for horizontal rack or vertical tower installation.
• PowerPanel® Business SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
• Line-Interactive TopologyExists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• ENERGY STARThis model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
• GreenPower UPS™ Bypass DesignA patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Three-Year WarrantyCyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
• Connected Equipment GuaranteeCyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
