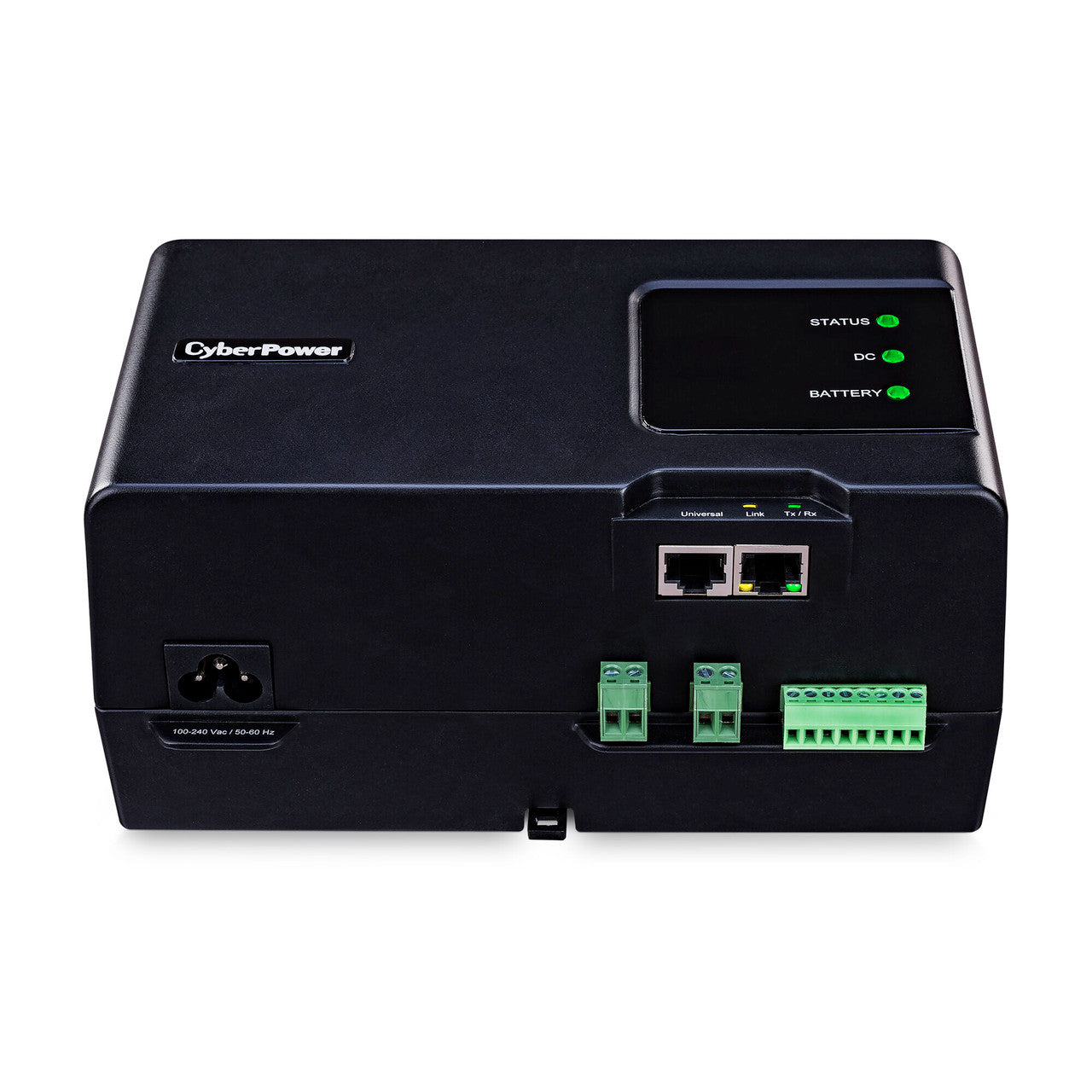

CyberPower BAS34U24V Automation DIN Mount DC UPS with 100-240Vac Input, 24Vdc Output
A DIN Rail Mount UPS with line interactive topology, the CyberPower BAS34U24V provides DC power supply, surge protection battery and backup for compact, embedded controller/server platforms, industrial computers and networking devices. Designed for building automation systems (BAS), energy management systems (EMS) and other types of facility controllers and remote facility monitors, the UPS supports distributed computing with up to 4 hours of extended battery runtime, among other industry-leading features.
The BAS34U24V comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
-
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. -
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
Two (2) 2-Pin DIN Connectors, Two (2) 8-pin DIN Connector and Sixteen (16) Cable Ties
WARNING:
This product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov.
| General | |||
|---|---|---|---|
| UPS Topology | Standby | ||
| Input | |||
| Rated Input Voltage | 100-240Vac | ||
| Minimum Input Voltage | 90Vac | ||
| Maximum Input Voltage | 264Vac | ||
| Rated Input Frequency Range | 50-60Hz | ||
| Input current @ 90Vac, full load | 1.5A | ||
| Input over current protection | 2A / 250Vac Fuse | ||
| Efficiency in Line Mode | ≥80% @ full charge | ||
| Efficiency in Battery mode | ≥80% | ||
| Power consumption with no batt/load | <2W | ||
| Charger Characteristics | |||
| Charging Voltage | 16.4Vdc | ||
| Maximum Charging Current | 350mA | ||
| Maximum Charging Time | 24 hours | ||
| Charger auto-restart | Yes, when utility power is restored | ||
| External Battery Function | Yes | ||
| Battery Characteristics | |||
| Runtime at 10W | 7 hr | ||
| Runtime at 12W | 6 hr | ||
| Runtime at 15W | 4.5 hr | ||
| Runtime at 18W | 4 hr | ||
| Runtime at Max (34W) | 2 hr | ||
| Battery type | Li-ion (18650) Rechargeable Battery | ||
| Battery Voltage | 14.8Vdc | ||
| Battery Capacity | 6500mAh | ||
| Battery Quantity | 4S2P | ||
| Low battery warning | 13.2Vdc ±3% | ||
| Battery shutdown voltage | 12.4Vdc ±3% | ||
| Transfer time | < 20ms | ||
| Battery leakage current | < 0.5mA (@End of discharging) | ||
| Battery test | Yes | ||
| External battery pack function | Yes | ||
| Protection Functionality | |||
| Output Voltage Range | 24Vdc ±3% | ||
| Rated Output Power | 8 pin Output | 24W / 1A | |
| 2 pin Output 1 | 5W / 0.21A | ||
| 2 pin Output 2 | 5W / 0.21A | ||
| Overcharging Voltage Protection | 17.5Vdc ±3% | ||
| Overload Protection | Output 1 | >1.17A | Output turn-off after, auto-recovery in 10s |
| Output 2 | >0.29A | ||
| Output 3 | >0.29A | ||
| Output short Circuit Protection | Output turn-off and auto-recovery in 10s | ||
| Output Over Voltage Protection | Line Mode | >28.8Vdc ±3% | Output & LED turn-off |
| Battery Mode | Unit Shutdown | ||
| Battery Current Protection | 5A / 250Vac fuse | ||
| Input Surge Protection Capability | 2.5kV (K.21 basic) | ||
| ESD Protection Capability | Air 8kV / Contact 4kV | ||
| Physical | |||
| Product Dimensions (HxWxD) | 7.91 x 4.72 x 3.72 | ||
| Product Weight (lb) | 2.87 | ||
| Shipping Dimensions (HxWxD) | 9.84 x 6.69 x 6.30 | ||
| Shipping Weight | 3.66 | ||
| Pallet Dimensions | 42.52 x 42.52 x 43.30 | ||
| Qty Per Pallet | 144 | ||
| Qty per Container | 6336 | ||
| Environment | |||
| Operating temperature | 32 °F – 104 °F (0 °C – 40 °C) | ||
| Storage Temperature | 32 °F – 104 °F (0 °C – 40 °C) | ||
| Max. Operation Elevation | 10000 ft (3048m) | ||
| Max. Storage Elevation | 50000 ft (15240m) | ||
| Operating Humidity | 0 – 95%, non-condensing | ||
| Safety | |||
| UL | UL60950-1 | ||
| cUL | CSA CS22.2 NO.60950-1-07 | ||
| LVD | IEC/EN 60950-1 | ||
| CB | IEC/EN 60950-1 | ||
| CE | IEC/EN 60950-1 | ||
| EMI | |||
| FCC Part 15 | Class B | ||
| CISPR 22 | Class B | ||
| Warranty | |||
| Product Warranty | 3 years | ||
| Connected Equipment Guarantee | Lifetime | ||
| CEG Amount | $500,000 | ||
