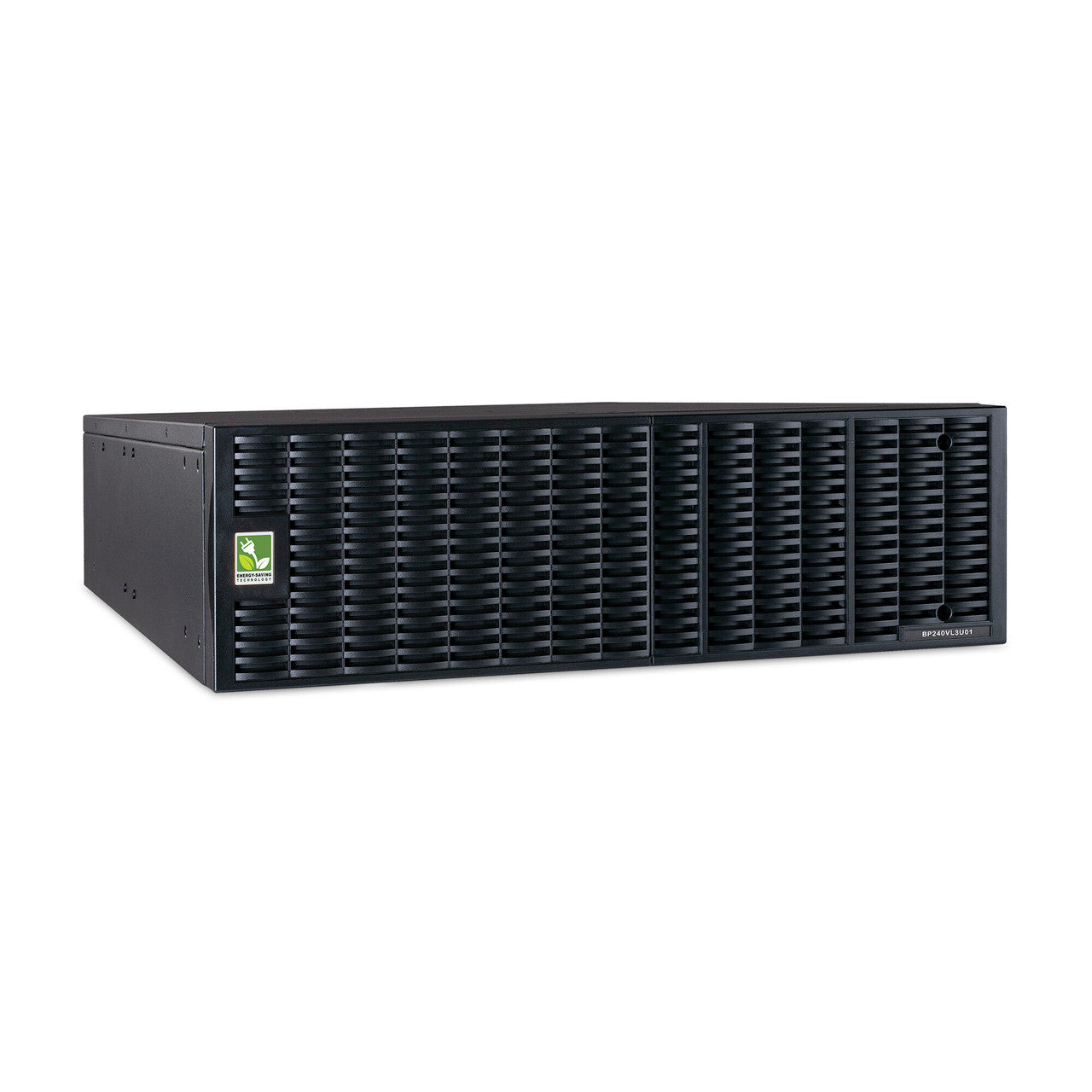

CyberPower BP240VL3U01 Extended Battery Module for Smart App Online 6-10KVA UPS Systems
The CyberPower BP240VL3U01 rack/tower convertible Extended Battery Module (EBM) extends UPS runtimes during power outages. Designed for select Smart App Online UPS systems, this EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply from 0-90% in four hours. Up to ten EBMs can be connected in a daisy-chain to the UPS. The BP240VL3U01 typically has a UPS charging time of four hours regardless of whether one or ten EBMs are installed when Fast Charge is connected. The BP240VL3U01 is compatible with OL6KRT, OL6KRTF, OL8KRT, OL8KRTF, OL10KRT, OL10KRTF, and OL10KRTHW. With a three-year warranty, you can trust CyberPower’s commitment to the quality of the BP240VL3U01.
Extended Battery Module
- Extends runtime and restores full backup power quickly with Fast Charge Technology.
Hot-Swappable Batteries
- Can be replaced without powering down vital equipment.
Fast Charge Technology
- Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
Smart Battery Management
- Uses the UPS three-cycle charging mode that improves battery life and reduces generated heat.
Plug-and-Play DC Connectors
- Allows for daisy-chaining additional EBMs to a UPS system.
Resettable AC Fast Charge Circuit Breaker
- Resets the EBM swiftly in case of an overload.
Rack/Tower Configuration
- Allows for horizontal rackmount or vertical tower installation.
Three-Year Warranty
- CyberPower will replace a defective EBM (including batteries) within three years of the purchase date. See warranty for details.
What’s In The Box
Quick Start Guide, Registration Card, Extended Battery Module, IEC320-C14 to IEC320-C13 Power Cord, Left and Right rackmount rails, Left and Right hanging brackets, 2 x 3U rackmount ears (tower stands), tower installation tie plate, 8 x M5X7L black flat head screws, 12 x M5X12L black pan head screws, 6 x M5X6L silver pan head screws, 8 x plastic washers, 14 x screw hole dust covers, 12 x rubber pads
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
Nominal Voltage | 240 V |
Current Rating | 30 A |
Battery | |
Battery Quantity | 20 |
Battery Size | 12 V/7 Ah |
Battery Type | Sealed lead acid |
Built-in Charger (Fast Charge) | Yes |
Charger Input Voltage | 200 V to 240 V |
Charger Max. Output Current | 1.5 A |
Expansion Ready (daisy-chain) | Yes |
Hot Swappable | Yes |
Replaceable | Yes |
Replacement Battery | (2) RB1270X10 |
Typical Recharge Time* | 4 h (0% to 90%) |
Physical | |
Form Factor | Rack / Tower Convertible |
Enclosure Construction | Steel |
Rack Mounting Hardware | Included |
Physical Dimensions | |
Dimensions (WxHxD, in) | 17.05 x 5.2 x 26 |
Dimensions (WxHxD, mm) | 433 x 132 x 660 |
Weight (lb) | 167.2 |
Weight (kg) | 76 |
Rack Units | 3U |
Max. Mounting Rail Depth (in) | 36.02 |
Max. Mounting Rail Depth (mm) | 915 |
Min. Mounting Rail Depth (in) | 20.47 |
Min. Mounting Rail Depth (mm) | 520 |
Shipping Dimensions | |
Dimensions (WxHxD, in) | 23.62 x 14.76 x 35.43 |
Dimensions (WxHxD, mm) | 600 x 375 x 900 |
Weight (lb) | 204.6 |
Weight (kg) | 92.8 |
Environmental | |
Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
Operating Relative Humidity | 0% to 90% non-condensing |
Operating Elevation | 0 ft to 10,000 ft (0 m to 3,000 m) |
Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
Storage Relative Humidity | 0% to 95% non-condensing |
Storage Elevation | 0 ft to 50,000 ft (0 to 15,000 m) |
Compatibility | |
UPS Models | OL6KRT OL6KRTF OL8KRT OL8KRTF OL10KRT OL10KRTF OL10KRTHW |
Certifications | |
Safety | UL 1778 CSA C22.2 NO.107.3-05 FCC Part 15 Class A |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Extended 2-Year Warranty | WEXT5YR-BP5 |
