CyberPower
CyberPower BPL48V75ART2U Extended Battery Pack for PR5000LCDRTXL5U, PR6000LCDRTXL5U

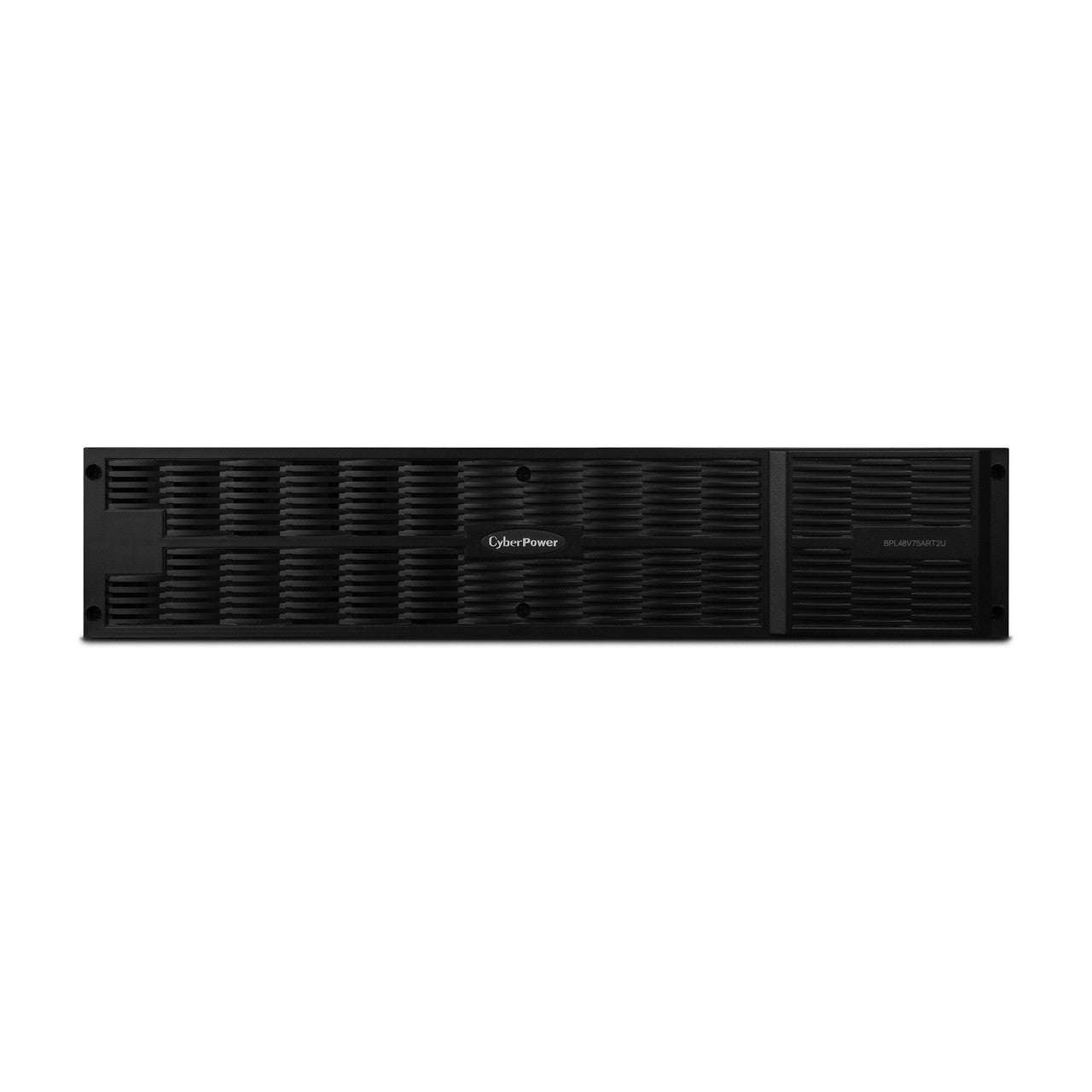

The CyberPower BPL48V75ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Sinewave UPS systems PR3000LCDRTXL2U*, PR5000LCDRTXL5U, and PR6000LCDRTXL5U. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. The BPL48V75ART2U typically has a UPS charging time of eight hours. It comes with a three-year warranty.
*The BPL48V75ART2U is compatible with the PR3000LCDRTXL2U standard with a blue and white LCD. The current PR3000LCDRTXL2U, standard with a black and white LCD, uses the BP48V75ART2U battery pack.
-
Extended Battery Module
Expands runtime and quickly restores full backup power with Fast Charge Technology. -
Smart Battery Management
Uses a three-cycle charging mode that improves battery life and reduces generated heat. -
Hot-Swappable Batteries
Can be replaced without powering down vital equipment. -
Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation. -
Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box
(2) Rack mount brackets, (2) Skids, (2) Expansion pieces for mounting stabilizers (plastic
stands for PR3000LCDRTXL2U/ PR3000ELCDRTXL2U UPS), (2) Metal plates to fasten 5U
UPS, (2) Power cords, Register card, User’s manual
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
Voltage | 48V |
Amperage | 75A |
Battery | |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/9Ah |
Hot-Swappable | Yes |
Battery Quantity | 12 |
User Replaceable | Yes |
Typical Recharge Time | 8 hours |
Built-in Charger | Yes |
Replacement Battery | BB Battery – HR9-12 |
Interface | PP75 |
Physical | |
Rack Size | 2U |
Dimensions – W×H×D (in) | 17.25 × 3.5 × 23.6 inches |
Weight (lbs) | 96.0 lbs |
Environmental | |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Operating Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Certifications | |
Safety | UL1778 cUL FCC DOC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
