CyberPower

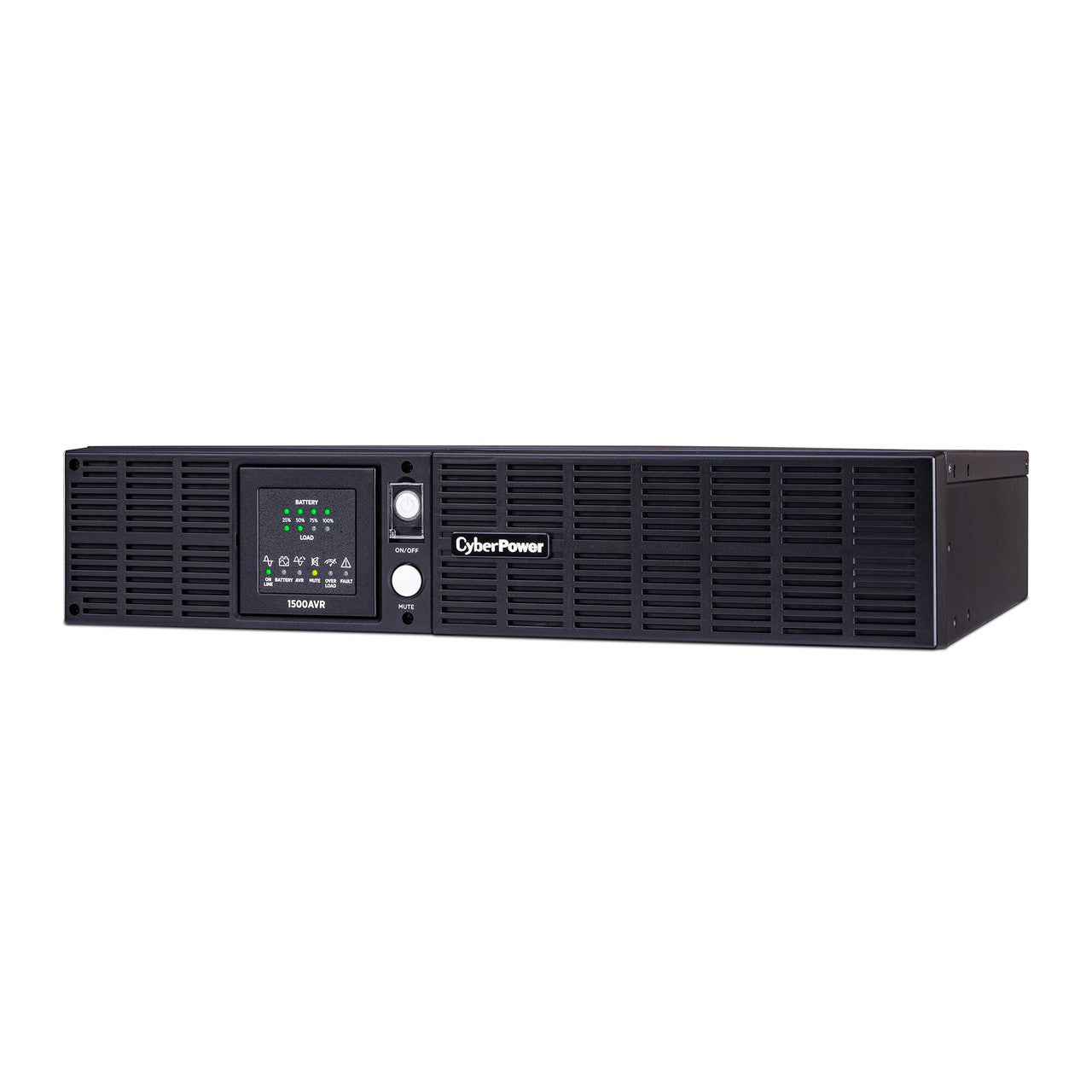

CyberPower CPS1500AVR CyberPower 1500VA/900W Line-Interactive Rackmount UPS 8 Outlets
A rack/tower UPS with line interactive topology, the CyberPower Smart App CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
-
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics. -
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. -
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. -
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations. -
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output. -
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation. -
LED Status Lights
Indicate Power On, Wiring Fault. -
PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here. -
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. -
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
(a) UPS unit, User manual, Rack mount brackets, Telephone cable, PowerPanel® Business Edition software Download Card, Serial interface cable (DB-9), USB A+B type cable, Warranty registration card.
PowerPanel Business software download available here.
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
Input | |
Voltage | Nominal 120V |
Input voltage range | 90Vac – 140Vac |
Frequency | 47-63 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length (FT) | 10 ft |
Output | |
VA | 1500 |
Watts | 900 |
Automatic Voltage Regulation | Yes – Single Boost (11.5%) |
On Battery Voltage | 120Vac ± 10% |
On Battery Frequency | 50/60Hz ± 1% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | NEMA 5-15R |
Outlets – Total | 8 |
Outlets – Battery & Surge Protected | 8 |
Overload Protection | Internal circuitry limiting / circuit breaker |
Transfer Time | 4 ms |
Battery | |
Runtime at Half Load | 18 minutes |
Runtime at Full Load | 7 minutes |
Battery Voltage | 12V |
Battery Capacity | 7Ah |
User Replaceable | Yes |
Hot Swappable | Yes |
Typical Recharge Time | 8 hours |
Replacement Battery | RB1270X4F RB1270X4E (With serial numbers beginning with ‘BB’) |
Battery Quantity | 4 |
Surge Protection & Filtering | |
Surge Suppression | 1,840 J |
EMI/RFI Filtering | Yes |
RJ11/RJ45 | 1-In, 1-Out (Combo 10/100) |
Coax Protection | 1-In, 1-Out |
Management & Communications | |
LCD Interface | No |
HID Compliant USB Port | Yes |
Serial Port | Yes (2x) (Dry Contact) |
LED Indicators | Load Level Battery Level Power On Online Using Battery Replace Battery AVR Mute Overload Fault Wiring Fault |
Audible Alarms | On Battery Low Battery Overload |
Battery Missing, Fault | |
Software (Free Download) | PowerPanel Business Edition |
SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
Physical | |
Form Factor | Rack/Tower |
Dimensions (WxHxD) (inch) | 17.25 × 3.50 × 15.75 |
Weight (lb) | 50.50 |
Shipping Dimensions (WxHxD) (inch) | 21.34 × 11.81 × 20.47 |
Shipping Weight (lb) | 53.70 |
Environmental | |
Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
Operating Relative Humidity | 0% – 90% (non-condensing) |
Operating Elevation | 10,000 ft / 3,000 m |
Storage Temperature | 5°F to 113°F / -15°C to 45 °C |
Storage Relative Humidity | 0% – 95% non-condensing |
Storage Elevation | 50,000 ft / 15,000 m |
Certifications | |
Safety | UL1778, cUL 107.1, FCC Cl B |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $300,000 |
