CyberPower

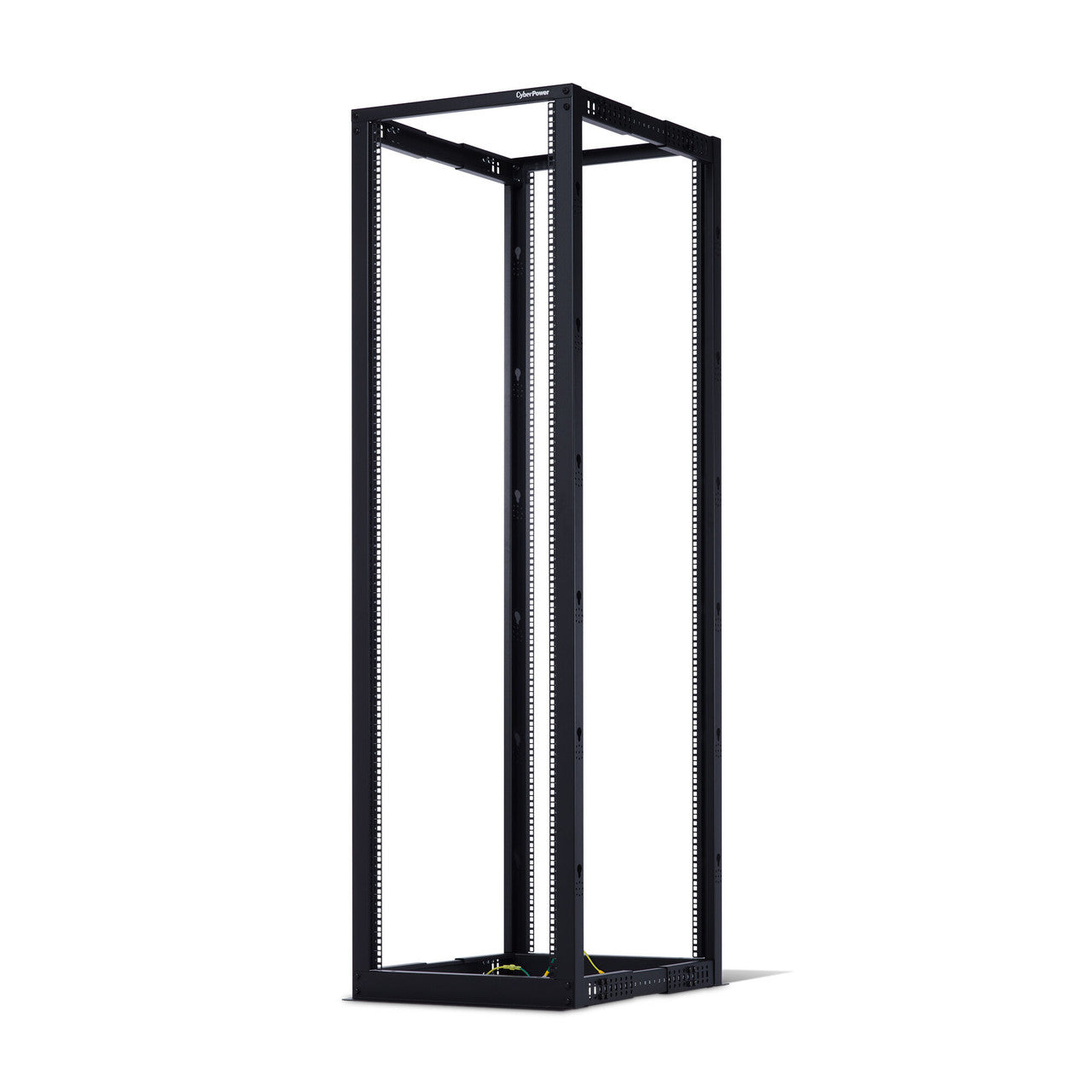

CyberPower CR45U40001 45U 19" 4-post Open Frame Rack, 600mm wide, 22"-40" depth adjustable
Quantity:
The CR45U40001 4-post rack can be customized with compatible accessories to meet specific requirements. The rack ships knock-down; assembly is required. It is covered by a 5-year limited warranty.
-
Rack Mounting Compatibility
The CR45U40001 is compatible with all EIA-310 compliant 19″ equipment. -
Adjustable Rack Angles
Vertical rack angles can be adjusted in 1″ increments for mounting depth requirements from 22 to 40 inches. Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation. -
Designed for Full Loading Stability
High-precision frame design and heavy gauge mounting rails provide a static load rating of 1,763 lbs. -
Integrated Electrical Grounding
Connections are located on the frame for facility grounding.
What’s In The Box
Knock down open frame rack (for assembly), User Manual, M6 cage nuts and screws, Cable Rings, Leveling Feet, Grounding Cables
| Physical | |
|---|---|
| Rack Height | 45U |
| Color | Black RAL 9005 powder coat paint |
| Rack Angle Mounting Hole Type | Square Mounting Holes |
| Number of posts | 4 |
| Weight Capacity – stationary load (lbs) | 1760 |
| Weight Capacity – stationary load (kg) | 800 |
| Max. Mounting Depth (in) | 40.0 |
| Max. Mounting Depth (mm) | 1016.0 |
| Min. Mounting Depth (in) | 22.0 |
| Min. Mounting Depth (mm) | 558.8 |
| Max. Dimensions (WxHxD in) | 23.6 x 82.8 x 41 |
| Max. Dimensions (WxHxD mm) | 600 x 2104 x 1049 |
| Min. Dimensions – WxHxD (in) | 23.6 x 82.8 x 23.5 |
| Min. Dimensions – WxHxD (mm) | 600 x 2104 x 592 |
| Net Weight (lbs) | 79.5 |
| Net Weight (kg) | 36.1 |
| Shipping Packaging Type | Knock down |
| Shipping Dimensions (WxHxD) (in) | 10.0 x 5.9 x 86.2 |
| Shipping Dimensions (WxHxD) (mm) | 25.5 x 15.0 x 219.0 |
| Shipping Weight (lbs) | 87 |
| Shipping Weight (kg) | 39.4 |
| Special Features | |
| Numbered Rack Units | Yes |
| Leveling Feet | Included |
| Rolling Casters | Optional |
| Cable Management | Toolless Mounting Slots and Cable Rings Included |
| PE Grounding Point | Yes |
| Certifications | |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC-60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 5 Years Limited |
