CyberPower

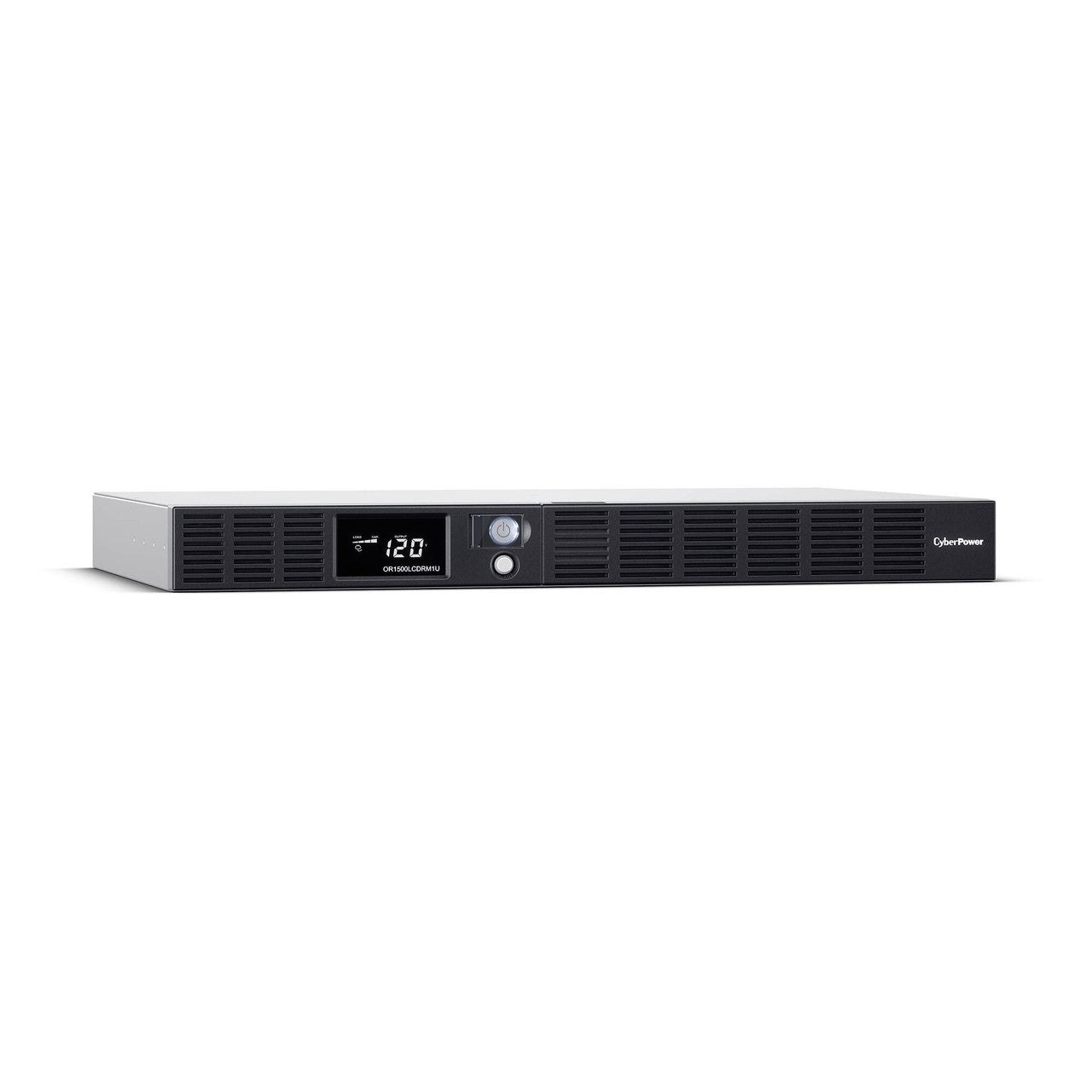

CyberPower OR1500LCDRM1U 1500VA/900W 1U Rackmount UPS, 6 NEMA 5-15R Outlets, NEMA 5-15P Plug
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Automatic Voltage Regulation (AVR)
- AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
Multifunction LCD Screen
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Data Line Protection
- Prevents power surges that travel through Ethernet lines from causing damage to electronics.
PowerPanel® Business
- Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
Simulated Sine Wave Output
- Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
ENERGY STAR
- This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
GreenPower UPS™ Bypass Design
- A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Three-Year Warranty
- CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
WARNING:
This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
Energy Saving | GreenPower UPS™ Bypass Technology |
Energy Star Certified | Yes |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 4 |
Battery Size | 6 V / 9 Ah |
Battery Type | Sealed Lead-Acid Battery |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB0690X4 |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 2 min |
Runtime at Half Load | 11 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | Yes |
Input | |
Adjustable Voltage Range | 88 – 144 VAC |
Circuit Breaker | 15 A |
Cord Length | 10 ft (3.0 m) |
Input Frequency Range | 57 Hz – 63 Hz |
Input Plug Type | NEMA 5-15P |
Input Voltage Range | 90 VAC – 140 VAC |
Nominal Input Voltage | 120 VAC |
Plug Style | Straight |
Output | |
Automatic Voltage Regulation | Single Boost |
On Battery Frequency | 60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 10% |
On Battery Waveform | Simulated Sine Wave |
Outlet Type | 6 – NEMA 5-15R |
Outlets – Battery & Surge Protected | 4 |
Outlets – Surge-Only Protected | 2 |
Outlets – Total | 6 |
Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
Typical Transfer Time | 8 ms |
USB Charge Port | No |
USB Charge Port Amperage | None |
VA | 1500 VA |
Watts | 900 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
Surge Suppression (Joules) | 1150 J |
Management & Communications | |
Audible Alarms | Battery Mode Low Battery Overload Fault |
HID Compliant USB Port | Yes |
LCD | Multifunction LCD |
LED Indicators | Power On Wiring Fault |
Management Cable | USB Cable |
SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
Serial Port | 1 Dry Contact |
Software (Free Download) | PowerPanel® Business |
Physical | |
Color | Black |
Form Factor | Rackmount |
Material of Construction | Metal |
Rack Height | 1U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.45 x 39.62 (cm) |
Physical Dimensions – (WxHxD) (in) | 17.05 x 1.75 x 15.60 (in) |
Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 396 (mm) |
Physical Weight (kg) | 14.97 |
Physical Weight (lb) | 33 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 10.77 |
Shipping – Weight (lb) | 23.75 |
Shipping Dimensions – (WxHxD) (cm) | 54.61 x 15.88 x 60.33 (cm) |
Shipping Dimensions – (WxHxD) (in) | 21.5 x 6.25 x 23.75 (in) |
Shipping Dimensions – (WxHxD) (mm) | 546.1 x 158.75 x 603.25 (mm) |
Environmental | |
Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
Operating Relative Humidity | 0 – 95 % (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
Storage Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL1778 cUL 107.1 FCC DOC Class B |
Warranty | |
CEG Amount | $300000 |
Connected Equipment Guarantee | Lifetime |
Extended Warranty Option | WEXT5YR-U2A |
Product Warranty | 3 Year Limited Warranty |
