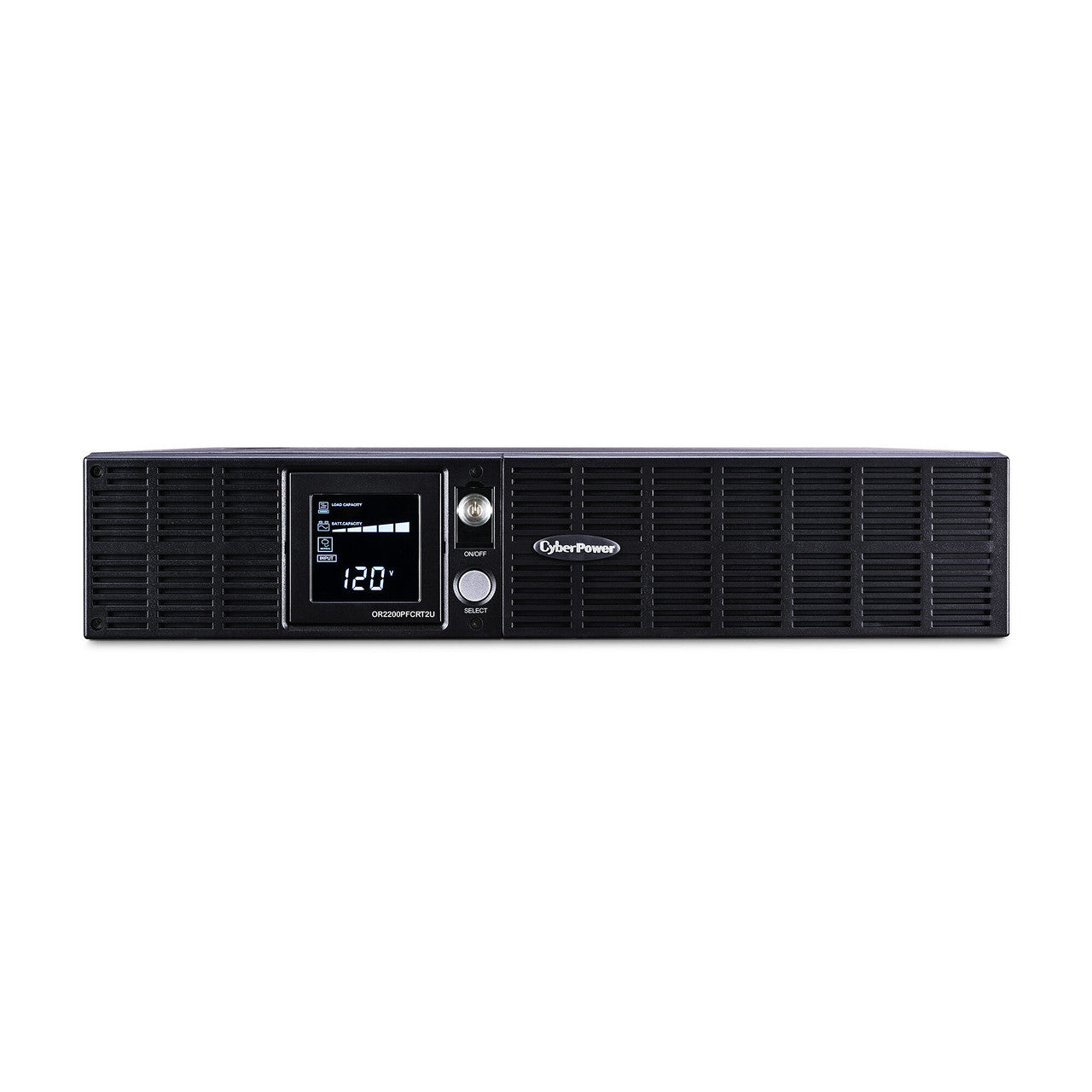

CyberPower OR2200PFCRT2U 2000VA/1540W Rack/Tower UPS with 8 outlets Sine Wave output AVR and LCD
A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
-
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. -
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. -
Data Line Protection
Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics. -
Line Interactive Topology
Exists when a line interactive UPS has an auto-transformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. -
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations. -
Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies. -
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. -
Rotatable Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower. -
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment. -
PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.
-
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. -
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
UPS System, User Manual, Rackmount Brackets x 2, Vertical Stands x 2, Telephone Cable, Emergency Power Off Cable (gray), PowerPanel Business Edition Software CD, USB A+B Type Cable, Warranty Registration Card
PowerPanel Business software download available here.
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
Input | |
Voltage | 120 VAC |
Input Voltage Range | 88 – 139 VAC |
Adjustable Voltage Range | 86 – 142 VAC |
Frequency Range | 60 Hz ± 3 Hz |
Plug Type | NEMA 5-20P |
Plug Style | Right Angle |
Cord Length | 10 ft |
Output | |
VA | 2,000 VA |
Watts | 1,540 W |
On Battery Voltage | 120 VAC ± 5% |
On Battery Frequency | 60 Hz ± 1% |
On Battery Waveform | Sine Wave |
Output Power Factor | 0.77 |
Automatic Voltage Regulation (AVR) | Yes, +14% |
Outlet Type | (2) NEMA 5-20R, (6) NEMA 5-15R |
Outlets – Total | 8 |
Outlets – Battery & Surge Protected | 8 |
Overload Protection | Internal Circuitry Limiting |
Transfer Time | 4 ms |
Battery | |
Runtime at Half Load | 15.5 minutes |
Runtime at Full Load | 4.5 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/9Ah |
Battery Quantity | 4 |
Battery Voltage | 24V |
Hot-Swappable | Yes |
User Replaceable | Yes |
Typical Recharge Time | 10 hours |
Replacement Battery Cartridge | RB1290X4H (With serial numbers beginning with ‘GX9’) RB1290X4C (With serial numbers beginning with ‘GAM’ or ‘GAR’) |
Replacement Battery Cartridge Quantity | 1 |
Surge Protection & Filtering | |
Surge Suppression | 1,470 J |
Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (10/100) |
EMI/RFI Filtration | Yes |
Management & Communications | |
Multifunction LCD Panel | Yes |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
Cables Included | USB Cable |
LED Indicators | Power On
Wiring Fault |
Audible Alarms | On Battery
Low Battery Overload |
Software | PowerPanel® Business Edition |
Remote Management Card | None |
Physical | |
Form Factor | Rack/Tower |
Rack Size | 2U |
Dimensions – W×H×D (in) | 17.01 × 3.5 × 15.32 inches |
Weight (lbs) | 57.2 lbs |
Environmental | |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Operating Humidity | 0 – 90% (non-condensing) |
Maximum Operating Elevation | 0 – 10000 feet (0 – 3000 meters) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Storage Humidity | 0 – 95% (non-condensing) |
Maximum Storage Elevation | 0 – 50000 feet (0 – 15000 meters) |
Audible Noise @ 1.5m | 48.5 dBA |
On Line Thermal Dissipation | 177.5 BTU/hr |
On Battery Thermal Dissipation | 1278 BTU/hr |
Certifications | |
Safety | UL 5th
cUL FCC Class A |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $300,000 |
