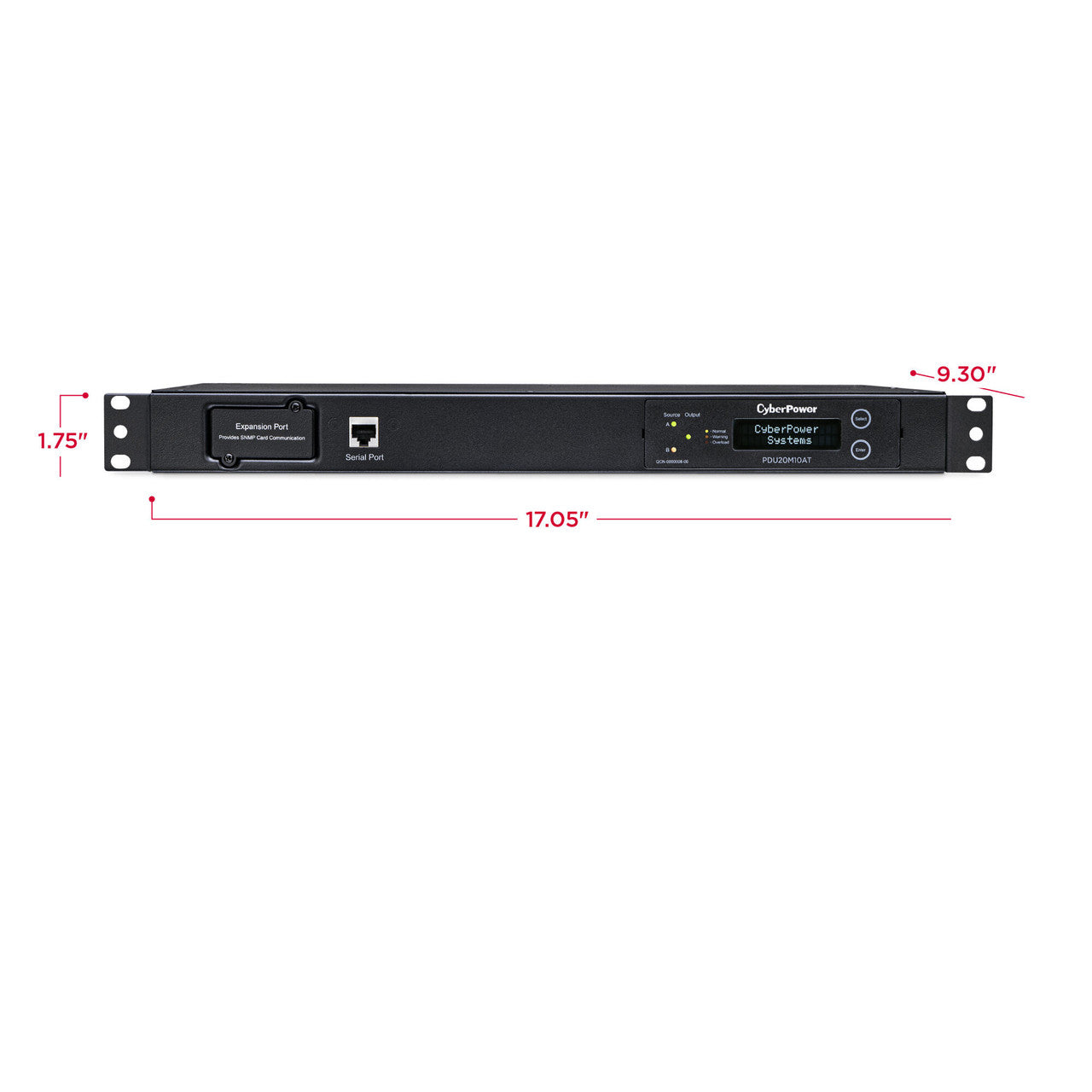

CyberPower PDU20MT10AT 20A (Derated to 16A), 100 - 120 V, 2 x NEMA 5-20P plug, 10 NEMA 5-20R

The CyberPower PDU20MT10AT, a 10-outlet (rear) rackmount metered auto transfer switch (ATS) power distribution unit (PDU), provides 100-120V / 20A output. The PDU distributes unfiltered electrical pass-through to 10 NEMA 5-20R receptacles from redundant NEMA L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.

The LCD provides local monitoring of the PDU. Perform load management by using the display to measure the electrical current (displayed in amperes) used by connected equipment. The LCD can also display input and output voltages, to diagnose potential issues with input AC power. Active power consumption (displayed in kilowatts) and hardware and firmware versions are also viewable on the LCD screen.

Designed for datacenters and other electrically demanding applications, the PDU20MT10AT has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically. The PDU20MT10AT comes with a cord retention tray and is UL and CSA certified by ETL. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.

Power Distribution

• Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Automatic Transfer Switch

• Dual power cords (A & B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources* to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source.
• *Note: Only sine wave AC power sources are compatible with this ATS PDU. Simulated sine wave AC power sources are NOT compatible.

LCD Screen

• Provides real-time meter status for current (amperes), input and output voltages, power consumptions (kilowatts), and hardware/firmware versions.

Upgradeable Hardware & LCD Firmware

• Are updatable to the latest versions by using the serial communication port and included cable.

Serial Communication Port & Cable

• Used to update/upgrade the hardware and LCD firmware.

SNMP/HTTP Card Slot

• Accepts an RMCARD205 (sold separately), providing remote monitoring, reporting, and event notifications, via Email, SMS Text, or SNMP Trap.

Protocol Support

• With installation of an RMCARD205 (sold separately), the metered ATS PDU provides protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP, and SNMP including SNMPv3, IPv4, IPv6, NTP, SMTP protocols.

Network-Grade Plugs and Outlets

• Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Rackmounting Brackets

• Allow for 1U horizontal rack installation.

Cord Retention Tray

• Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Three-Year Limited Warranty

• Covers the PDU for three years and connected equipment for as long as you own the product. See warranty for details.

What’s In The Box

ATS PDU, 2 Mounting Brackets, 24 M4x8 Bracket Mounting Screws, 6 M5x12 Rack Mounting Screws, 6 Washers, Cord Retention Tray, 2 M3x4 Cord Retention Tray Mounting Screws, 18 Cable Ties, RJ45/D0B9 Serial Port Connection Cable, User Manual, Registration Card
