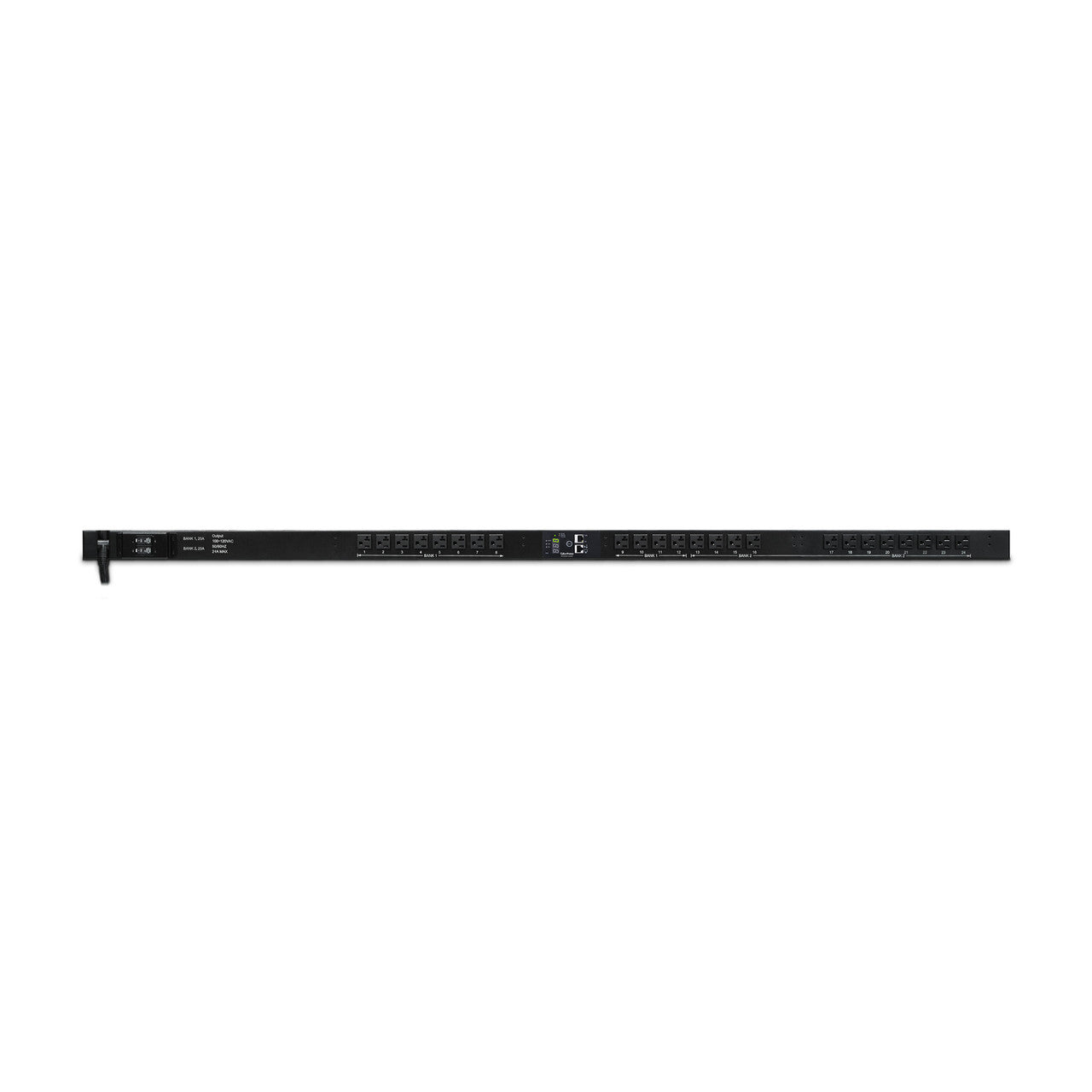

CyberPower PDU30MVT24FNET 30A (Derated to 24A), 100 - 120 V, 50Hz/60Hz, NEMA L5-30P plug

The CyberPower PDU30MVT24FNET, a 24-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally using the LCD. The PDU30MVT24FNET comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Power Distribution

• Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

• Safeguards against accidental power shutdown.

CyberPower Management Console

• Built into Monitored PDUs, a CyberPower Management Console is a hardware interface. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring

• Enables offsite and onsite tracking of PDU vitals.

Automatic Event Notifications

• Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

• Downloadable improvements (firmware updates) to programs that run the PDU.

Digital Display

• Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

• Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

• Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Twist Lock Plug

• Secures an outlet by twisting and locking into place to prevent accidental disconnection.

Cord Retention Tray

• Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets

• Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

• Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty

• Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What’s In The Box

PDU, 2 Mounting Brackets, 6 Flat Head M4x4 Bracket Mounting Screws, 3 Cord Retention Trays, 30 Cable Ties, 14 M3x6 Cord Retention Tray Mounting Screws, 6 M5x12 Screws, 6 Washers, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card, CD, 2 Keyhole Mounting Pegs, 4 M4x5 Screws
