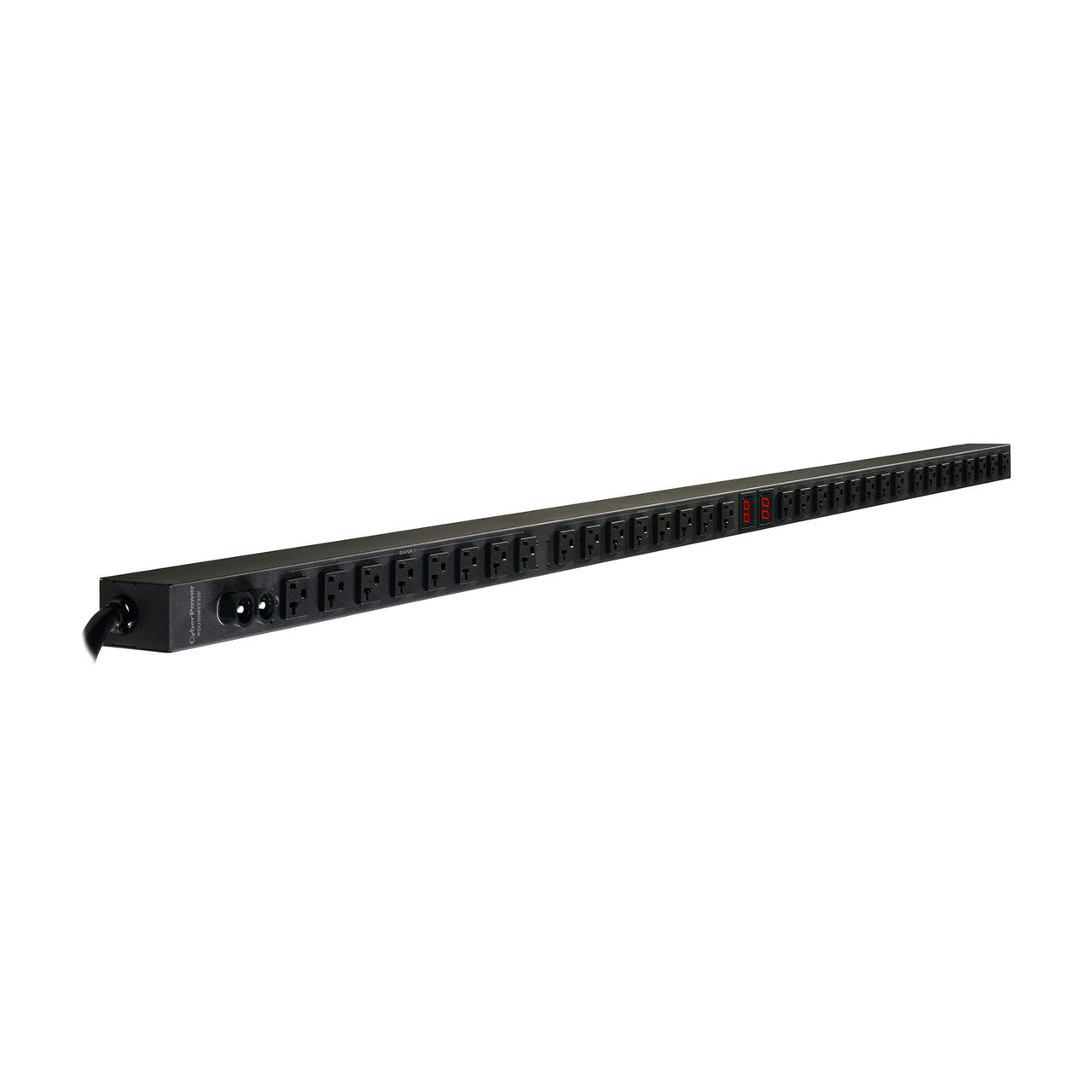

CyberPower PDU30MVT32F 30A (Derated to 24A), 120 V, 50Hz/60Hz, NEMA L5-30P plug, 32 NEMA 5-20R

The CyberPower PDU30MVT32F, a 32-outlet (front), 0U vertical rackmount metered power distribution unit (PDU), provides 100 – 125 V 30A output. It distributes power to 32 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring.

Designed for datacenters and other electrically demanding applications, the PDU30MVT32F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation. The PDU30MVT32F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution

• Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

• Safeguards against accidental power shutdown.

Network-Grade Plugs and Outlets

• Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

• Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Twist Lock Plug

• Secures an outlet by twisting and locking into place to prevent accidental disconnection.

Cord Retention Tray

• Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets

• Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

• Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Limited Lifetime Warranty

• Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

What’s In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
