CyberPower PDU30SWT17ATNET 30A (Derated to 24A), 100 V - 120 V, 50/60Hz, 2U Rackmount, 3 year warranty

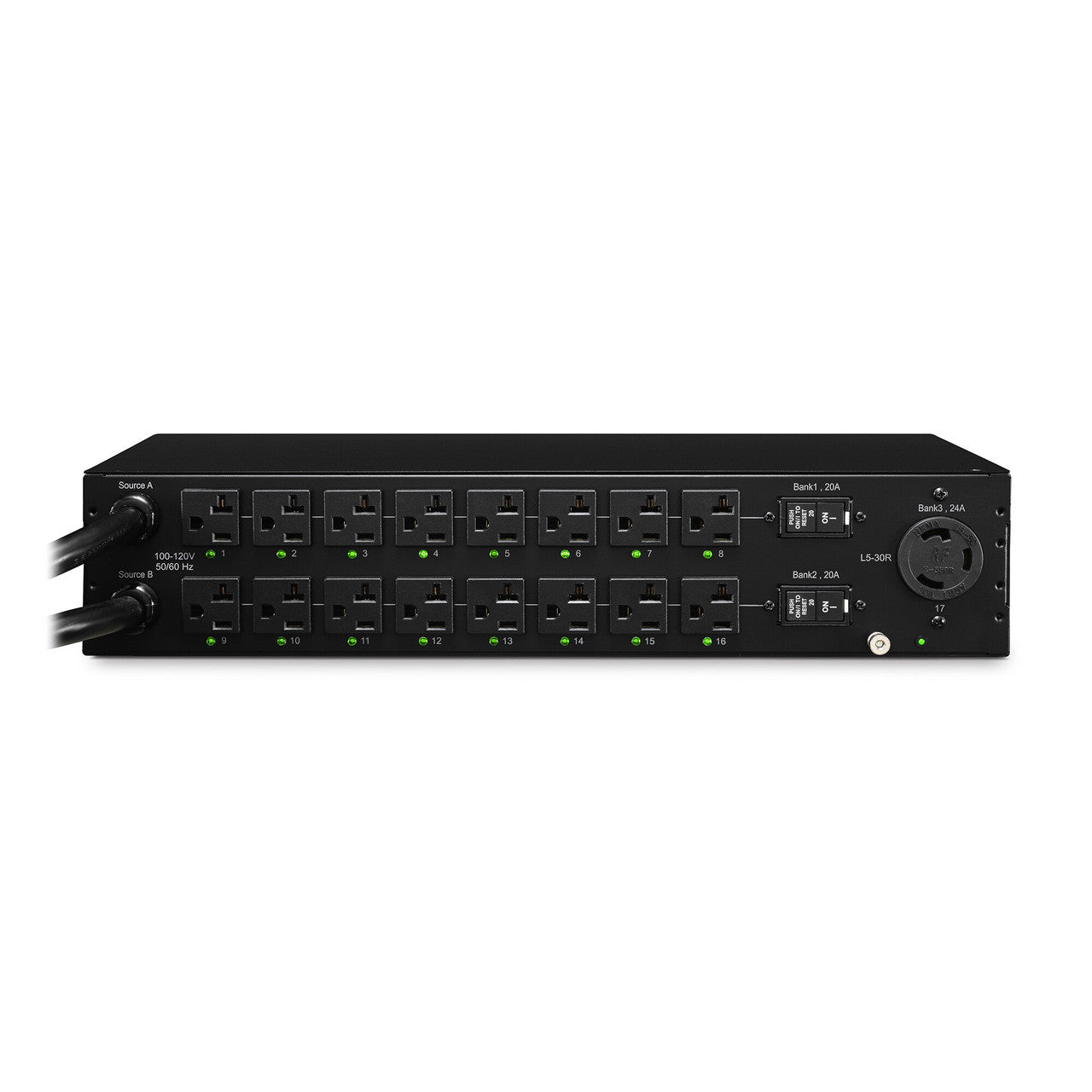

The CyberPower PDU30SWT17ATNET, a 17-outlet (rear), 2U rackmount switched automatic transfer switch (ATS) power distribution unit (PDU), provides 100-120V 30A output. It distributes unfiltered electrical pass-through to to 17 receptacles--16 NEMA 5-20R and 1 NEMA L5-30R receptacles--from redundant NEMA L5-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The PDU30SWT17ATNET includes a SNMP/HTTP card (RMCARD203). With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the PDU. The switched outlet receptacles can be managed individually or collectively. The LCD panel provides local monitoring of the PDU and on/off control for the outlets. It can also be used to measure the electrical current (displayed in amperes) used by connected equipment. The LCD panel also shows input and output voltages, active power consumption levels (displayed in kilowatts), and hardware and firmware versions.
Designed for datacenters and other demanding electrical applications, the PDU30SWT17ATNET has rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL and CSA certified by ETL, and Class A FCC-certified. A three-year warranty covers the PDU and connected equipment for as long as you own the product.
Power Distribution
- Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Outlet Switching
- Output receptacles can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs, including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
Automatic Transfer Switch
- Dual power cords (A & B) provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources* to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source.
- *Note: Only sine wave AC power sources are compatible with this ATS PDU. Simulated sine wave AC power sources are NOT compatible.
LCD Panel
- Provides real-time meter status for current (amperes), input and output voltages, power consumptions (kilowatts), and hardware/firmware versions.
Upgradeable Hardware & LCD Firmware
- Are updatable to the latest versions by using the serial communication port and included cable.
Serial Communication Port & Cable
- Used to update/upgrade the hardware and LCD firmware.
Environmental Sensor Option
- Supports optional environment sensor (ENVIROSENSOR).
SNMP/HTTP Card
- Included and installed, RMCARD203 provides outlet control, remote monitoring, reporting, and event notifications, via Email, SMS Text, or SNMP Trap. RMCARD203 firmware is upgradeable with FTP process.
Protocol Support
- This Switched ATS PDU provides protocol support for PowerPanel Business Edition, HTTP, TCP/IP, UDP, DHCP, and SNMP including SNMPv3, and IPv4, IPv6, NTP, SMTP protocols.
Administrative Rights
- Administrator and user rights can be established to provide IT personnel with access to the Management Console via a web browser to monitor and/or manage the PDU settings.
Switchless Design
- Designed without a power switch and circuit breaker (on most models) to prevent accidental power interruptions.
Network-Grade Plugs and Outlets
- Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Rackmounting Brackets
- Allow for 2U horizontal rack installation.
Cord Retention Brackets
- Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Three-Year Limited Warranty
- Covers the PDU for three years and connected equipment for as long as you own the product. See warranty for details.
What’s In The Box
ATS PDU, 2 Mounting Brackets, 24 M4x8 Bracket Mounting Screws, 6 M5x12 Rack Mounting Screws, 6 Washers, 2 Cord Retention Trays, 4 M3x4 Cord Retention Tray Mounting Screws, 30 Cable Ties, RJ45/DB9 Serial Port Connection Cable, Jumper, User Manual, Registration Card, CD
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
Input | |
---|---|
Nominal Input Voltage | 100 – 120 VAC |
Frequency | 50/60 Hz |
Maximum Current | 30A (Derated to 24A) |
On/Off Switch | No |
Plug Type | 2 × NEMA L5-30P |
Plug Style | Straight, Twist Lock |
Cord Length | 10 ft |
Output | |
Nominal Output Voltage | 100 – 120 VAC |
Outlet Banks | 2 |
Outlets – Total | 17 |
Outlets – Front | 0 |
Outlets – Rear | 17 |
Outlet Type | NEMA 5-20R (16), NEMA L5-30R (1) |
LCD Readout | KW Voltage Amperage Network Information HW/FW Version |
LED Indicators | Input Output Load Tx/Rx LINK Outlets |
Communication | |
SNMP / HTTP Remote Monitoring | RMCARD203 (Installed) RMCARD205 (sold separately) |
Protocols | TCP/IP UDP DHCP SNMP HTTP |
Connectivity | Network Environmental Sensor Serial |
Physical | |
Dimensions – H×W×D (in) | 17.05 x 3.5 x 9.30 inches |
Rack Size | 2U |
Weight (lbs) | 16.53 lbs |
Style | Rackmount |
Form Factors Supported | 2U rackmount |
Cord Retention Tray/Cord Organizers | Yes |
Adjustable Mounting Brackets | 1 set |
External Site Ground Pin | Yes |
Environmental | |
Operating Temperature | 32 – 113 °F (0 – 45°C) |
Operating Humidity | 0 – 95% (non-condensing) |
Maximum Operating Elevation | 13,100 ft (4,000 m) |
Storage Temperature | 5 – 113 °F (-15 – 45°C) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Thermal Dissipation | 61 BTU/hr |
Certifications | |
Safety | UL60950_1 certified by ETL CSA C22.2 FCC Class A |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 year |
