CyberPower PDU31001 Monitored PDU 15A 120V (8) 5-15R Outlets NEMA 5-15P 12ft Cord SNMP 1U 3YR WTY
CyberPower PDU31001 Monitored PDU 15A 120V (8) 5-15R Outlets NEMA 5-15P 12ft Cord SNMP 1U 3YR WTY
CyberPower PDU31001 Monitored PDU 15A 120V (8) 5-15R Outlets NEMA 5-15P 12ft Cord SNMP 1U 3YR WTY
CyberPower PDU31001 Monitored PDU 15A 120V (8) 5-15R Outlets NEMA 5-15P 12ft Cord SNMP 1U 3YR WTY

CyberPower

CyberPower PDU31001 Monitored PDU 15A 120V (8) 5-15R Outlets NEMA 5-15P 12ft Cord SNMP 1U 3YR WTY

Sale price$499.00
SKU: PDU31001
Quantity:

Contact

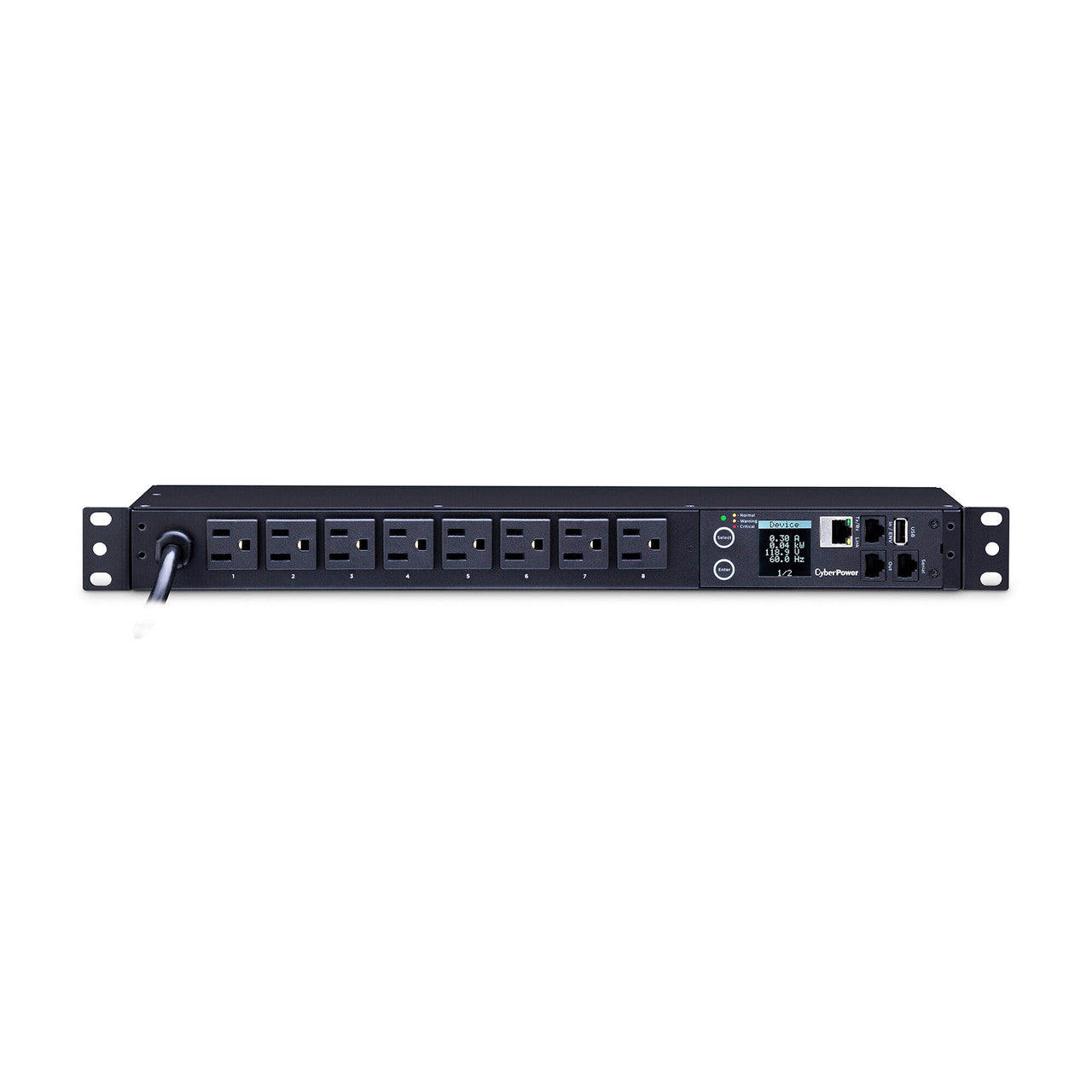

The CyberPower PDU31001, an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU) provides 120V 15A output. PDU31001 distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.

The PDU31001 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

Power Distribution

  • Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

  • Safeguards against accidental power shut down.

CyberPower Management Console

  • A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.

Remote and Local Monitoring

  • Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.

Automatic Event Notifications

  • Provides immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

  • Downloadable firmware updates to improve programs that run the PDU.

Digital Display

  • Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

  • Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.

Long Input Power Cord

  • The PDU is able to be placed where it’s needed because it reaches distant power sources.

Cord Retention Tray

  • Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Mounting Brackets

  • Design allows PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.

Durable Metal Housing

  • Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty

  • Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, 2 Short mounting Brackets, 2 Long Mounting Brackets, 12 M4 x 8 screws, 6 M5x12 Screws/Washers, Cord Retention Tray, 6 M3x6 screws, Cable Ties, RJ45/DB9 Serial Cable, User’s Manual, Registration and Download Cards


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Type Monitored
Phase Single Phase
Input
Voltage 100 – 120Vac
Frequency 50Hz/60Hz
Maximum Input Current 15A (Derated to 12A)
Plug Type NEMA 5-15P
Plug Style Straight
Cord Length (ft.) 12
Cord Length (m) 3.7
Output
Nominal Output Voltage 100 – 120Vac
Overload Protection (Each Bank) None
Outlets – # of Banks 1
Outlets – Total 8
Outlets – Front 8
Outlets – Rear 0
Outlet Type NEMA 5-15R
Meter Readout Power Control Display
LED Indicators Tx/Rx
LINK
Normal/Warning/Critial Status
Management & Communications
Outlet switching No
SNMP / HTTP Remote Monitoring IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD
Network Connection RJ45 (Ethernet)
RJ45 (COM Port)
Environmental Sensor Optional, via RJ45
Updateable firmware Yes, via USB or Ethernet
Multifunction LCD Screen Voltage
Frequency
Load
Current
HW/FW Version
Network information
Physical
Standard Form Factor 1U Rackmount
Form Factors Supported Vertical or horizontal mounting supported in wallmount applications,
racks and a variety of other surface types
Style Horizontal Rackmount
Wallmount
Enclosure Construction Steel
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Adjustable Mounting Brackets 1 set
Physical Size
Dimensions (WxHxD) (in.) 17.05 x 1.75 x 4.41
Weight (lbs.) 5.3
Installed Rack Height 1U
Shipping Dimensions
Dimensions (WxHxD) (in.) 19.7 x 2.6 x 9.8
Weight (lbs.) 7.7
Environmental
Operating Temperature 32°F – 131°F (0°C – 55°C)
Operating Humidity 0% – 95% non-condensing
Maximum Operating Elevation 11480 ft (3,500 m)
Certifications
Safety UL 60950-1
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years
Ext Warranty WEXT5YR-PDU1A
