CyberPower PDU31101 MONITORED PDU, 20A (DERATED TO 16A), 100-120V, 50/60 HZ, 24 x NEMA 5-20R OUTLETS

This PDU has been Discontinued with no replacement product identified. Call us for assistance in finding an alternative.

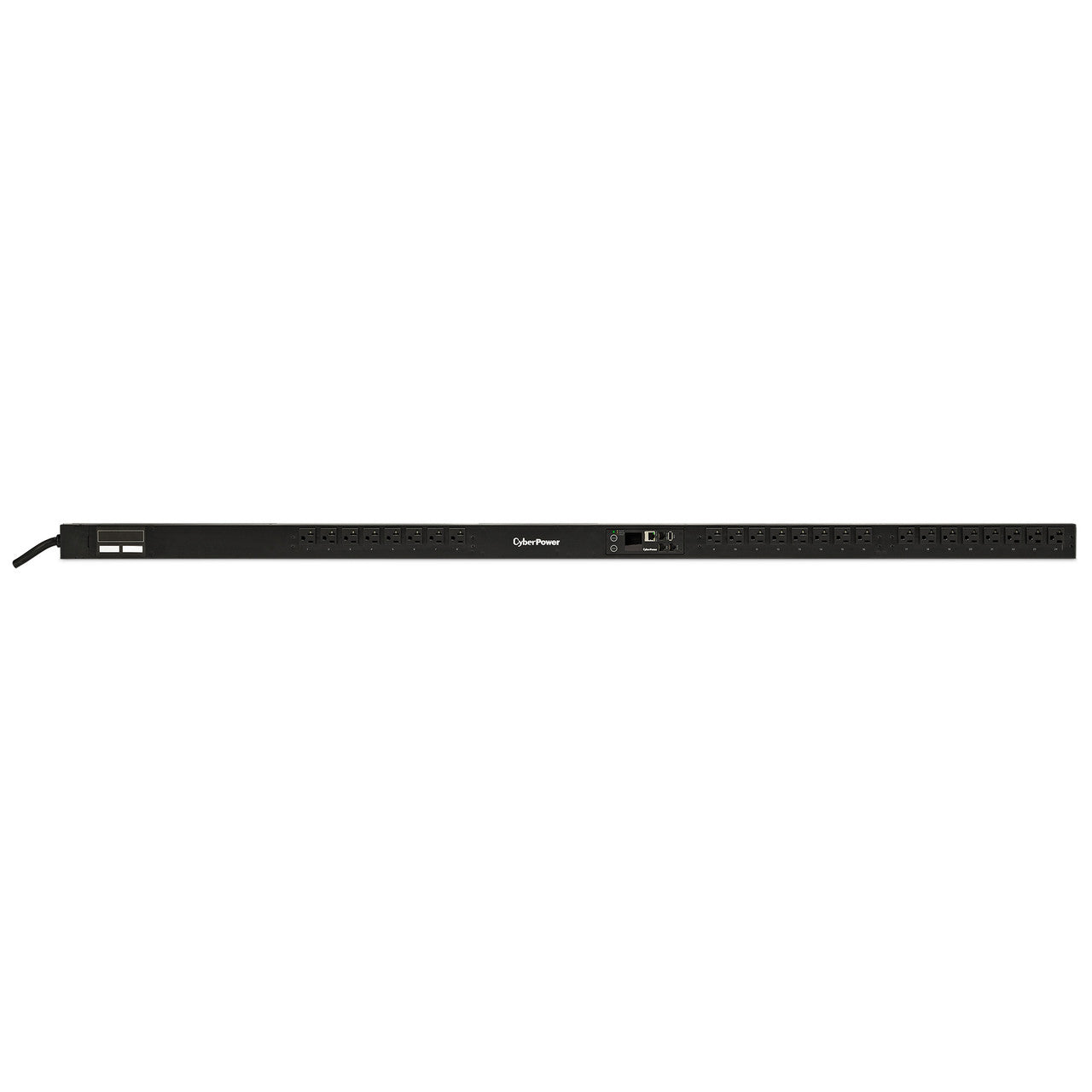

The CyberPower PDU31101, a 24-outlet (front), 0U rackmount monitored power distribution unit (PDU) provides 120V 20A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-20P plug with unfiltered electrical pass-through. (May be converted to non-locking NEMA 5-20P plug with included adapter.) Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.

The PDU31101 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

• Power Distribution
  Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
• Switch-Free Design
  Safeguards against accidental power shut down.
• CyberPower Management Console
  A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.
• Remote and Local Monitoring
  Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
• Automatic Event Notifications
  Provides immediate updates about power events via email, SMS text, or SNMP traps.
• Upgradeable Firmware
  Downloadable firmware updates to improve programs that run the PDU.
• Digital Display
  Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
• Network-Grade Plugs and Outlets
  Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.
• Long Input Power Cord
  The PDU is able to be placed where it’s needed because it reaches distant power sources.
• Cord Retention Tray
  Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
• Mounting Brackets
  Design allows PDU to be installed in a rack vertically, under a counter or via wall mount.
• Durable Metal Housing
  Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
• Three-Year Limited Warranty
  Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.

What’s In The Box

PDU, 2 Mounting Brackets, 6 (Flat Head M4x5) Bracket Mounting Screws, 6 (M5x12) Rack Mounting Screws/Washers, Cord Retention Tray, 36 Cable Ties, 6 (M3x6) Cord Retention Tray Mounting Screws, RJ45/DB9 Serial Port Connection Cable, Adapter NEMA L5-20R to 5-20P, User Manual, Registration and Software Download Cards
