CyberPower PDU31106 MONITORED PDU, 30A (DERATED TO 24A), 200-240V, 50/60 HZ, 36 x IEC-320 C13 OUTLETS + 6 x IEC-320 C19 OUTLETS
CyberPower PDU31106 MONITORED PDU, 30A (DERATED TO 24A), 200-240V, 50/60 HZ, 36 x IEC-320 C13 OUTLETS + 6 x IEC-320 C19 OUTLETS
CyberPower PDU31106 MONITORED PDU, 30A (DERATED TO 24A)

CyberPower

CyberPower PDU31106 MONITORED PDU, 30A (DERATED TO 24A)

Sale price$714.95
SKU: PDU31106
Quantity:

Contact

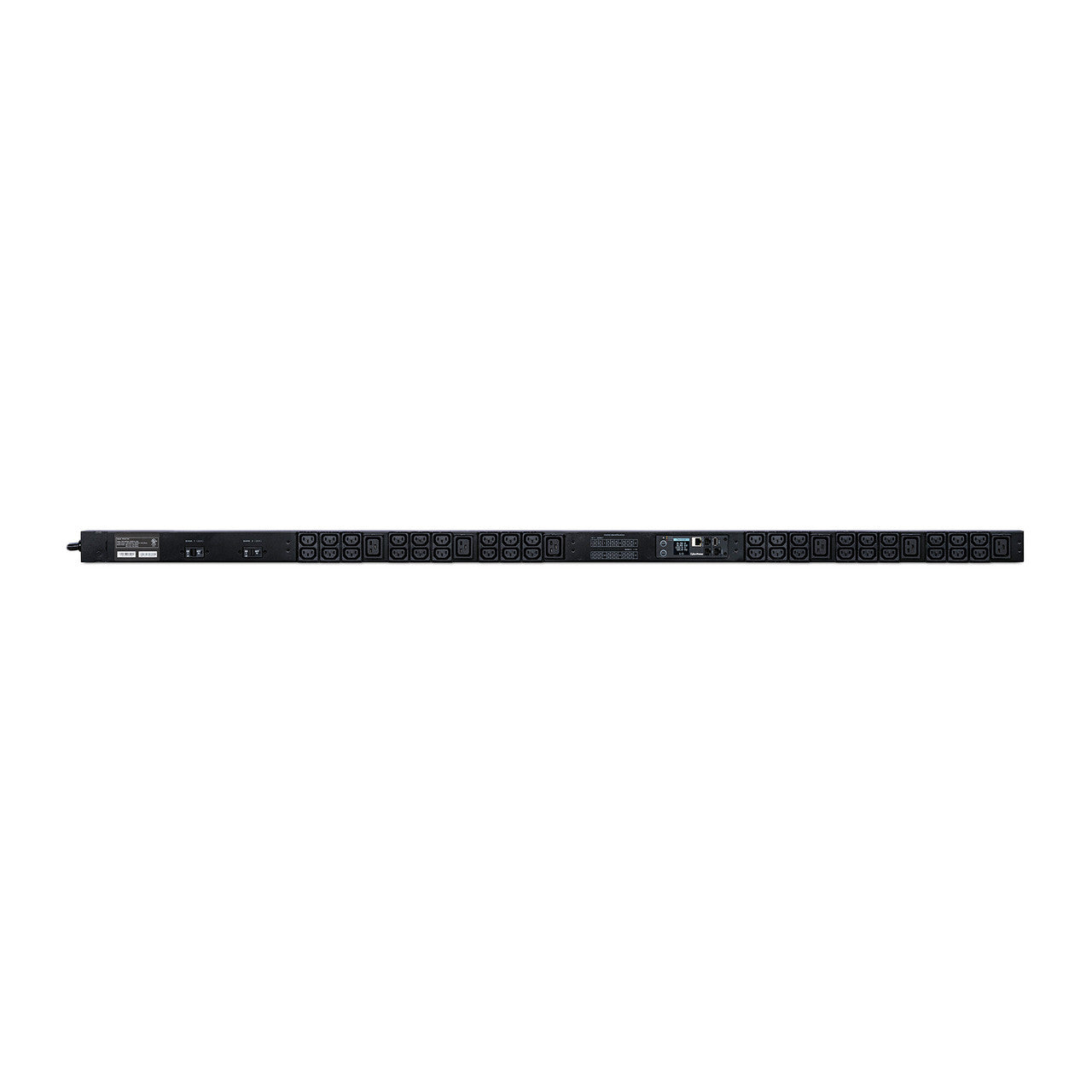

The CyberPower PDU31106, a 42-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 200-240V 30A output. PDU31106 distributes power to 36 IEC-320 C13 and 6 IEC-320 C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen.

The PDU31106 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design
    Safeguards against accidental power shut down.
  • CyberPower Management Console
    A hardware interface built into monitored and switched PDUs. It can perform tasks such as load monitoring and event logging.
  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications
    Provides immediate updates about power events via email, SMS text, or SNMP traps.
  • Upgradeable Firmware
    Downloadable firmware updates to improve programs that run the PDU.
  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power to servers, equipment, and connected devices in demanding IT or industrial environments.
  • Long Input Power Cord
    The PDU is able to be placed where it’s needed because it reaches distant power sources.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Mounting Brackets
    Design allows PDU to be installed in a rack or horizontally or vertically, under a counter or via wall mount.
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, 2 Mounting Brackets, 6 (Flat Head M4x5) Bracket Mounting Screws, 6 (M5x12) Rack Mounting Screws/Washers, Cord Retention Tray, 63 Cable Ties, 6 (M3x6) Cord Retention Tray Mounting Screws, RJ45/DB9 Serial Port Connection Cable, Registration and Software Download Cards


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Input
Voltage 200 – 240 V
Frequency 50/60 Hz
Maximum Current 30A (derated to 24A)
On/Off Switch N/A
Plug Type NEMA L6-30P
Cord Length 10 ft
Output
Nominal Output Voltage 200-240 V
Overload Protection (Each Bank) 2x 20A DP
Outlet Type IEC-320 C13 (36) + IEC-320 C19 (6)
Outlet Banks 2
Outlets – Front 42
Outlets – Rear 0
Outlets – Total 42
Meter Readout Power Control Display
LED Indicators Tx/Rx, LINK, Normal/Warning/Critical Status
Management & Communications
Outlet switching Yes
SNMP / HTTP Remote Monitoring IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS,
Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs,
SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Network Connection RJ45 (Ethernet), RJ45 (COM Port)
Environmental Sensor Optional, via RJ45
Modular Expandability (Cascading) Yes, via RJ45
Updateable firmware Yes, via USB or Ethernet
Multifunction LCD Screen Voltage, Frequency, Load, Current, HW/FW Version, Network information
Physical
Rack Size 0U
Form Factors Supported Vertical Rackmount, Wallmount
Standard Form Factor 0U Rackmount
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Adjustable Mounting Brackets 1 set
Dimensions – W×H×D (in) 2.2 x 65.5 x 1.9 (in)
Weight (lbs) 12.35
Environmental
Operating Temperature 32 °F to 140 °F (0 °C to 60 °C)
Operating Relative Humidity 0% – 95% Non-condensing
Maximum Operating Elevation 11,480 ft (3,500 m)
Certifications
Safety UL 60950-1, FCC Class A
Environmental RoHS Compliant
Warranty
Product Warranty 3 year
