CyberPower PDU41002 Switched PDU 20A 120V NEMA (L)5-20P input 8 NEMA 5-20R output 12ft cord 1U 3 Year Warranty

Sale price$579.95
SKU: PDU41002
Quantity:

Contact

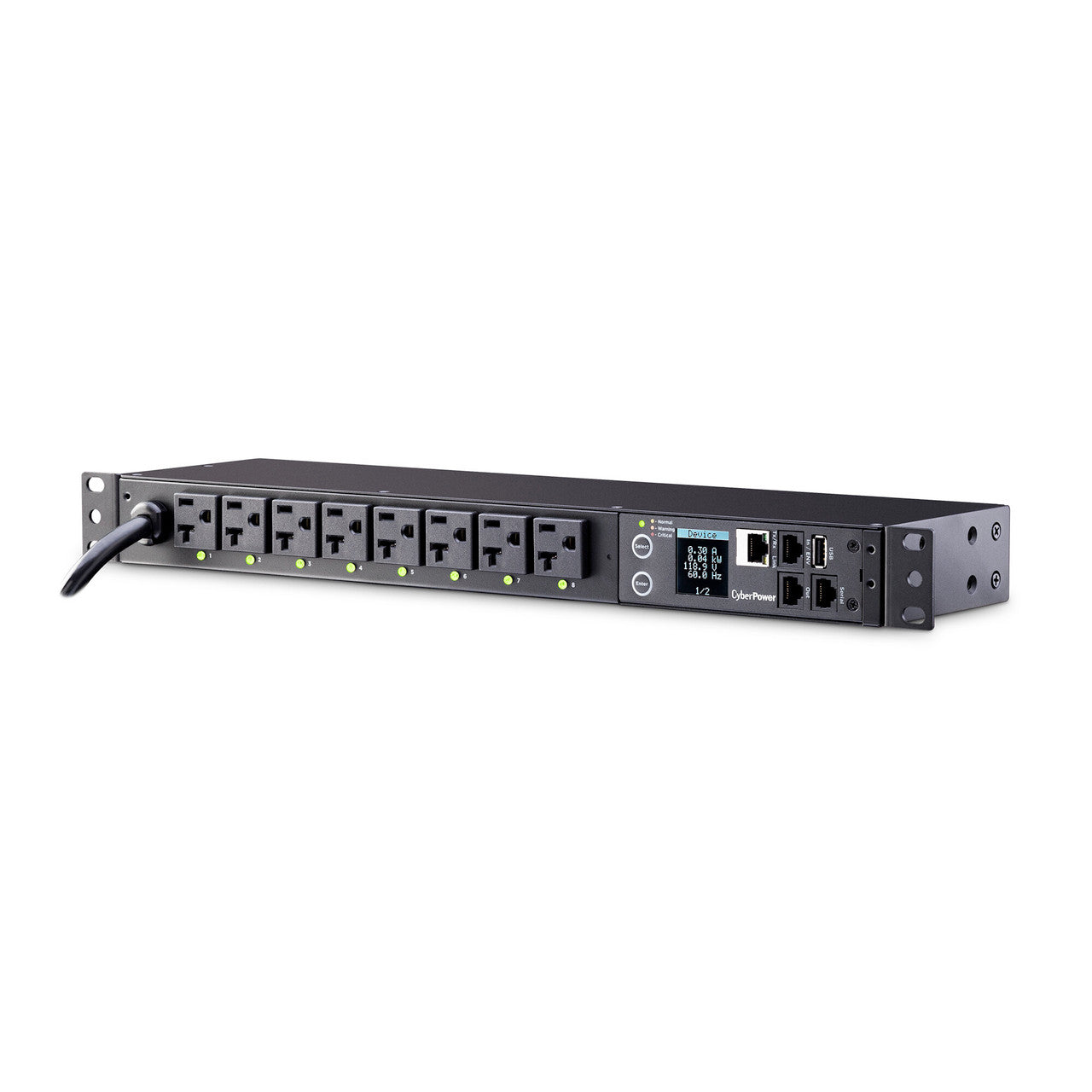

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41002 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Power Distribution

  • Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

Switch-Free Design

  • Safeguards against accidental power shutdown.

Switchable Outlets

  • Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console

  • Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring

  • The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

  • Provide immediate updates about power events via email, SMS text, or SNMP traps.

Upgradeable Firmware

  • Downloadable improvements (firmware updates) to programs that run the PDU.

Digital Display

  • Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Network-Grade Plugs and Outlets

  • Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Long Input Power Cord

  • Reaches distant power sources, allowing the PDU to be placed where it’s needed.

Cord Retention Tray

  • Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

Configurable Mounting Brackets

  • Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Durable Metal Housing

  • Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

Three-Year Limited Warranty

  • Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
What’s In The Box

PDU, 4 Mounting Brackets (2 short and 2 long), 10 Flat Head M4x8 Bracket Mounting Screws, Cord Retention Tray, 10 Cable Ties, 6 M3x6 Cord Retention Tray Mounting Screws, 6 M5x12 Screws, 6 Washers, RJ45/DB9 Serial Port Connection Cable, User Manual, Registration Card, CD


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Type Switched
Phase Single Phase
Input
Voltage 100-120Vac
Frequency 50Hz/60Hz
Maximum Input Current 20A (Derated to 16A)
Plug Type NEMA (L)5-20P
Plug Style Straight
Cord Length (ft.) 12
Cord Length (m) 3.7
Output
Nominal Output Voltage 100-120Vac
Overload Protection (Each Bank) None
Outlets – # of Banks 1
Outlets – Total 8
Outlets – Front 8
Outlets – Rear 0
Outlet Type NEMA 5-20R
Meter Readout Power Control Display
LED Indicators Tx/Rx, LINK, Normal/Warning/Critial Status
Management & Communications
Outlet switching Yes
SNMP / HTTP Remote Monitoring IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS,
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
Windows AD
Network Connection RJ45 (Ethernet),
RJ45 (COM Port)
Environmental Sensor Optional, via RJ45
Modular Expandability (Cascading) Yes, up to 4 via RJ45
Updateable firmware Yes, via USB or Ethernet
Multifunction LCD Screen Voltage
Frequency
Load
Current
HW/FW Version
Network information
Physical
Standard Form Factor 1U Rackmount
Form Factors Supported Vertical or horizontal mounting supported in wallmount applications,
racks and a variety of other surface types
Style Horizontal Rackmount, Wallmount
Enclosure Construction Steel
Cord Retention Tray/Cord Organizers Yes
External Site Ground Pin Yes
Adjustable Mounting Brackets 1 set
Physical Size
Dimensions (WxHxD) (in.) 17.05 x 1.75 x 4.41
Weight (lbs.) 7.3
Installed Rack Height 1U
Shipping Dimensions
Dimensions (WxHxD) (in.) 19.7 x 2.6 x 9.8
Weight (lbs.) 8.8
Environmental
Operating Temperature 32 °F to 131 °F (0 °C to 55 °C)
Operating Humidity 0% – 95% non-condensing
Maximum Operating Elevation 11,483 ft (3,500 m)
Certifications
Safety UL 60950, FCC Class A
Environmental RoHS Compliant
Warranty
Product Warranty 3 Years
Ext Warranty WEXT5YR-PDU1B
