CyberPower PR1000LCDRT1U 1000VA/800W, Pure Sine Wave, 1U, NEMA 5-15P, 10 ft cord, USB

Sale price$604.95
SKU: PR1000LCDRT1U
Quantity:

Contact

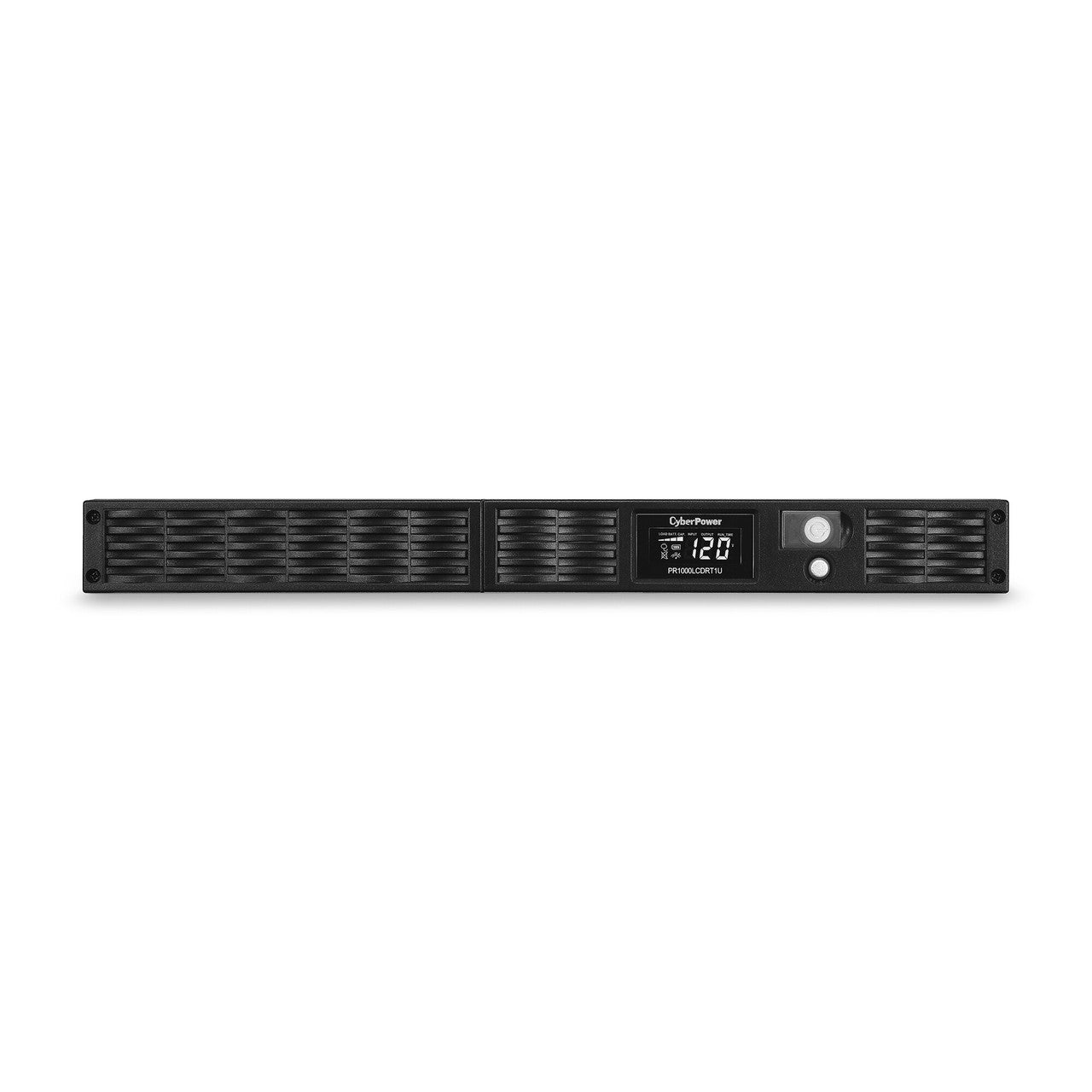

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR1000LCDRT1U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1000LCDRT1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1000LCDRT1U comes with a three-year warranty and a $400,000 Connected Equipment Guarantee.

Battery Backup

  • Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

  • Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Line Interactive Topology

  • Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)

  • Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

Sine Wave Output

  • Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.

EMI/RFI Noise Filter

  • Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.

GreenPower UPS™ Bypass Design

  • Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Multifunction LCD Panel

  • Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

Rack/Tower Versatility

  • Allows for horizontal rack or vertical tower installation.

Tamper-Proof Power Button

  • Minimizes the chance the UPS can be accidentally turned off.

Audible Alarms

  • Identify when the model is running on battery power if it is overloaded, or when the battery is low.

Resettable Circuit Breaker

  • Interrupts an electric current in a circuit when the current becomes too high.

PowerPanel® Business Edition Software

  • Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.

Three-Year Warranty

  • CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

  • CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

What’s In The Box

UPS Unit; User’s Manual for UPS; (2) Rack Mount Brackets; (2) Wall Mount Brackets; (2) Stands Emergency Power Off Cable (gray) PowerPanel® Business Edition Software CD; Serial Interface Cable (RJ45/DB-9); USB A+B type cable; Warranty Registration Card.

PowerPanel Business software download available here.


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass
Active PFC Compatible Yes
Input
Voltage Nominal 120V VAC
Frequency Range 57 – 63 Hz
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length 10 ft
Input Voltage Range 80 – 150 VAC
Output
VA 1,000 VA
Watts 800 W
Automatic Voltage Regulation Boost 1 +30%

Boost 2 +14%

Buck -12%

On Battery Voltage 120 VAC ± 5%
On Battery Frequency 60 Hz ± 1%
On Battery Waveform Sine Wave
Outlet Type NEMA 5-15R
Outlets – Total 7
Outlets – Critical Load 3
Outlets – Battery & Surge Protected 6
Outlets – Surge-Only Protected 1
Overload Protection Internal Circuitry Limiting

Circuit Breaker

Transfer Time 10 ms
Rated Power Factor 0.8
Battery
Runtime at Half Load 13 minutes
Runtime at Full Load 3.5 minutes
Battery Type Sealed Lead-Acid
Battery Size 6V/9Ah
Battery Quantity 4
Hot-Swappable Yes
User Replaceable Yes
Replacement Battery Cartridge RB0690X4B
Replacement Battery Cartridge Quantity 1
Typical Recharge Time Less than 6 hours (90% charged)
Surge Protection & Filtering
Surge Suppression 1,030 J
EMI/RFI Filtration Yes
Management & Communications
Multifunction LCD Panel Displays:Current/Load Level

Runtime

Battery Level

Battery In Use

Input Voltage

Output Voltage

Overload

Silent Mode

Normal Mode

HID Compliant USB Port Yes
Serial Port Yes
Emergency Power Off (EPO) Port Yes
LED Indicators Power On

Wiring Fault

Audible Alarms On Battery

Low Battery

Overload

Software PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring Yes, with optional RMCARD205
Contact Closure No
Cable Management USB Cable, Serial Cable, EPO Cable
Physical
Rack Size 1U
Form Factor Rack/Tower
Dimensions – W×H×D (in) 17.25 × 1.75 × 15.8 inches
Weight (lbs) 35.9 lbs
Shipping Dimensions – W×H×D (in) 20.8 × 6.2 × 19.4 inches
Shipping Weight (lbs) 42.5 lbs
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Humidity 0 – 95% (non-condensing)
Storage Temperature 5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
AC Mode Thermal Dissipation 63 BTU/Hr
Certifications
Safety UL1778 4th

cUL CSA C22.2 No 107.3-05

FCC/DOC Class A

Environmental RoHS Compliant
Warranty
Product Warranty 3 Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount $400,000
