CyberPower

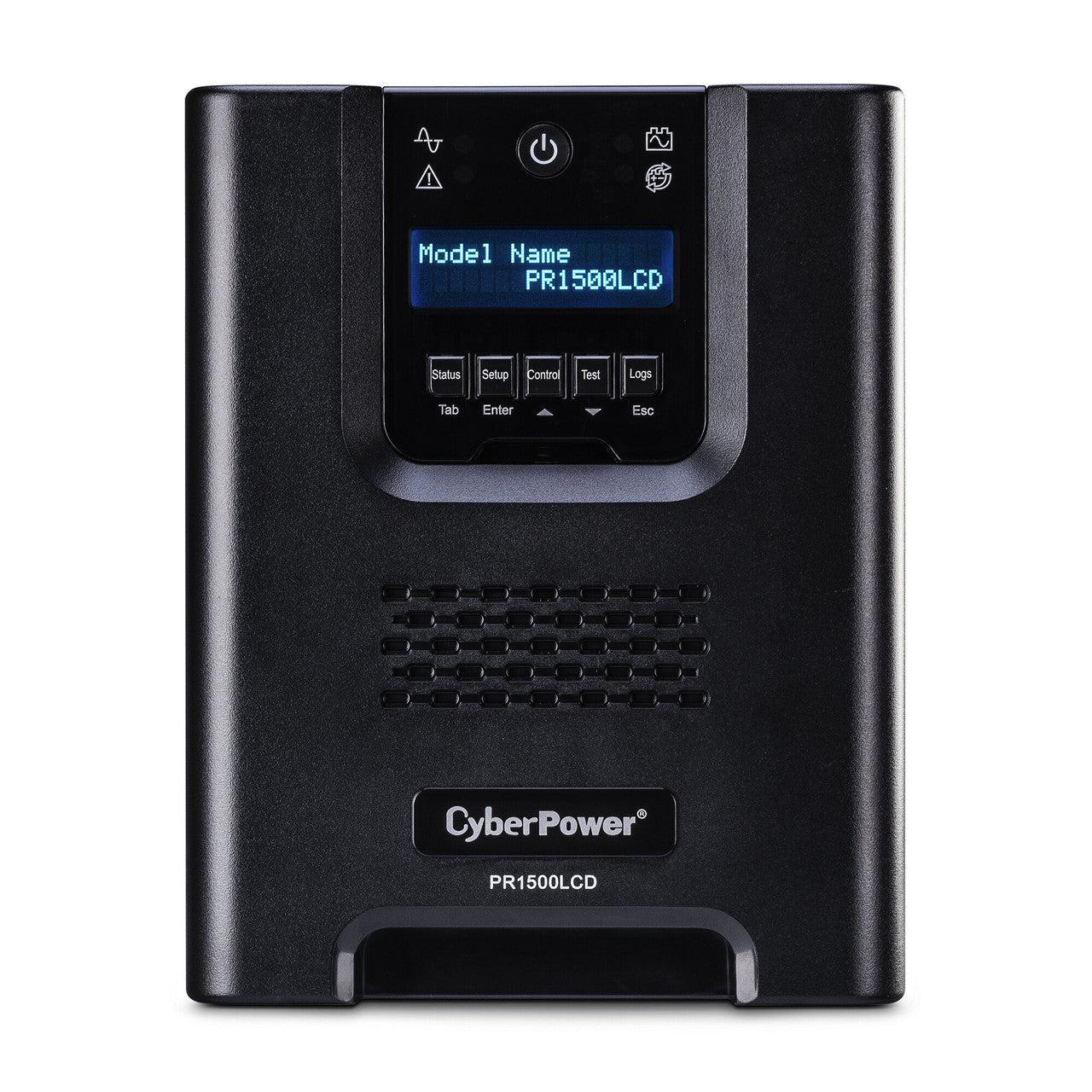

CyberPower PR1500LCD 1500VA/1500W, Pure Sine Wave, NEMA 5-15P, 6 ft cord, 8 NEMA 5-15R
A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR1500LCD provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1500LCD comes with a three-year warranty and a $375,000 Connected Equipment Guarantee.
- Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive TopologyExists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Sine Wave OutputProvides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
- GreenPower UPS Bypass DesignIs a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Extendable LCD Control PanelCan be removed and relocated for easy viewing using the attached 4.5 ft. cable. This feature provides easy access to view status or change settings on the UPS when it’s installed in a hard to reach area such as the bottom of a rack, under a desk, in a crowed IT closet, or on the floor.
- PowerPanel® Business Edition SoftwareProvides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here.
- Cisco CompatibleThis CyberPower UPS system is a Cisco EnergyWise compliant end device.
- Three-Year WarrantyCyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
What’s In The Box
UPS System, User Manual, Emergency Power Off Cable (gray), Serial Cable (DB-9), USB A+B Type Cable, Warranty Registration Card, and Function Setup Guide.
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
Active PFC Compatible | Yes |
Energy Saving | GreenPower UPS™ Bypass |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 2 |
Battery Size | 12V/17Ah |
Battery Type | Sealed Lead-Acid |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB12170X2A |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 4.7 minutes |
Runtime at Half Load | 15.1 minutes |
Typical Recharge Time | 3 hours – Quick Charge Mode, 8 hours – Eco Mode |
User Replaceable | Yes |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 17.02 x 22.1 x 43.18 (cm) |
Physical Dimensions – (WxHxD) (in) | 6.7 x 8.7 x 17 (in) |
Physical Dimensions – (WxHxD) (mm) | 170 x 221 x 432 (mm) |
Weight (kg) | 24.49 |
Weight (lb) | 54 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 27.49 |
Shipping – Weight (lb) | 60.6 |
Shipping Dimensions – (WxHxD) (cm) | 31.75 x 35.56 x 57.79 (cm) |
Shipping Dimensions – (WxHxD) (in) | 12.5 x 14 x 22.75 (in) |
Shipping Dimensions – (WxHxD) (mm) | 317.5 x 355.6 x 577.85 (mm) |
Input | |
Adjustable Voltage Range | 75Vac – 154Vac |
Circuit Breaker | 15A |
Cord Length (ft) | 6 |
Input Frequency | 50/60Hz ± 3Hz |
Input Voltage Range | 78Vac – 149Vac |
Nominal Input Voltage | 120Vac |
Plug Style | Straight |
Plug Type | NEMA 5-15P |
Output | |
Automatic Voltage Regulation | Double Boost, Single Buck |
On Battery Frequency | 50/60Hz ± 0.1Hz |
On Battery Voltage | 120Vac ± 5% |
On Battery Waveform | Sine Wave |
Outlet Type | NEMA 5-15R |
Outlets – Battery & Surge Protected | 8 |
Outlets – Critical Load | 4 |
Outlets – Total | 8 |
Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
Transfer Time | 4 ms |
VA | 1,500 |
Watts | 1,500 |
Surge Protection & Filtering | |
Surge Suppression | 1,030 J |
Management & Communications | |
Audible Alarms | On Battery, Low Battery, Overload, Fault, Replace Battery |
EPO Port | Yes |
HID Compliant USB Port | Yes |
LED Indicators | Power On, Online, On Battery, Wiring fault, Replace Battery |
Management Cable | USB Cable, Serial Cable, EPO Cable |
Multifunction LCD Panel | 41 different settings or status options via the UPS Status menu, UPS Setup & Control menus, and Testing/Battery Calibration menus. |
SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
Serial Port | Yes |
Software | PowerPanel® Business Edition |
Physical | |
Color | Black |
Dimensions – W×H×D (in) | 6.7 × 8.7 × 17 inches |
Form Factor | Mini-Tower |
Weight (lbs) | 54.0 lbs |
Environmental | |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Operating Relative Humidity | 0 – 95% (non-condensing) |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Storage Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL1778, cUL 107.3, FCC DOC Class A |
Warranty | |
CEG Amount | $375,000 |
Connected Equipment Guarantee | Lifetime |
Product Warranty | 3 Years Limited |
