CyberPower

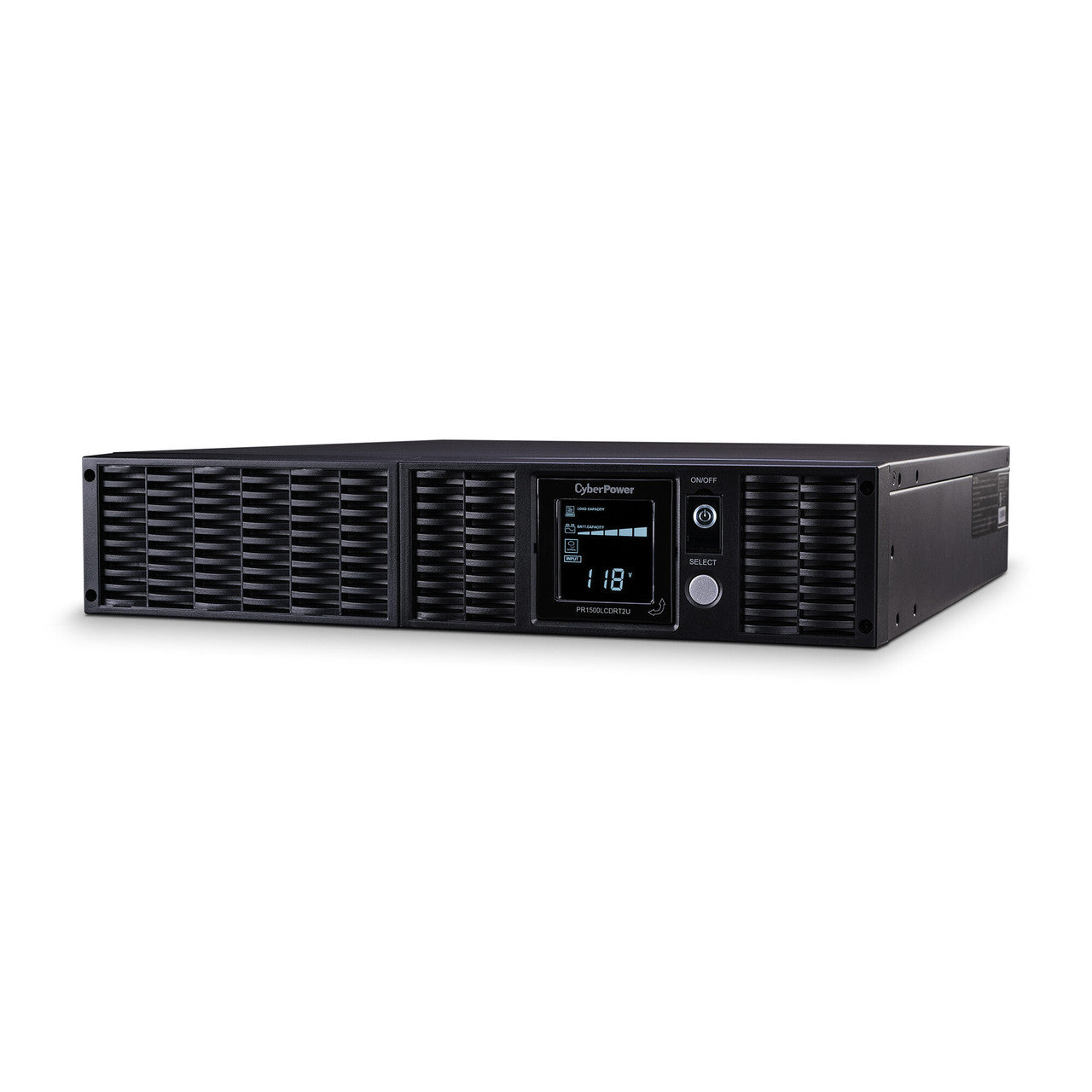

CyberPower PR1500LCDRT2UN 1500VA/1350W Sinewave 8 outlet, SNMP Networked AVR LCD Rackmount
A rack/tower convertible UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR1500LCDRT2UN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCDRT2UN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR1500LCDRT2UN comes with a three-year warranty and comes with a three-year warranty and a $400,000 Connected Equipment Guarantee.
-
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. -
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. -
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics. -
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. -
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations. -
Sine Wave Output
Provides power protection to ENERGY STAR® systems with Active PFC power supplies. -
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. -
Rotatable Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower. -
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation. -
PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here. -
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. -
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
UPS System, UPS User Manual, 2 Rack Mount Brackets, Metal Plate (stand), Telephone Cable (black), Emergency Power Off Cable (gray), PowerPanel Business Edition Software CD, 2 Serial Interface Cables (DB-9), USB A+B Type Cable, Warranty Registration Card, 4 Rubber Buffers
PowerPanel Business software download available here.
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
Input | |
Voltage | 80 – 150 VAC |
Frequency Range | 47 – 63 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length | 10 ft |
Output | |
VA | 1,500 VA |
Watts | 1,350 W |
Automatic Voltage Regulation | Boost 1 +30%, Boost 2 +14% / Buck -12% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Frequency | 50/60 Hz ± 0.1 Hz |
On Battery Waveform | Sine Wave |
Outlet Type | NEMA 5-15R |
Outlets – Total | 8 |
Outlets – Critical Load | 4 |
Outlets – Battery & Surge Protected | 8 |
Outlets – Surge-Only Protected | 0 |
Outlets – Widely Spaced | 8 |
Overload Protection | Internal Circuitry Limiting
Circuit Breaker |
Transfer Time | 4 ms |
Battery | |
Runtime at Half Load | 11 minutes |
Runtime at Full Load | 4 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/7Ah |
Battery Quantity | 4 |
Hot-Swappable | Yes |
User Replaceable | Yes |
Replacement Battery Cartridge | RB1270X4F |
Replacement Battery Cartridge Quantity | 1 |
Typical Recharge Time | Less than 6 hours (90% charged) |
Surge Protection & Filtering | |
Surge Suppression | 2,060 J |
Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
Coaxial Protection RG6 | 1-In, 1-Out |
EMI/RFI Filtration | Yes |
Management & Communications | |
Multifunction LCD Panel | Displays:
Current/Load Level Runtime Battery Level Temperature Battery In Use Input Voltage Output Voltage Output Frequency Overload Wiring Fault Silent Mode Normal Mode |
HID Compliant USB Port | Yes |
Serial Port | Yes (2x) |
Emergency Power Off (EPO) Port | Yes |
LED Indicators | Power On
Wiring Fault |
Audible Alarms | Input Fault
Battery Fault Low Battery Overload |
Software | PowerPanel® Business |
SNMP / HTTP Remote Monitoring | RMCARD205 included |
AS400 Management | None |
Physical | |
Rack Size | 2U |
Form Factor | Rack/Tower |
Dimensions – W×H×D (in) | 17.25 × 3.5 × 15.75 inches |
Weight (lbs) | 56.0 lbs |
Environmental | |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Operating Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Certifications | |
Safety | UL1778
cUL 107.1 FCC DOC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $400,000 |
