CyberPower

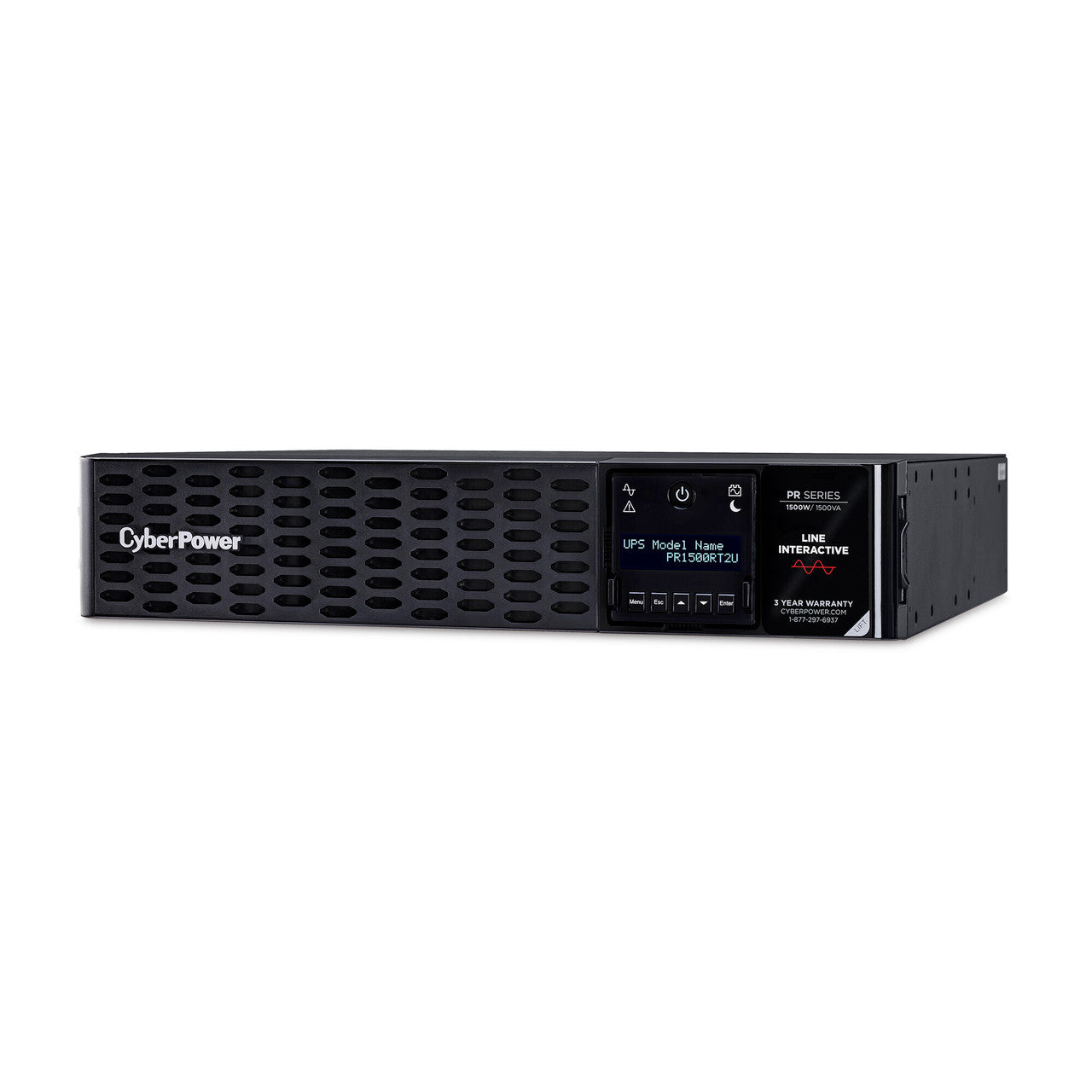

CyberPower PR1500RT2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R
Product Discontinued: New Model PR1500RT2UC
The PR1500RT2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR1500RT2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RT2U also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR1500RT2U.
-
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. -
Line-Interactive Topology
Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. -
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations. -
Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies. -
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life. -
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM. -
Rotatable Multifunction LCD Panel
Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options. -
Toolless Battery Panel Access
Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover. -
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. -
Data-Line Protection
Prevents power surges that travel through telephone, coaxial, and/or Ethernet lines from causing damage to electronics. -
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. -
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation. -
PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab. -
ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment. -
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. -
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
UPS System, Faceplate, UPS User Manual, 2-Post Rack Mounting Kit, Tower Mounting Kit, Emergency Power Off Cable (gray), Serial Interface Cable, and USB A+B Type Cable
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass Technology |
ENERGY STAR® Compliant | Yes |
Active PFC Compatible | Yes |
Input | |
Input Voltage Range | 70 – 155 VAC |
Frequency Range | 47 – 63 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length (ft) | 10 |
Output | |
VA | 1500 VA |
Watts | 1500 W |
Automatic Voltage Regulation | Double boost, single buck |
On Battery Voltage | 100/110/120/125 Vac ± 5% |
On Battery Frequency | 50/60 Hz ± 1% |
On Battery Waveform | Sine Wave |
Outlet Type | NEMA 5-15R |
Outlets – Total | 8 |
Outlets – Critical Load | 4 |
Outlets – Battery & Surge Protected | 8 |
Outlets – Surge-Only Protected | 0 |
Overload Protection | Circuit Breaker (15A) |
Transfer Time | 4 ms typical |
Rated Power Factor | 1 |
Battery | |
Runtime at Half Load | 18.2 minutes |
Runtime at Full Load | 6.5 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/9Ah |
Battery Quantity | 4 |
Hot-Swappable | Yes |
User Replaceable | Yes |
Replacement Battery Cartridge | RB1290X4J |
Replacement Battery Cartridge Quantity | 1 |
Typical Recharge Time | 3 Hrs |
Surge Protection & Filtering | |
Surge Suppression | 2430 J |
EMI/RFI Filtration | Yes |
Phone RJ11 / Ethernet RJ45 | 1-in, 1-out |
Coaxial Protection RG6 | Optional 1-in, 1-out (to replace RJ45) |
Management & Communications | |
Multifunction LCD Panel | 47 Settings (27 setup and control items + 20 status updates and log menus) |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
LED Indicators | Power on, Line mode, Battery mode, Fault, Night mode, Wiring Fault |
Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
Software | PowerPanel® Business Edition |
SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
Communication Cable | USB Cable, Serial Cable, EPO Cable |
Physical | |
Rack Size | 2U |
Color | Black |
Form Factor | Rack/Tower |
Dimensions – W×H×D (in) | 17.1 x 3.4 x 16.2 inches |
Weight (lbs) | 55.8 lbs |
Environmental | |
Operating Temperature | 32 °F to 104°F (0°C to 40°C) |
Operating Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
AC Mode Thermal Dissipation | 47.4 BTU/Hr |
Certifications | |
Safety | UL1778 cUL107.1 FCC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $400,000 |
