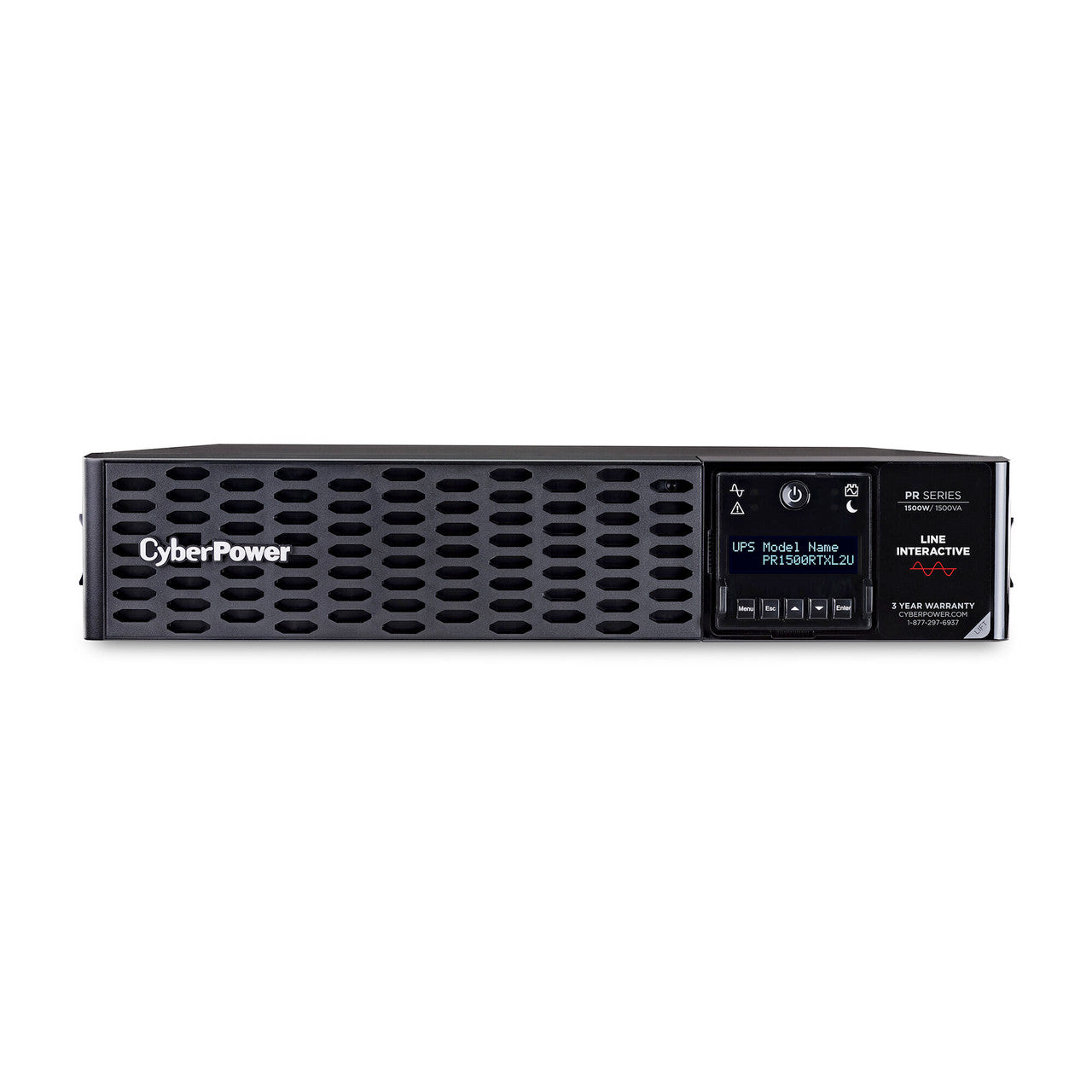

CyberPower PR1500RTXL2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R
CyberPower PR1500RTXL2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R
CyberPower PR1500RTXL2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R
CyberPower PR1500RTXL2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R
CyberPower PR1500RTXL2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R

CyberPower

CyberPower PR1500RTXL2U 1500VA/1500W, Sine Wave, 2U, NEMA 5-15P, 10 Ft Cord, 8 NEMA 5-15R

Sale price$869.95
SKU: PR1500RTXL2U
Quantity:

Contact

The PR1500RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1500RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1500RTXL2U also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR1500RTXL2U.

Battery Backup

  • Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Line-Interactive Topology

  • Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)

  • Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.

Sine Wave Output

  • Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.

Battery Equalization Technology

  • Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Fast Charge Technology

  • Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

Rotatable Multifunction LCD Panel

  • Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

Toolless Battery Panel Access

  • Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.

Extended Battery Modules (EBMs)

  • Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime.

Surge Protection

  • Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Data-Line Protection

  • Prevents power surges that travel through telephone, coaxial, and/or Ethernet lines from causing damage to electronics.

GreenPower UPS™ Bypass Design

  • Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Rack/Tower Versatility

  • Allows for horizontal rack or vertical tower installation.

PowerPanel® Business Edition Software

  • Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.

ENERGY STAR

  • This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Three-Year Warranty

  • CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.

Connected Equipment Guarantee

  • CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, Faceplate, UPS User Manual, 2-Post Rack Mounting Kit, 4-Post Rail Rack Mounting Kit, Tower Mounting Kit, Emergency Power Off Cable (gray), Serial Interface Cable, and USB A+B Type Cable


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
UPS Topology Line Interactive
Energy Saving GreenPower UPS™ Bypass Technology
ENERGY STAR® Qualified Yes
Active PFC Compatible Yes
Input
Voltage 100 – 125 Vac
Frequency 47 – 63 Hz
Input Voltage Range 70 – 155 Vac
Plug Type NEMA 5-15P
Plug Style Right Angle, 45° Offset Right
Cord Length 10 ft.
Output
VA 1500
Watts 1500
Automatic Voltage Regulation Double Boost, Single Buck
On Battery Voltage 100/110/120/125 Vac ± 5%
On Battery Frequency 50/60 Hz ± 1%
On Battery Waveform Sine Wave
Outlets – Total 8
Outlet Type NEMA 5-15R
Outlets – Critical Load 4
Outlets – Battery & Surge Protected 8
Rated Power Factor 1
Overload Protection Internal Circuitry Limiting
Circuit Breaker
Transfer Time 4 ms typical
Battery
Extended Battery Module BP48VP2U02
Runtime at Half Load (min) 17.9
Runtime at Full Load (min) 6.5
Battery Type Sealed Lead-Acid
Battery Size 12 V/9 AH
Hot-Swappable Yes
Replacement Battery RB1290X4J
Battery Quantity 4
User Replaceable Yes
Typical Recharge Time 3 hrs
External Battery Pack Option Yes
Surge Protection & Filtering
RJ11/RJ45 1-in, 1-out
Surge Suppression 2430
EMI/RFI Filtration Yes
Management & Communications
Multifunction LCD Panel 47 Settings (27 setup and control items + 20 status updates and log menus)
HID Compliant USB Port Yes
Serial Port Yes
EPO Port Yes
Contact Closure Yes
Management Cable USB Cable, Serial Cable, EPO Cable
LED Indicators Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
Software PowerPanel® Business Edition
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
Physical
Rack Size 2U
Color Black
Form Factor Rack/Tower
Dimensions – W×H×D (in) 17.1 x 3.4 x 19.7
Weight (lbs) 67.7
Shipping Dimensions (WxHxD) (in.) 22.1 x 10.8 x 24.4
Shipping Weight (lbs.) 81.1
Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 0 – 95% (non-condensing)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
AC Mode Thermal Dissipation 71.7
Certifications
Safety UL1778, cUL107.1, FCC Class B
Environmental RoHS Compliant
Warranty
Product Warranty Three-Years Limited
Connected Equipment Guarantee Lifetime
CEG Amount $400,000
