Sale price$1,451.95
SKU: PR2000RTXL2UTAA
Quantity:

Contact

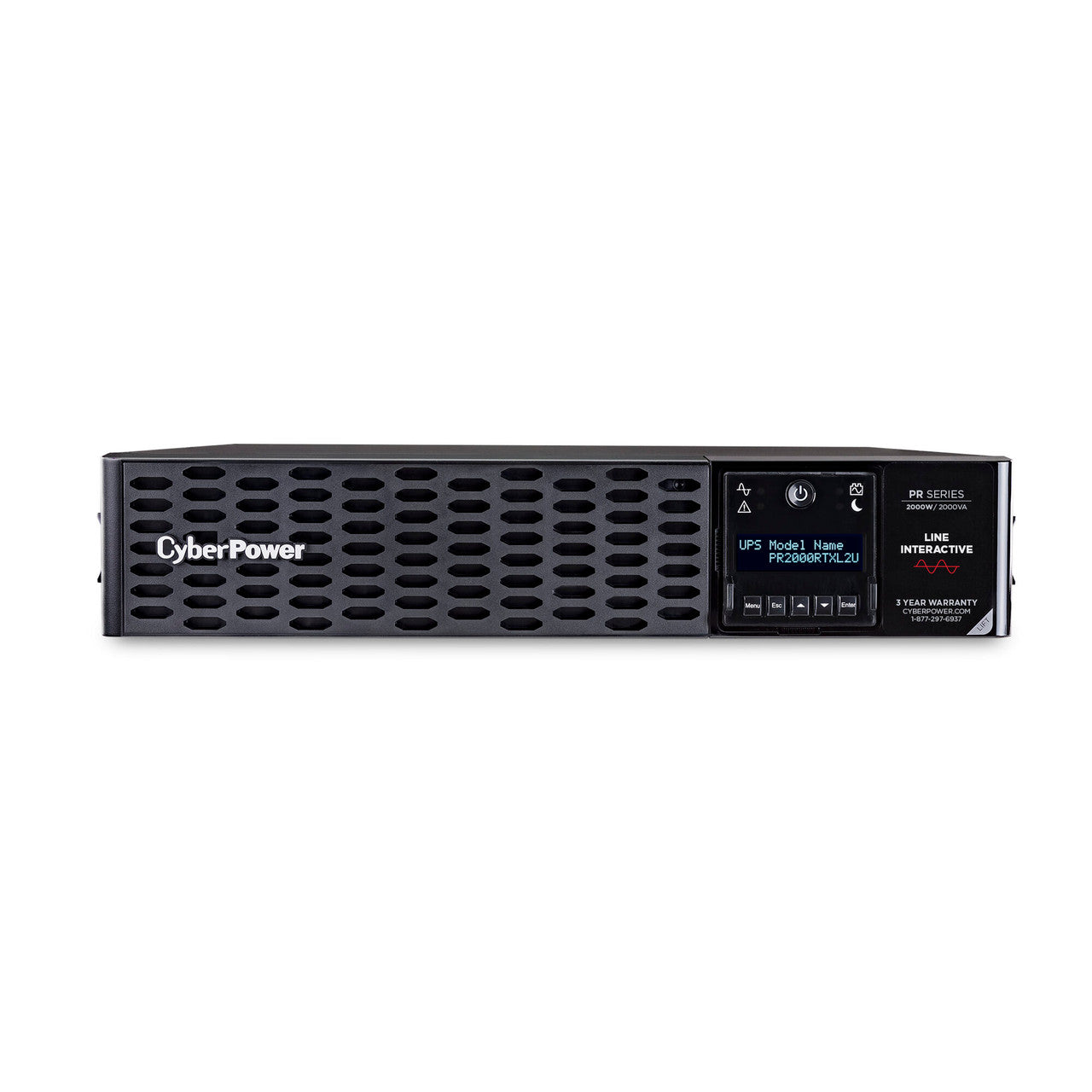

The PR2000RTXL2UTAA is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR2000RTXL2UTAA improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2000RTXL2UTAA also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U02TAA Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205TAA network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR2000RTXL2UTAA.

Battery Backup

  • Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

  • Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Sine Wave Output

  • The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

Automatic Voltage Regulation (AVR)

  • AVR increases or decreases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

Rotatable Multifunction LCD Panel

  • Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

Rack/Tower Versatility

  • Allows for horizontal rack or vertical tower installation.

Battery Equalization Technology

  • Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Fast Charge Technology

  • Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

Toolless Battery Panel Access

  • Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.

Extended Battery Modules (EBMs)

  • Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime.

Data-Line Protection

  • Prevents power surges that travel through Ethernet lines from causing damage to electronics.

PowerPanel® Business Software

  • Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.

Line Interactive Topology

  • Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

GreenPower UPS™ Bypass Design

  • Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

ENERGY STAR

  • This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Three-Year Warranty

  • CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee

  • CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box

UPS System, Faceplate, UPS User Manual, 2-Post Rack Mounting Kit, 4-Post Rail Rack Mounting Kit, Tower Mounting Kit, Emergency Power Off Cable (gray), and USB A+B Type Cable


WARNING:

This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

General
Active PFC Compatible Yes
Energy Saving GreenPower UPS™ Bypass Technology
Energy Star Certified Yes
UPS Topology Line Interactive
Battery
Battery Equalization Technology Yes
Battery Quantity 4
Battery Size 12V / 9AH
Battery Type Sealed Lead-Acid
Extended Battery Module BP48VP2U02TAA
Extended Battery Option Yes
Hot Swappable Yes
Replacement Battery Cartridge RB1290X4J
Runtime at Full Load 4.3 Minutes
Runtime at Half Load 12.2 Minutes
Typical Recharge Time 3 hrs
User Replaceable Yes
Dimensions
Physical Dimensions – (WxHxD) (cm) 43.43 x 8.64 x 50.04 (cm)
Physical Dimensions – (WxHxD) (in) 17.1 x 3.4 x 19.7 (in)
Physical Dimensions – (WxHxD) (mm) 434 x 86 x 500 (mm)
Shipping Weight (lbs) 88.6
Weight (kg) 33.79
Weight (lb) 74.5
Dimensions – Shipping
Shipping – Weight (kg) 40.19
Shipping – Weight (lb) 88.6
Shipping Dimensions – (WxHxD) (cm) 56.13 x 27.43 x 61.98 (cm)
Shipping Dimensions – (WxHxD) (in) 22.1 x 10.8 x 24.4 (in)
Shipping Dimensions – (WxHxD) (mm) 561.34 x 274.32 x 619.76 (mm)
Input
Adjustable Voltage Range 70-155Vac
Circuit Breaker 20A
Cord Length (ft) 10
Frequency Range 47-63Hz
Input Voltage 100-125Vac
Input Voltage Range 75-149Vac
Plug Style Right Angle, 0° Offset
Plug Type NEMA 5-20P
Output
Automatic Voltage Regulation Double Boost
Single Buck
On Battery Frequency 50/60Hz +/- 1%
On Battery Voltage 100/110/120/125Vac ± 5%
On Battery Waveform Sine wave
Outlet Type NEMA 5-20R
Outlets – Battery & Surge Protected 8
Outlets – Critical Load 4
Outlets – Total 8
Overload Protection Internal Circuitry Limiting, Circuit Breaker
Rated Power Factor 1
Transfer Time 4ms typical
VA 2000
Watts 2000
Surge Protection & Filtering
EMI/RFI Filtration Yes
Network Protection RJ45 1-in, 1-out
Surge Suppression (Joules) 2430
Management & Communications
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
Emergency Power Off (EPO) Port Yes
HID Compliant USB Port Yes
LED Indicators Power on, Line mode, Battery mode, Fault, Night mode, Wiring Fault
Management Cable USB Cable, Serial Cable, EPO Cable
Multifunction LCD Panel 47 Settings (27 setup and control items + 20 status updates and log menus)
SNMP / HTTP Remote Monitoring Yes – with optional RMCARD205TAA
Serial Port Yes x2
Software PowerPanel® Business
Physical
Color Black
Form Factor Rack/Tower
Rack Size 2U
Environmental
AC Mode Thermal Dissipation 129.6
Maximum Operating Elevation 10,000 ft (3,000 m)
Maximum Storage Elevation 50,000 ft (15,000 m)
Operating Relative Humidity 0 – 95% (non-condensing)
Operating Temperature 32 °F to 104°F (0°C to 40°C)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Certifications
Environmental RoHS Compliant
Safety UL1778, cUL107.1, FCC Class B
Warranty
CEG Amount $400,000
Connected Equipment Guarantee Lifetime
Product Warranty 3 Years Limited
