CyberPower

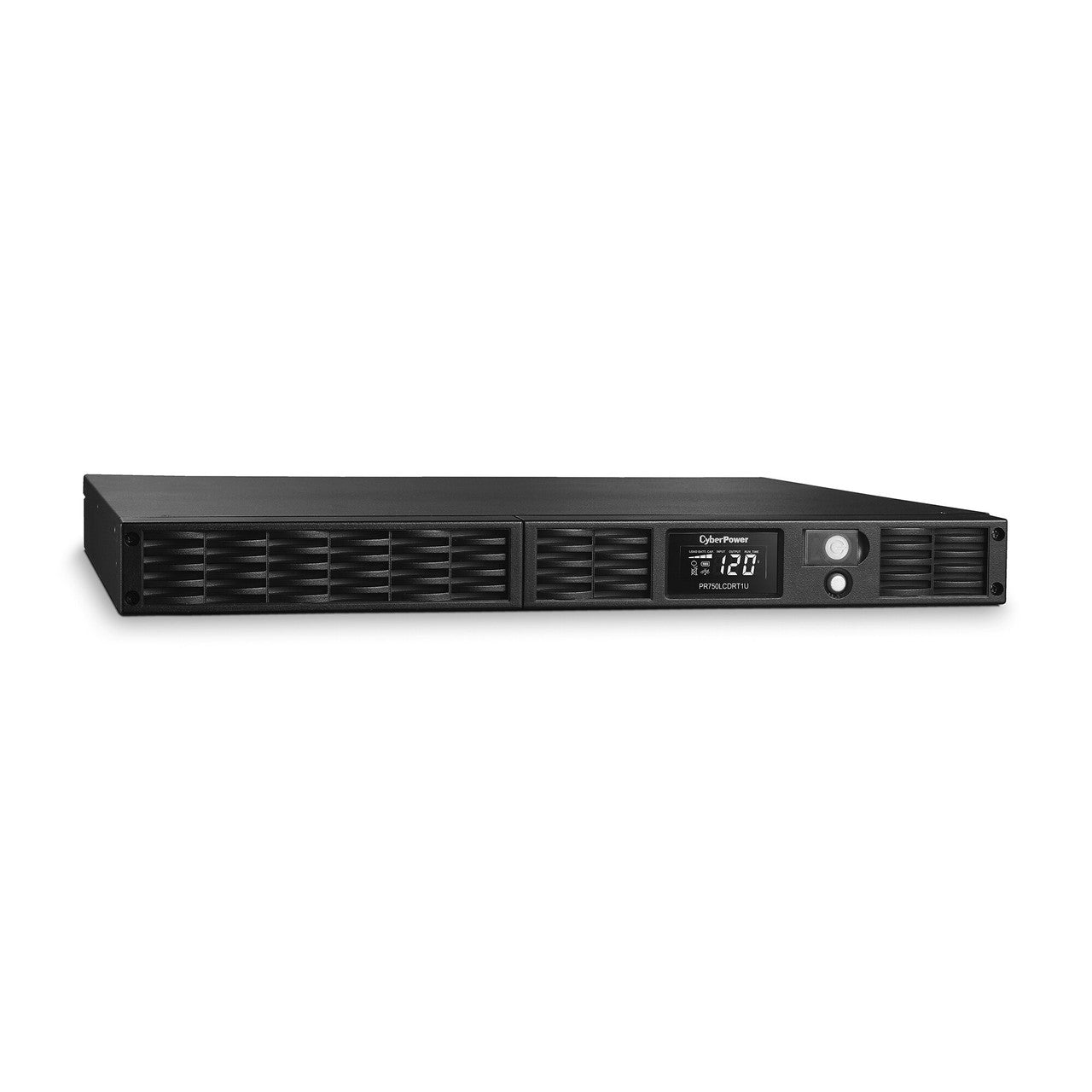

CyberPower PR750LCDRT1U 750VA/600W, Pure Sine Wave, 1U, NEMA 5-15P, 10 ft cord, USB
A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCDRT1U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCDRT1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCDRT1U comes with a three-year warranty (including coverage of batteries) and a $400,000 Connected Equipment Guarantee.
-
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. -
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. -
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. -
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations. -
Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies. -
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. -
PowerPanel® Business Edition Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available here. -
USB Connectivity
HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X. -
Multifunction LCD Panel
Displays immediate, detailed information about the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
-
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation. -
EMI/RFI Noise Filter
Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality. -
Critical Load Outlets
Extend runtimes for critical devices by powering down non-critical equipment to free up battery capacity. -
Tamper-Proof Power Button
Minimizes the chance the UPS can be turned off or interfered with by accident. -
Audible Alarms
Identify when the model is running on battery power, if it is overloaded, or when the battery is low. -
Resettable Circuit Breaker
Interrupts an electric current in a circuit when the current becomes too high. -
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. -
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What’s In The Box
UPS Unit; User’s Manual for UPS; (2) Rack Mount Brackets; (2) Wall Mount Brackets; (2) Stands Emergency Power Off Cable (gray) PowerPanel® Business Edition Software CD; Serial Interface Cable (RJ45/DB-9); USB A+B type cable; Warranty Registration Card.
PowerPanel Business software download available here.
WARNING:
This product can expose you to chemicals including Styrene, which are known to the State of California to cause cancer, and Bisphenol A (BPA), which are known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
General | |
---|---|
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass |
Active PFC Compatible | Yes |
Input | |
Voltage | Nominal 120V VAC |
Frequency Range | 57 – 63 Hz |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length | 10 ft |
Input Voltage Range | 80 – 150 VAC |
Output | |
VA | 750 VA |
Watts | 600 W |
Automatic Voltage Regulation | Boost 1 +30%
Boost 2 +14% Buck -12% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Frequency | 60 Hz ± 1% |
On Battery Waveform | Sine Wave |
Outlet Type | NEMA 5-15R |
Outlets – Total | 7 |
Outlets – Critical Load | 3 |
Outlets – Battery & Surge Protected | 6 |
Outlets – Surge-Only Protected | 1 |
Overload Protection | Internal Circuitry Limiting
Circuit Breaker |
Transfer Time | 10 ms |
Rated Power Factor | 0.8 |
Battery | |
Runtime at Half Load | 10 minutes |
Runtime at Full Load | 3 minutes |
Battery Type | Sealed Lead-Acid |
Battery Size | 6V/7Ah |
Battery Quantity | 4 |
Hot-Swappable | Yes |
User Replaceable | Yes |
Replacement Battery Cartridge | RB0670X4A |
Replacement Battery Cartridge Quantity | 1 |
Typical Recharge Time | Less than 6 hours (90% charged) |
Surge Protection & Filtering | |
Surge Suppression | 1,030 J |
EMI/RFI Filtration | Yes |
Management & Communications | |
Multifunction LCD Panel | Displays:Current/Load Level
Runtime Battery Level Battery In Use Input Voltage Output Voltage Overload Silent Mode Normal Mode |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Emergency Power Off (EPO) Port | Yes |
LED Indicators | Power On
Wiring Fault |
Audible Alarms | On Battery
Low Battery Overload |
Software | PowerPanel® Business Edition |
SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
Contact Closure | No |
Cable Management | USB Cable
Serial Cable EPO Cable |
Physical | |
Rack Size | 1U |
Form Factor | Rack/Tower |
Dimensions – W×H×D (in) | 17.25 × 1.75 × 15.8 inches |
Weight (lbs) | 30.7 lbs |
Shipping Dimensions – W×H×D (in) | 20.8 × 6.2 × 19.4 inches |
Shipping Weight (lbs) | 37.3 lbs |
Environmental | |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Operating Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
AC Mode Thermal Dissipation | 46 BTU/Hr |
Certifications | |
Safety | UL1778
CSA C22.2 NO.107.3-05 FCC DOC Class A |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $400,000 |
