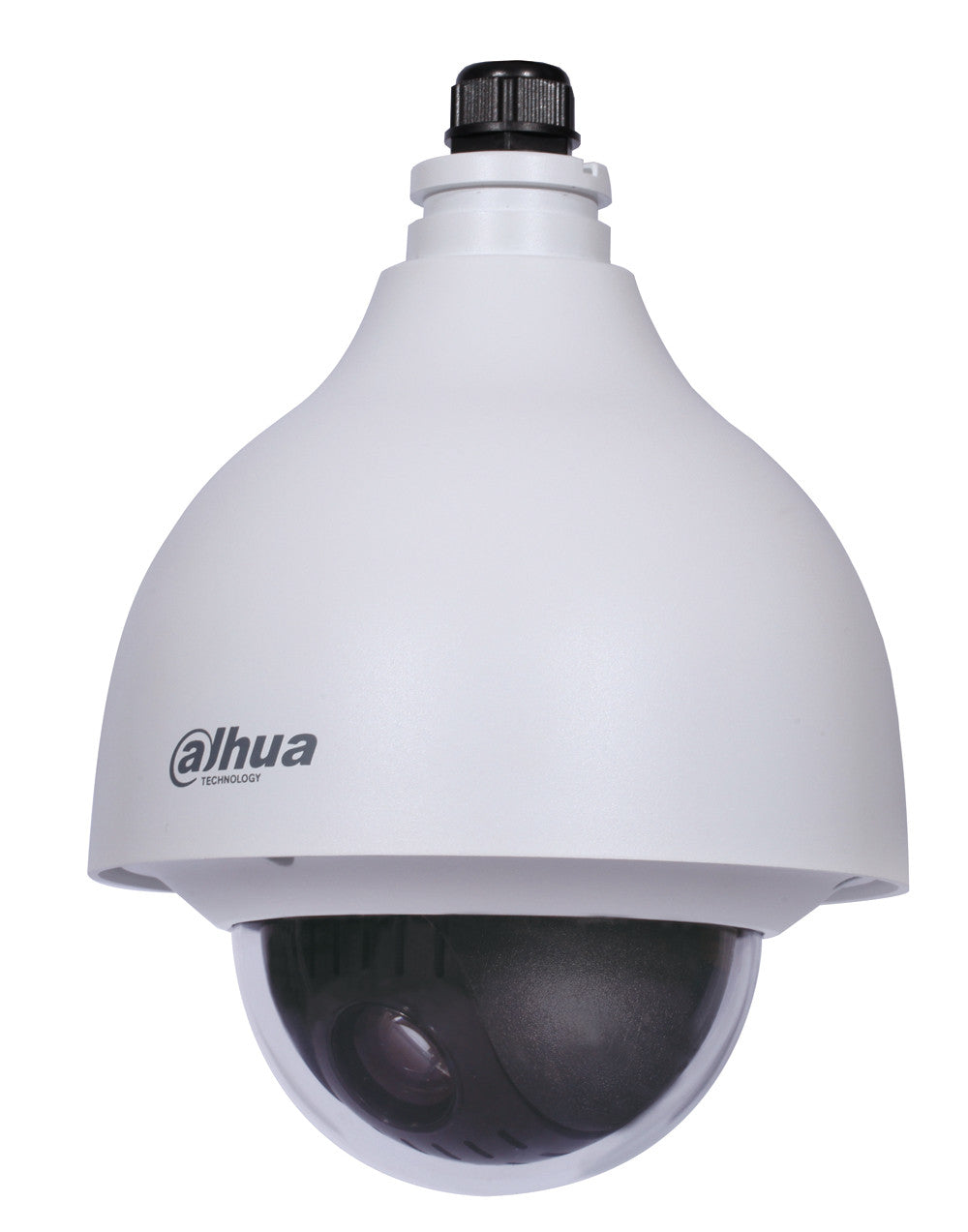

Dahua 40212IC Features
Camera
- Image Sensor 1/2.8 in. STARVIS™ CMOS
- Effective Pixels 1920(H) x 1080(V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/3 s to 1/300,000 s
- Minimum Illumination Color: Color: 0.005 lx at F1.6 B/W: 0.0005 lx at F1.6
- S/N Ratio More than 50dB
Lens
- Focal Length 5.3 mm to 64 mm
- Maximum Aperture F1.6 to F3.0
- Horizontal Angle of View Horizontal: 4.9° to 58.4°
- Optical Zoom 12x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)
DORI Distance
- Detect (8 ppf): 883 m (2987 ft)
- Observe (19 ppf): 353 m (1158 ft)
- Recognize (38 ppf): 177 m (581 ft)
- Identify (76 ppf): 88 m (289 ft)
PTZ
- Pan/Tilt Range Pan: 0° to 360° endless
- Tilt: –2° to 90°
- Auto Flip 180°
- Manual Control Speed Pan: 0.1° to 350° /s
- Tilt: 0.1° to 120° /s
- Preset Speed Pan: 300° /s;
- Tilt: 200° /s
- Presets 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Setup Human-oriented Focal Length and Speed Adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
- Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
- Resolution 1080p (1920 × 1080), 720p (1280 × 720)
- Frame Rate 1080p at 30 fps or 720p at 30/60 fps
- Video Output One (1) Channel, BNC
- High-definition Video Output (HDCVI, AHD, TVI) or
- CVBS Standard Definition Video Output (switchable)
Video Transmission
- RG-59/U Coax 720p: 500 m (1640.42 ft), 1080p: 400 m (1312.34 ft)
- RG-6/U Coax 720p: 800 m (2624.67 ft), 1080p: 600 m (1968.50 ft)
- CAT 6 UTP (balun required) 720p: 380 m (1246.72 ft), 1080p: 380 m (1246.72 ft)
Image Settings
- Day/Night Auto (ICR), Color, B/W
- OSD Menu English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish
- Advanced Features BLC, HLC, WDR (120 dB)
- Backlight Compensation Auto, ATW, Indoor, Outdoor, Manual
- White Balance Auto, Manual
- Gain Control Ultra DNR (2D/3D)
- Noise Reduction Defog
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Certifications
- CE EN 55032, EN 55024, EN 50130-4
- UL UL60950-1 + CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
- ANSI C63.4-2014
Interface
- Video Output Output: One (1) BNC
- Audio Input Input: One (1) Channel
- RS485 One (1) Port
- Alarm Input: Two (2) Channels, Output: One (1) Channel
Electrical
- Power Supply 24 VAC, 3 A (±10%)
- Power Consumption 10 W, 19 W with heater on
Environmental
- Operating Conditions -40° C to 60° C (-40° F to +140° F), with built-in heater, Less than 90% RH
- Ingress Protection IP66
- Vandal Resistance IK10
Construction
- Casing Metal
- Dimensions Ó186.20 mm x 234.40 mm (Ó7.33 in. x 9.23 in.)
- Net Weight 2.30 kg (5.07 lb)
- Gross Weight 4.30 kg (9.48 lb)
Overview
The 2 MP Starlight IR PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 30x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications, day or night. The camera offers a built-in heater and IP66 Ingress Protection to extend its use to the harshest environments. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Multiple-Format Output Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/ SD DVRs.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Protection
This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.
Environmental
With a built-in heater and a temperature range of –40 °C to +60 °C (–40 °F to +140 °F), the camera is designed for extreme temperature environments. The camera complies with the IK10 Vandal Resistance impact ranking making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection ranking makes it suitable for demanding outdoor applications.
Dual Video Output Signals
The camera offers one (1) BNC video output connection to transmit either an HDCVI or a CVBS signal. These output signals allow the camera to integrate with various devices, including analog matrix systems and monitors.
