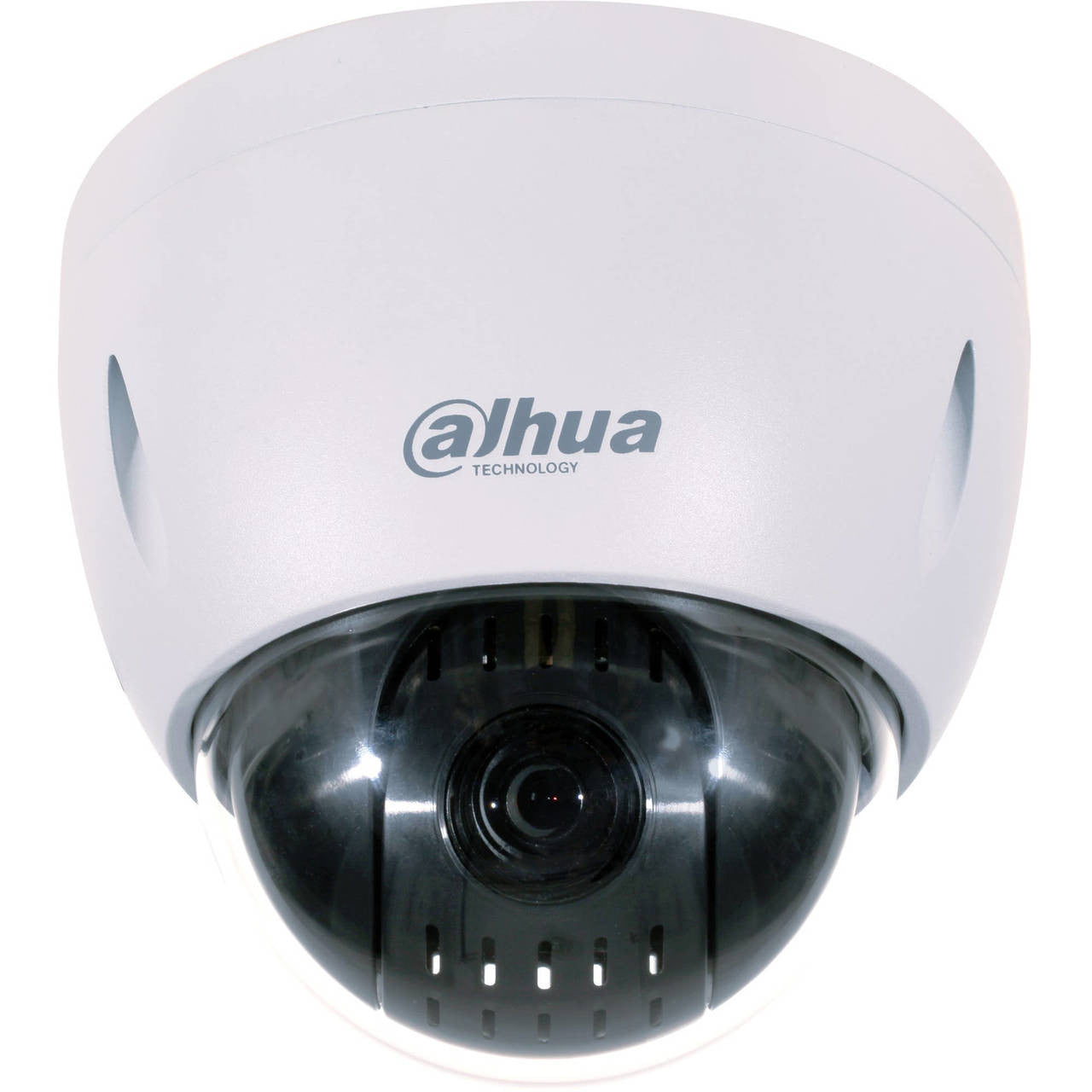

Dahua 42212TNI Features
Camera
- Image Sensor: 1/2.8-in. STARVIS™ CMOS Sensor
- Effective Pixels: 1920(H) x 1080(V), 2 MP
- RAM/ROM: 1024 MB / 128 MB
- Scanning System: Progressive
- Minimum Illumination: Color: 0.005 lux at F1.6, B/W: 0.0005 lux at F1.6
- S/N Ratio: More than 50 dB
Lens
- Focal Length: 5.3 mm to 64 mm
- Maximum Aperture: F1.6 to F4.4
- Angle of View: Horizontal: 58.2° to 4.8°
- Optical Zoom: 12x
- Focus Control: Auto, Manual
- Close Focus Distance: 100 mm to 1000 mm
Range
- Pan: 0° to 360° endless,
- Tilt: -2° to 90°
- Auto Flip: 180°
- Manual Control Speed: Pan: 0.1° to 300° /s Tilt: 0.1° to 120° /s
- Preset Speed: Pan: 300° /s Tilt: 200° /s
- Presets: 300
- PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Compensation: Proportional Pan/Tilt Speed to Zoom Ratio
- Power Up Action: Auto restore to previous PTZ and lens status after power failure
- Idle Motion: Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
- Protocol: DH-SD
Video
- Compression: H.265, H.264, MJPEG
- Streaming Capability: Three (3) Streams
- Resolution: 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
Frame Rate
- Main Stream: 1080p, 720p, or D1 at 30 fps
- Sub Stream 1: D1, CIF at 30 fps
- Sub Stream 2: 1080p, 720p, D1, or CIF at 30 fps
- Bit Rate Control: CBR, VBR
- Bit Rate: H.265/H.264: 448 K to 8192 Kbps, MJPEG: 5120 K to 10240 Kbps
Image Settings
- Day/Night: Auto (ICR), Color, B/W
- Backlight Compensation: BLC, HLC, WDR (120 dB)
- White Balance: Auto, ATW, Indoor, Outdoor, Manual
- Gain Control: Auto, Manual
- Noise Reduction: Ultra DNR (2D/3D)
- Advanced Features: Motion Detection, Region of Interest, Defog
- Digital Zoom: 16x
- Flip: 180°
- Privacy Masking: Up to 24 areas
Network
- Ethernet: RJ-45 (10/100 Base-T)
- Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability: ONVIF, PSIA, CGI
- Streaming Method: Unicast / Multicast
- Max. User Access: 20 Users
- Edge Storage: Network Attached Storage, Local PC for instant recording, Micro SD Card, max. 128 GB
- Web Viewer: IE, Firefox, Safari
- Management Software: Smart PSS, DSS
- Mobile Operating System: IOS, Android
Certifications
- CE: EN 55032, EN 55024, EN 50130-4
- UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility: CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014
Electrical
- Power Supply: 24 VAC, 1.5 A; PoE+ (802.3at Class 4)
- Power Consumption: 12 W
Environmental
- Operating Conditions: –30° C to 60° C (–22° F to +140° F) Less than 90% RH
- Ingress Protection: IP66
- Vandal Resistance: IK10
Construction
- Casing: Metal
- Dimensions: 170.0 mm x 155.0 mm (6.69 in. x 6.10 in.)
- Net Weight: 1.80 kg (3.97 lb)
- Gross Weight: 3.30 kg (7.28 lb)
