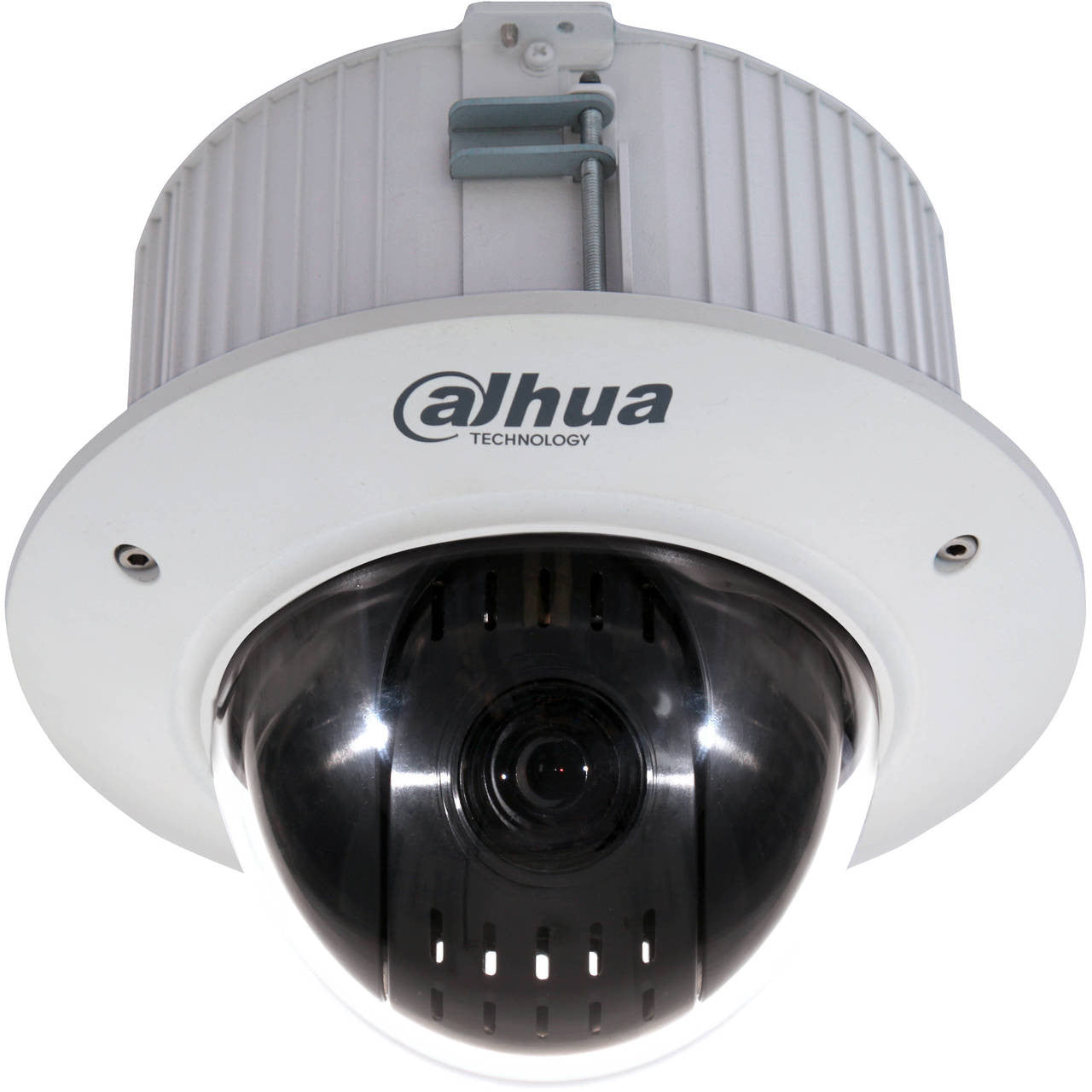

Dahua 42C212TNI 2MP 12x Starlight In-ceiling PTZ Network Camera

Dahua 42C212TNI Features

Camera

• Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
• Effective Pixels 1920(H) x 1080(V), 2 MP
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed 1/1 s to 1/30,000 s
• Minimum Illumination Color: 0.005 lux at F1.6, B/W: 0.0005 lux at F1.6, S/N Ratio More than 55 dB

Lens

• Focal Length 5.3 mm to 64 mm
• Max. Aperture F1.6 to F4.4
• Angle of View Horizontal: 58.2° to 4.8°
• Optical Zoom 12x
• Focus Control Auto, Manual
• Close Focus Distance 100 mm to 1000 mm

PTZ

• Pan/Tilt Range - Pan: 0° to 360° endless, Tilt: –2° to 90°, Auto Flip 180°
• Manual Control Speed Pan: 0.1° to 300° /s & Tilt: 0.1° to 120° /s
• Preset Speed Pan: 300° /s & Tilt: 200° /s
• Presets 300
• PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Compensation: Proportional Pan/Tilt Speed to Zoom Ratio
• Power up Action: Auto restore to previous PTZ and lens status after power failure
• Idle Motion: Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
• Protocol DH-SD

Video

• Compression H.265, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate - Main Stream 1080p, 720p, or D1 at 30 fps, Sub Stream 1 D1 or CIF at 30 fps, Sub Stream 2 1080p, 720p, D1, or CIF at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.265/H.264: 448 K to 8192 Kbps, MJPEG: 5120 K to 10240 Kbps
• Day/Night Auto (ICR), Color, B/W
• Backlight Compensation BLC, HLC, True WDR (120 dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction Ultra DNR (2D/3D)
• Advanced Features Motion Detection, Region of Interest, Defog
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas

Audio

• Compression G.711a, G.711u (32 kbps), PCM (128 kbps)

Network

• Ethernet RJ-45 (10 Base-T/100 Base-TX)
• Protocol - IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users
• Edge Storage - Network Attached Storage (NAS) ,Local PC for Instant Recording, Micro SD Card Slot, maximum 128 GB
• Web Viewer IE 10, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android

Certifications

• UL UL60950-1 + CAN/CSA C22.2, No.60950-1
• Electromagnetic Compatibility
• (EMC)
• EN 55032
• EN 50130-4
• CFR 47 FCC Part 15 Subpart B
• ANSI C63.4-2014
• Immunity EN 55024

Interface

• Audio Input: One (1) Channel, Output: One (1) Channel
• Alarm Input: Two (2) Channels, Output: One (1) Channel

Dahua 42C212TNI Features

The 42C212TNI 2 MP Starlight In-ceiling PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 12x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for indoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with glare. Functions Starlight Technology For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments. Intelligent Video System IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera. Wide Dynamic Range The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. High Efficiency Video Coding (H.265) The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer. Environmental With a temperature range of –30 °C to +60 °C (–22 °F to 140 °F), the camera is designed for extreme temperature environments. The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Protection This camera suits even the harsh conditions for outdoor applications. Its 2KV lightning rating provides protection against the camera and its structure from the effects of lightning.
