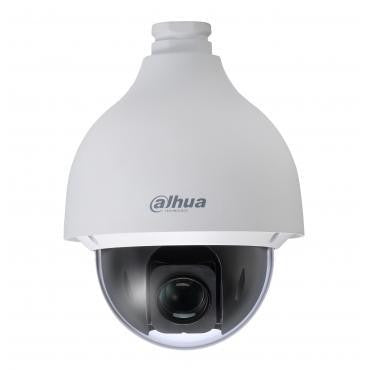

Dahua 50430IC 4MP 30x PTZ HDCVI Camera
Replaced by the 59430IC
Dahua 50430IC Features
Camera
- Image Sensor 1/3-in. CMOS Sensor
- Effective Pixels 2592(H) x 1520(V), 4 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/3 s to 1/300,000 s
- Minimum Illumination Color: 0.05 lux at F1.6, 0 lux at F1.6 with IR on
- S/N Ratio More than 55 dB
Lens
- Focal Length 4.5 mm to 135 mm
- Maximum Aperture F1.6 to F4.4
- Horizontal Angle of View 60° to 2.2°
- Optical Zoom 30x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)
DORI Distance
- Detect (8 ppf): 2700 m (8858 ft)
- Observe (19 ppf): 1080 m (3543 ft)
- Recognize (38 ppf): 540 m (1772 ft)
- Identify (76 ppf): 270 m (886 ft)
PTZ
- Pan/Tilt Range Pan: 0° to 360° endless
- Tilt: -15° to 90°
- Auto Flip 180°
- Manual Control Speed Pan: 0.1° to 350° /s
- Tilt: 0.1° to 250° /s
- Preset Speed Pan: 500° /s
- Tilt: 500° /s
- Presets 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Setup Human-oriented Focal Length and Speed Adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
- Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
- Resolution 4 MP (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720), 960H (960 x 480)
- Frame Rate 4 MP or 3 MP at 30 fps; 1080p at 30/60 fps
- Video Output HDCVI or CVBS
- Video Transmission Please see Datasheet
- Day/Night Auto (ICR), Color, B/W
- OSD Menu Support
- Advanced Features Defog, Compass Overlay
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto, Manual
- Noise Reduction Ultra DNR (2D/3D)
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Certifications
- CE EN 55032, EN 55024, EN 50130-4
- UL UL60950-1 + CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B, ANSI C63.4-2014
Interface
- Video Output One (1) Channel HDCVI or CVBS, BNC
- Audio Input One (1) Channel
- RS485 One (1)
- Alarm Input: Two (2) Channels, Output: One (1) Channel
Electrical
- Power Supply 24 VAC, 1.5 A (± 10%)
- Power Consumption 13 W, 23 W with IR on
Environmental
- Operating Conditions -40° C to 60° C (-40° F to +140° F), with built-in heater, Less than 90% RH Less than 90% RH
- Ingress Protection IP66
- Vandal Resistance IK10
Construction
- Casing Metal
- Dimensions 186.0 mm x 253.0 mm (7.32 in. x 9.96 in.)
- Net Weight 2.50 kg (5.51 lb)
- Gross Weight 4.50 kg (9.92 lb)
