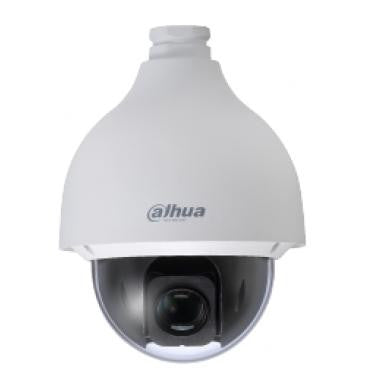

Dahua 50430UNI 4MP 30x PTZ Network Camera

Dahua

Dahua 50430UNI 4MP 30x PTZ Network Camera

$1,369.80
Discontinued
SKU: DUA-50430UNI Ultra
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement 5A445XANR

Dahua 50430UNI Features

Camera

  • Image Sensor 1/3-in. CMOS
  • Effective Pixels 2592(H) x 1520(V), 4 MP
  • RAM/ROM 1024 MB / 128 MB
  • Scanning System Progressive
  • Minimum Illumination Color: 0.05 Lux at F1.6
  • 0 Lux at F1.6 (IR on)
  • S/N Ratio More than 55 dB

Lens

  • Focal Length 4.5 mm to 135 mm
  • Max. Aperture F1.6 to F4.4
  • Angle of View Horizontal: 2.2° to 60°
  • Optical Zoom 30x
  • Focus Control Auto/Manual
  • Close Focus Distance 100 mm to 1000 mm

PTZ

  • Pan/Tilt Range Pan: 0° to 360° endless
  • Tilt: 0° to 90°, Auto Flip 180°
  • Manual Control Speed Pan: 0.1° to 350° /s
  • Tilt: 0.1° to 250° /s
  • Preset Speed Pan: 500° /s
  • Tilt: 500° /s
  • Presets 300
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
  • Speed Setup Human-oriented Focal Length, Speed Adaptation
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
  • Protocol DH-SD

Intelligence

  • Auto Tracking Support
  • IVS Tripwire, Intrusion, Abandoned/Missing Object, Face Detection

Video

  • Compression H.265, H.264, MJPEG
  • Streaming Capability Three (3) Streams
  • Resolution 4 MP (2592 x 1520), 3 MP (2304 x 1296),
  • 1080p (1920 x 1080), 720p (1280 x 720),
  • D1 (704 x 480), CIF (352 x 240)
  • Frame Rate Main Stream: 4 MP, 3 MP, 1.3 MP, 720p at 30 fps or 1080p at 60 fps
  • Sub Stream 1: D1, CIF at 30 fps
  • Sub Stream 2: 1080p, 1.3 MP, 720p at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H.265/H.264: 448 K to 8192 Kbps
  • MJPEG: 5120 K to 10240 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • Backlight Compensation BLC, HLC, WDR (120 dB)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto / Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Advanced Features Motion Detection, Region of Interest,
  • Electronic Image Stabilization (EIS), Defog
  • Digital Zoom 16x
  • Flip 180°
  • Privacy Masking Up to 24 areas

Audio

  • Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20 users
  • Edge Storage NAS (Network Attached Storage)
  • Local PC for instant recording, 128 GB
  • Web Viewer IE 10, Chrome, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Mobile Operating System IOS, Android, Windows

Certifications

  • CE EN 55032, EN 55024, EN 50130-4
  • UL UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
  • Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
  • ANSI C63.4-2014

Interface

  • Audio Interface In: One (1) Channel, Out: One (1) Channel
  • Alarm In: Two (2) Channels, Out: One (1) Channel

Electrical

  • Power Supply AC24V, 1.5 A (±10%), PoE+ (802.3at)
  • Power Consumption 13 W, 23 W with heater on

Environmental

  • Operating Conditions -40°C to 60°C (-40°F to +140°F), Less than 90% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions Φ186.0 mm x 253.0 mm (7.2 in. x 9.96 in.)
  • Net Weight 2.50 kg (5.51 lb)
  • Gross Weight 4.50 kg (9.92 lb)
  • Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
