Dahua 52C230UNI-A

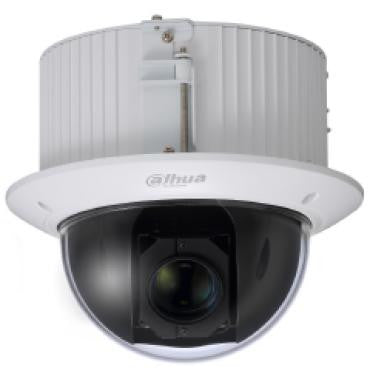

Dahua 52C230UNI-A 2MP 30x Flush-mount PTZ Network Camera

Dahua

Dahua 52C230UNI-A 2MP 30x Flush-mount PTZ Network Camera

Sale price$1,393.18
Discontinued
SKU: 52C230A

Contact

Discontinued - Recommended Replacement:

52C232XANR

Dahua 52C230UNI-A Features

Camera

  • Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
  • Effective Pixels 1920(H) x 1080(V), 2 MP
  • RAM/ROM 512 MB / 128 MB
  • Scanning System Progressive
  • Electronic Shutter Speed 1/1 s to 1/300,000 s
  • Minimum Illumination Color: 0.005 lux at F1.6, B/W: 0.0005 lux at F1.6
  • S/N Ratio More than 55 dB

Lens

  • Focal Length 4.5 mm to 135 mm
  • Max. Aperture F1.6 to F4.4
  • Angle of View Horizontal: 67.8° to 2.4°
  • Optical Zoom 30x
  • Focus Control Auto, Manual
  • Close Focus Distance 100 mm to 1000 mm

DORI Distance¹

  • Detect (8 ppf) 1862 m (6109 ft)
  • Observe (19 ppf) 744 m (2441 ft)
  • Recognize (38 ppf) 372 m (1220 ft)
  • Identify (76 ppf) 186 m (610 ft)

PTZ

  • Pan/Tilt Range Pan: 0° to 360° endless
  • Tilt:0° to 90°
  • Auto Flip 180°
  • Manual Control Speed Pan: 0.1° to 350° /s
  • Tilt: 0.1° to 250° /s
  • Preset Speed Pan: 500° /s
  • Tilt: 500° /s
  • Presets 300
  • PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
  • Speed Setup Human-oriented Focal Length, Speed Adaptation
  • Power up Action Auto restore to previous PTZ and lens status after power failure
  • Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
  • Protocol DH-SD

Video

  • Compression H.265, H.264, MJPEG
  • Streaming Capability Three (3) Streams
  • Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
  • Frame Rate Main Stream: 1080p or 720p at 60 fps; 1.3 MP at 30 fps
  • Sub Stream 1: D1 or CIF at 30 fps
  • Sub Stream 2: 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H.265/H.264: 448 K to 8192 Kbps, MJPEG: 5120 K to 10240 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • Backlight Compensation BLC, HLC, True WDR (120 dB)
  • White Balance Auto, ATW, Indoor, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction Ultra DNR (2D/3D)
  • Advanced Features Motion Detection, Region of Interest,
  • Electronic Image Stabilization (EIS), Defog
  • Digital Zoom 16x
  • Flip 180°
  • Privacy Masking Up to 24 areas

Audio

  • Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 20 users
  • Edge Storage Network Attached Storage (NAS), Local PC for instant recording, Micro SD card, up to 128 GB
  • Web Viewer IE 10, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Smart Phone IOS, Android, Windows

Certifications

  • CE EN 55032
  • EN 55024
  • EN 50130-4
  • UL UL60950-1 + CAN/CSA C22.2, No.60950-1
  • Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Interface

  • Video One (1) BNC
  • Audio Input: One (1) Channel, Output: One (1) Channel
  • Alarm Input: Two (2) Channels, Output: One (1) Channel
  • RS485 One (1) BNC

Electrical

  • Power Supply 24 VAC, 1.5 A (± 10%), PoE+ (802.3at)
  • Power Consumption 13 W

Environmental

  • Operating Conditions -30° C to 60° C (-22°F to 140° F), Less than 90% RH
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions 198.0 mm x 177.0 mm (7.80 in. x 7.0 in.)
  • Net Weight 2.20 kg (4.85 lb)
  • Gross Weight 3.70 kg (8.16 lb)

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features
  • Tampering with the camera.
  • Error writing to an onboard Micro SD card.
  • Error sending or receiving data over the network.
  • Unauthorized access to the camera.
  • Premium Features
  • Motion An object moves through any part of the scene.
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  • Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
  • Advanced Features
  • Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
  • Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.

1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4, the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications.
