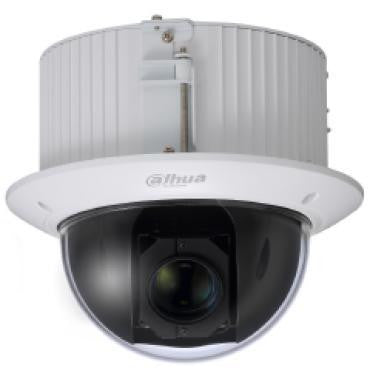

Dahua 52C430IC 4MP 30x In-ceiling PTZ HDCVI Camera

Dahua 52C430IC Features

Camera

• Image Sensor 1/3-in. CMOS Sensor
• Effective Pixels 2592(H) x 1520(V), 4 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/3 s to 1/300,000 s
• Minimum Illumination Color: 0.05 lux at F1.6, 0 lux at F1.6 with IR on
• S/N Ratio More than 55 dB

Lens

• Focal Length 4.5 mm to 135 mm
• Maximum Aperture F1.6 to F4.4
• Horizontal Angle of View 60° to 2.2°
• Optical Zoom 30x
• Focus Control Auto, Manual
• Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)

DORI Distance

• Detect (8 ppf): 2700 m (8858 ft)
• Observe (19 ppf): 1080 m (3543 ft)
• Recognize (38 ppf): 540 m (1772 ft)
• Identify (76 ppf): 270 m (886 ft)

PTZ

• Pan/Tilt Range Pan: 0° to 360° endless
• Tilt: 0° to 90°
• Auto Flip 180°
• Manual Control Speed Pan: 0.1° to 350° /s
• Tilt: 0.1° to 250° /s
• Preset Speed Pan: 500° /s
• Tilt: 500° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented Focal Length and Speed Adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Resolution 4 MP (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720), 960H (960 x 480)
• Frame Rate 4 MP or 3 MP at 30 fps; 1080p at 30/60 fps
• Video Output HDCVI or CVBS
• Video Transmission Please see Datasheet
• Day/Night Auto (ICR), Color, B/W
• OSD Menu Support
• Advanced Features Defog, Compass Overlay
• Backlight Compensation BLC, HLC, True WDR (120 dB)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction Ultra DNR (2D/3D)
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas

Certifications

• CE EN 55032, EN 55024, EN 50130-4
• UL UL60950-1 + CAN/CSA C22.2, No.60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B, ANSI C63.4-2014

Interface

• Video Output One (1) Channel HDCVI or CVBS, BNC
• Audio Input One (1) Channel
• RS485 One (1)
• Alarm Input: Two (2) Channels, Output: One (1) Channel

Electrical

• Power Supply 24 VAC, 1.5 A (± 10%)
• Power Consumption 13 W

Environmental

• Operating Conditions -30° C to 60° C (-22° F to +140° F), with built-in heater, Less than 90% RH Less than 90% RH
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions 198.0 mm x 177.0 mm (7.80 in. x 6.97 in.)
• Net Weight 2.20 kg (4.85 lb)
• Gross Weight 3.70 kg (8.16 lb)
