Discontinued - Recommended Replacement 5A445XANR

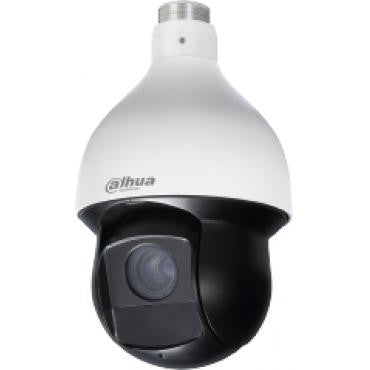

Dahua 59430UNI Features
Camera
- Image Sensor 1/3-in. CMOS
- Effective Pixels 2592(H) x 1520(V), 4 MP
- RAM/ROM 1024 MB / 128 MB
- Scanning System Progressive
- Minimum Illumination Color: 0.05 Lux at F1.6
- 0 Lux at F1.6 (IR on)
- S/N Ratio More than 55 dB
- IR Distance Distance up to 100.0 m (328.10 ft)
- IR On/Off Control Auto/Manual
- IR LEDs Four (4)
Lens
- Focal Length 4.5 mm to 135 mm
- Max. Aperture F1.6 to F4.4
- Angle of View Horizontal: 2.2° to 60°
- Optical Zoom 30x
- Focus Control Auto/Manual
- Close Focus Distance 100 mm to 1000 mm
PTZ
- Pan/Tilt Range Pan: 0° to 360° endless
- Tilt: -15° to 90°, Auto Flip 180°
- Manual Control Speed Pan: 0.1° to 300° /s
- Tilt: 0.1° to 200° /s
- Preset Speed Pan: 400° /s
- Tilt: 300° /s
- Presets 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Setup Human-oriented Focal Length, Speed Adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
- Protocol DH-SD
Intelligence
- Auto Tracking Support
- IVS Tripwire, Intrusion, Abandoned/Missing Object, Face Detection
Video
- Compression H.265, H.264, MJPEG
- Streaming Capability Three (3) Streams
- Resolution 4 MP (2592 x 1520), 3 MP (2304 x 1296),
- 1080p (1920 x 1080), 720p (1280 x 720),
- D1 (704 x 480), CIF (352 x 240)
- Frame Rate Main Stream: 4 MP, 3 MP, 1.3 MP, 720p at 30 fps or 1080p at 60 fps
- Sub Stream 1: D1, CIF at 30 fps
- Sub Stream 2: 1080p, 1.3 MP, 720p at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.265/H.264: 448 K to 8192 Kbps
- MJPEG: 5120 K to 10240 Kbps
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, WDR (120 dB)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto / Manual
- Noise Reduction Ultra DNR (2D/3D)
- Advanced Features Motion Detection, Region of Interest,
- Electronic Image Stabilization (EIS), Defog
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Audio
- Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 20 users
- Edge Storage NAS (Network Attached Storage)
- Local PC for instant recording, 128 GB
- Web Viewer IE 10, Chrome, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System IOS, Android, Windows
Certifications
- CE EN 55032, EN 55024, EN 50130-4
- UL UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
- ANSI C63.4-2014
Interface
- Audio Interface In: One (1) Channel, Out: One (1) Channel
- Alarm In: Two (2) Channels, Out: One (1) Channel
Electrical
- Power Supply AC24V, 3A (±10%), PoE+ (802.3at)
- Power Consumption 13 W, 23 W with IR on
Environmental
- Operating Conditions -40°C to 70°C (-40°F to +158°F), Less than 90% RH
- Ingress Protection IP66
Construction
- Casing Metal
- Dimensions Φ186.0 mm x 309.0 mm (Φ7.32 in. x 12.17 in.)
- Net Weight 3.50 kg (7.72 lb)
- Gross Weight 6.80 kg (14.99 lb)
- Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
