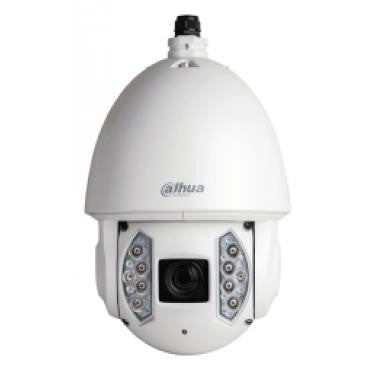

Dahua 6AE530UNI Features
Camera
- Image Sensor 1/1.9-in. Exmor R CMOS
- Effective Pixels 2560(H) x 1920(V), 5 MP
- RAM/ROM 1024 MB / 128 MB
- Scanning System Progressive
- Minimum Illumination Color: 0.01 Lux at F1.5; 0 Lux at F1.5 (IR on)
- S/N Ratio More than 55 dB
- IR Distance Distance up to 200.0 m (656.17 ft)
- IR On/Off Control Auto, Manual
- IR LEDs 10
Lens
- Focal Length 6 mm to 180 mm
- Max. Aperture F1.5 to F4.3
- Angle of View Horizontal: 2.1° to 61.2°
- Optical Zoom 30x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm
PTZ
- Pan/Tilt Range Pan: 0° to 360° endless
- Tilt: -20° to 90°, Auto Flip 180°
- Manual Control Speed Pan: 0.1° to 200° /s
- Tilt: 0.1° to 120° /s
- Preset Speed Pan: 240° /s
- Tilt: 200° /s
- Presets 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
- Speed Setup Human-oriented Focal Length, Speed Adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
- Protocol DH-SD, Pelco-P/D (auto recognition)
Intelligence
- Auto Tracking Support
- IVS Tripwire, Intrusion, Abandoned/Missing Object, Face Detection
Video
- Compression H.265 / H.264 / MJPEG
- Streaming Capability Three (3) Streams
- Resolution 5 MP (2560 x 1920), 3 MP (2048 x 1536), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 ( 704 x 480), CIF (352 x 240)
- Frame Rate Main Stream: 5 MP, 3 MP, 1.3 MP, 720p at 30 fps or 1080p at 60 fps
- Sub Stream 1: D1, CIF at 30 fps
- Sub Stream 2: 5 MP at 20 fps or 1080p, 1.3 MP, 720p at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.265 / H.264: 448 K to 8192 Kbps
- MJPEG: 5120 K to 10240 Kbps
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, Digital WDR
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto, Manual
- Noise Reduction Ultra DNR (2D/3D)
- Advanced Features Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Audio
- Compression G.711a, G.711Mu, AAC, G.722, G.726, MPEG2-L2
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 20 users
- Edge Storage NAS (Network Attached Storage)
- Local PC for Instant Recording
- Micro SD Card, maximum 128 GB
- Web Viewer IE 10, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System iPhone, iPad, Android, Windows Phone
Certifications
- CE EN 55032
- EN 55024
- EN 50130-4
- UL UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
- ANSI C63.4-2014
Interface
- Video Interface One (1) BNC
- Audio Interface In: One (1) Channel; Out: One (1) Channel
- RS485 One (1)
- Alarm In: Seven (7) Channels; Out: Two (2) Channel
Electrical
- Power Supply AC24V, 3 A (±25%), Hi-PoE
- Power Consumption 24 W,38 W with IR On
Environmental
- Operating Conditions -40° C to 70° C (-40° F to +158° F), Less than 95% RH
- Ingress Protection IP67
- Vandal Resistance IK10
Construction
- Casing Metal
- Dimensions Φ240.0 mm x 382.0 mm (9.45 in. x 15.04 in.)
- Net Weight 6.80 kg (14.99 lb)
- Gross Weight 10.10 kg (22.207 lb)
- Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket
