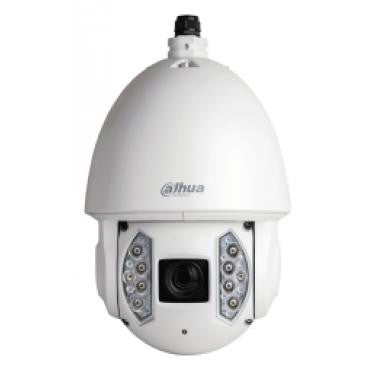

Dahua 6AE830VNI 4K / 8MP 30x Zoom IR PTZ Network Camera

Replaced by the SD8A840WANF

Dahua 6AE830VNI Features

Camera

• Image Sensor 1/1.7-in. Exmor R CMOS
• Effective Pixels 3840(H) x 2160(V), 8 MP
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Minimum Illumination Color: 0.05 Lux at F1.6; 0 Lux (IR on)
• S/N Ratio More than 56 dB
• IR Distance Distance up to 200 m (656 ft)
• IR On/Off Control Auto/Manual
• IR LEDs 10

Lens

• Focal Length 6 mm to 180 mm
• Max. Aperture F1.6 to F4.8
• Angle of View Horizontal: 61.2° to 2.1°
• Optical Zoom 30x
• Focus Control Auto, Manual
• Close Focus Distance 100 mm to 1000 mm

PTZ

• Pan/Tilt Range Pan: 0° to 360° endless
• Tilt: -20° to 90°,
• Auto Flip 180°
• Manual Control Speed Pan: 0.1° to 200° /s
• Tilt: 0.1° to 120° /s
• Preset Speed Pan: 240° /s;
• Tilt: 200° /s
• Presets 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan ,Auto Scan
• Speed Setup Human-oriented focal Length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Protocol DH-SD, Pelco-P/D (Auto recognition)

Video

• Compression H.265, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 4K (3840 x 2160), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720)
• Frame Rate Main Stream: 4K, 1.3 MP, 720p at 30 fps or 1080p at 60 fps
• Sub Stream 1: D1, CIF at 30 fps
• Sub Stream 2: 1080p, 720p, D1 at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.265 / H.264: 256 K to 8192 Kbps,
• MJPEG: 256 K to 64256 Kbps
• Day/Night Auto (ICR), Color, B/W
• Backlight Compensation BLC, HLC, DWDR
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction Ultra DNR (2D/3D)
• Advanced Features Motion Detection, Region of Interest,
• Electronic Image Stabilization (EIS), Defog
• Digital Zoom 16x
• Flip 180°
• Privacy Masking Up to 24 areas

Audio

• Compression G.711a, G.711u (32 kbps), PCM (128 kbps)

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 users
• Edge Storage NAS (Network Attached Storage)
• Local PC for instant recording, 128 GB
• Web Viewer IE 10, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System iPhone, iPad, Android, Windows Phone

Certifications

• CE EN55032; EN55024; EN50130-4; UL UL60950-1+CAN/CSA C22.2,No.60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B
• ANSI C63.4- 2014

Interface

• Video Interface One (1)
• Audio Interface Audio In: One (1) Channel
• Audio Out: One (1) Channel
• RS485 One (1)
• Alarm Alarm In: Seven (7) Channels
• Alarm Out: Two (2) Channels

Electrical

• Power Supply 24 VAC, 3 A (± 25%), Hi-PoE
• Power Consumption 24 W, 38 W with IR on

Environmental

• Operating Conditions -40° C to 70° C (-40° F to +158° F)
• Less than 90% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø240.0 mm x 382.0 mm (ø9.45 in. x 15.04 in.)
• Net Weight 6.75 kg (14.88 lb)
• Gross Weight 10.10 kg (22.27 lb)
• Included Accessories: AC power adapter, mounting adapter, and Wall Mount Bracket

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.

Premium Features

• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.
• Heat Map Generates a visual representation of data.
• Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
