Replaced by the 6CE445XANR
Dahua 6C430UNI Features
Camera
- Image Sensor 1/3-in. CMOS
- Effective Pixels 2592(H) x 1520(V), 4 MP
- RAM/ROM 1024 MB / 128 MB
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination Color: 0.05 lux at F1.6, 0 lux at F1.6 with IR on, S/N Ratio More than 55 dB
- IR Distance Distance up to 100.0 m (328.10 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Six (6)
Lens
- Focal Length 4.5 mm to 135 mm
- Max. Aperture F1.6 to F4.4
- Angle of View Horizontal: 2.2° to 60°
- Optical Zoom 30x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm
PTZ
- Pan/Tilt Range Pan: 0° to 360° endless, Tilt: –15° to 90°, Auto Flip 180°
- Manual Control Speed Pan: 0.1° to 160° /s, Tilt: 0.1° to 120° /s
- Preset Speed Pan: 240° /s, Tilt: 200° /s
- Presets 300
- PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- Speed Setup Human-oriented Focal Length, Speed Adaptation
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period
- Protocol DH-SD, Pelco-P/D (auto recognition)
Video
- Compression Smart H.265+, H.265, Smart H.264+, H.264
- Streaming Capability Three (3) Streams
- Resolution - 4 MP (2592 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
- Frame Rate - Main Stream 4 MP, 3 MP at 30 fps or 1080p, 1.3 MP, or 720p at 60 fps, Sub Stream 1 D1, CIF at 30 fps, Sub Stream 2 4 MP, 1080p, 1.3 MP, 720p, D1, or CIF at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.265/H.264: 448 K to 8192 Kbps
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- White Balance Auto, ATW, Indoor, Outdoor, Manual
- Gain Control Auto, Manual
- Noise Reduction Ultra DNR (2D/3D)
- Advanced Features - Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Audio
- Compression G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2
Network
- Ethernet RJ-45 (10 Base-T/100 Base-TX)
- Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 20 users
- Edge Storage - NAS (Network Attached Storage), Local PC for instant recording, Micro SD Card Slot, maximum 128 GB
- Web Viewer IE 10, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System IOS, Android
Certifications
- CE - EN 55032, EN 55024, EN 50130-4
- UL UL: UL60950-1 + CAN/CSA C22.2, No.60950-1
- Electromagnetic Compatibility (EMC) - FCC Part 15 Subpart B, ANSI C63.4-2014
Interface
- Video One (1) BNC (1.0 Vp-p, 75 Ω) Output
- Audio Input: One (1) Channel
- Output: One (1) Channel
- RS485 One (1)
- Alarm Input: Two (2) Channels
- Output: One (1) Channel
Electrical
- Power Supply 24 VAC, 3 A (± 10%)
- Power Consumption 10.5 W, 26 W with IR on
Dahua 6C430UNI Overview

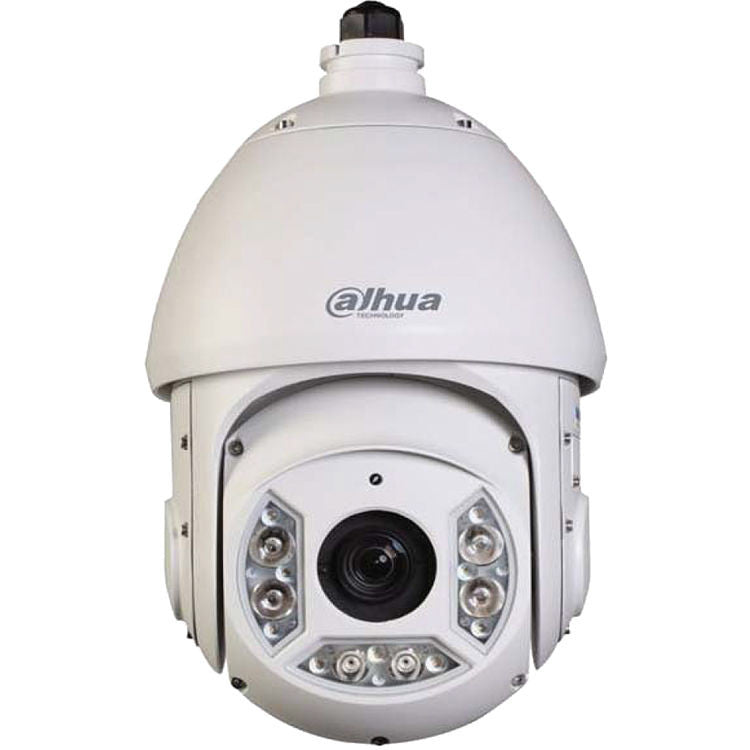

The 6CE230UNI 4 MP IR PTZ Dome camera features a 1/3-in CMOS imager with a 30x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare. Functions Wide Dynamic Range The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Intelligent Video System (IVS) IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera. Auto-tracking This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically. Predictive Focus Algorithm (PFA) Technology The innovative PFA Technology is a series of built-in algorithms that improve zoom accuracy and decrease focus time. As the camera zooms in on a subject, PFA controls the zoom rate and the focus control to keep the subject in focus. This technology ensures the subject stays in focus during the entire zoom process. Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) and to the PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer. Environmental With a built-in heater and a temperature range of –40° C to +60° C (–40° F to 140° F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.
