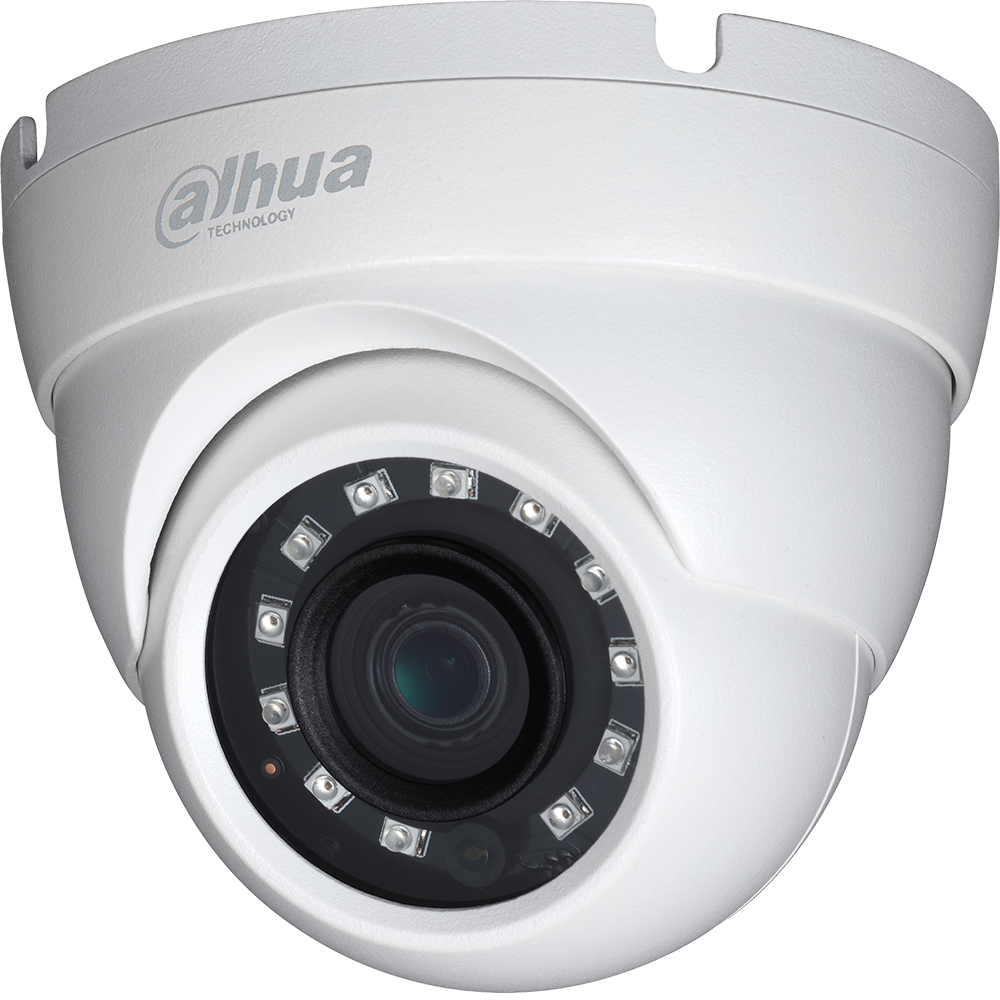

Dahua A211K02 2MP 2.8mm Multi-format Eyeball Camera

Features

Camera

• Image Sensor 1/2.7-in. CMOS
• Effective Pixels 1920(H) x 1280(V), 2 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/30 s to 1/100000 s
• Minimum Illumination Color: 0.02 Lux at F1.85 (30 IRE), 0 Lux with IR on
• S/N Ratio More than 65 dB
• IR Distance Up to 30 m (98.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs 12

Lens

• Lens Type Fixed Lens / Fixed Iris
• Mount Type Board-in
• Focal Length 2.8 mm
• Max Aperture F1.85
• Horizontal Angle of View 103°
• Close Focus Distance 900 mm (35.43 in.)

Video

• Resolution 1080p (1920 x 1080)
• Frame Rate 1080p at 30 fps, 720p at 30/60 fps
• Video Output One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, DWDR
• WDR Digital WDR
• Gain Control AGC
• Noise Reduction 2D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Certifications

• Safety EN55032, EN55024, EN50130-4, UL60950-1+CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014

Electrical

• Power Supply 12 VDC ±30%
• Power Consumption Maximum 3.3 W (12 VDC with IR on)

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• Initiate startup above –40° C (–40° F)
• Storage Conditions –40° C to +60° C (–40° F to +140° F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium
• Dimensions ø93.40 mm × 79.40 mm (ø3.68 in. x 3.13 in.)
• Net Weight 0.27 kg (0.60 lb)
• Gross Weight 0.34 kg (0.75 lb)
