Replaced by the A21CL02

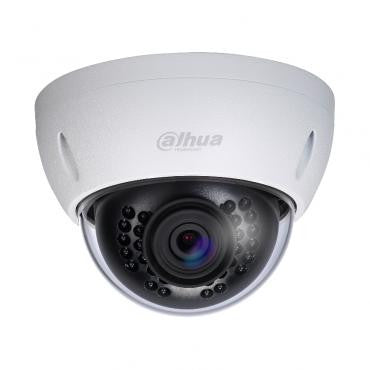

Dahua A21BL02 Features
Camera
- Image Sensor 1/2.9-in. CMOS
- Effective Pixels 1920(H) x 1280(V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/30 s to 1/100000 s
- Minimum Illumination Color: 0.02 Lux at F2.0; 0 Lux (with IR on)
- S/N Ratio More than 65 dB
- IR Distance Up to 30 m (98 ft)
- IR On/Off Control Auto, Manual
- IR LEDs 12
Lens
- Lens Type Fixed Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 2.8 mm
- Max Aperture F2.0
- Angle of View 106°
- Close Focus Distance 500 m (19.7 in.)
Pan / Tilt / Rotation
- Range Pan: 0° to 355°
- Tilt: 0° to 65°
- Rotation: 0° to 355°
Video
- Resolution 1080p (1920 x 1080)
- Frame Rate 1080p at 30 fps; 720p at 30/60 fps
- Video Output One (1) BNC HDCVI High-definition Channel; One (1) BNC CVBS, AHD or TVI Channel, switchable
- Day/Night Auto (ICR), Manual
- OSD Menu Multi-language
- BLC Mode BLC, HLC, DWDR
- WDR Digital WDR
- Gain Control AGC
- Noise Reduction 2D
- White Balance Auto, Manual
- Smart IR Auto, Manual
Video Transmission
- RG-59/U Coax 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft)
- RG-6/U Coax 720p: 1200 m (3937.01 ft); 1080p: 800 m (2624.67 ft)
- CAT 6 UTP 720p: 450 m (1476.38 ft); (balun required) 1080p: 300 m (984.25 ft)
Certifications
- Safety EN55032, EN55024, EN50130-4
- UL60950-1+CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B
- ANSI C63.4-2014
Electrical
- Power Supply 12 VDC ±25%
- Power Consumption Max 2.6 W (12 VDC with IR on)
Environmental
- Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 95% RH
- Initiate startup above -40° C (-40° F)
- Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 95% RH
- Ingress Protection IP67
- Vandal Resistance IK10
Construction
- Casing Aluminium
- Dimensions ø109.90 mm × 81.0 mm (ø4.33 in. x 3.19 in.)
- Net Weight 0.31 kg (0.68 lb)
- Gross Weight 0.41 kg (0.90 lb)
