Discontinued - Recommended Replacement:
A22DJAZ
Features
Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 1920(H) x 1080(V), 2 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/30 to 1/100,000 s
- Minimum Illumination Color: 0.005 lux at F1.8 (30 IRE), 0 lux with IR on
- S/N Ratio More than 65 dB
- IR Distance Up to 60.0 m (196.85 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Two (2)
Lens
- Lens Type Motorized lens, Fixed iris
- Mount Type Board-in
- Focal Length 2.7 mm to 12 mm
- Max Aperture F1.8
- Horizontal Angle of View 101.7° to 32.3°
- Focus Control Motorized
- Close Focus Distance 200.0 mm (7.87 in.)
Video
- Resolution 1080p (1920 x 1080)
- Frame Rate 1080p at 30 fps, 720p at 30/60 fps
- Video Output One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable
- Day/Night Auto (ICR), Manual
- On-screen Display Menu
- Multi-language (Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, and Spanish)
- BLC Mode BLC, HLC, DWDR
- WDR Digital WDR
- Gain Control AGC
- Noise Reduction 2D
- White Balance Auto, Manual
- Smart IR Auto, Manual
Certifications
- Safety UL60950-1+CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B, ANSI C63.4-2014, EN55032, EN55024, EN50130-4
Electrical
- Power Supply 12 VDC ±30%
- Power Consumption 8.2 W Maximum (12 VDC, IR on)
Environmental
- Operating Conditions –30° C to +60° C (–22° F to +140° F), Less than 90% RH
- Storage Conditions –30° C to +60° C (–22° F to +140° F), Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions 122.0 mm x 104.0 mm (4.80 in. x 4.09 in.)
- Net Weight 0.57 kg (1.26 lb)
- Gross Weight 0.72 kg (1.59 lb)

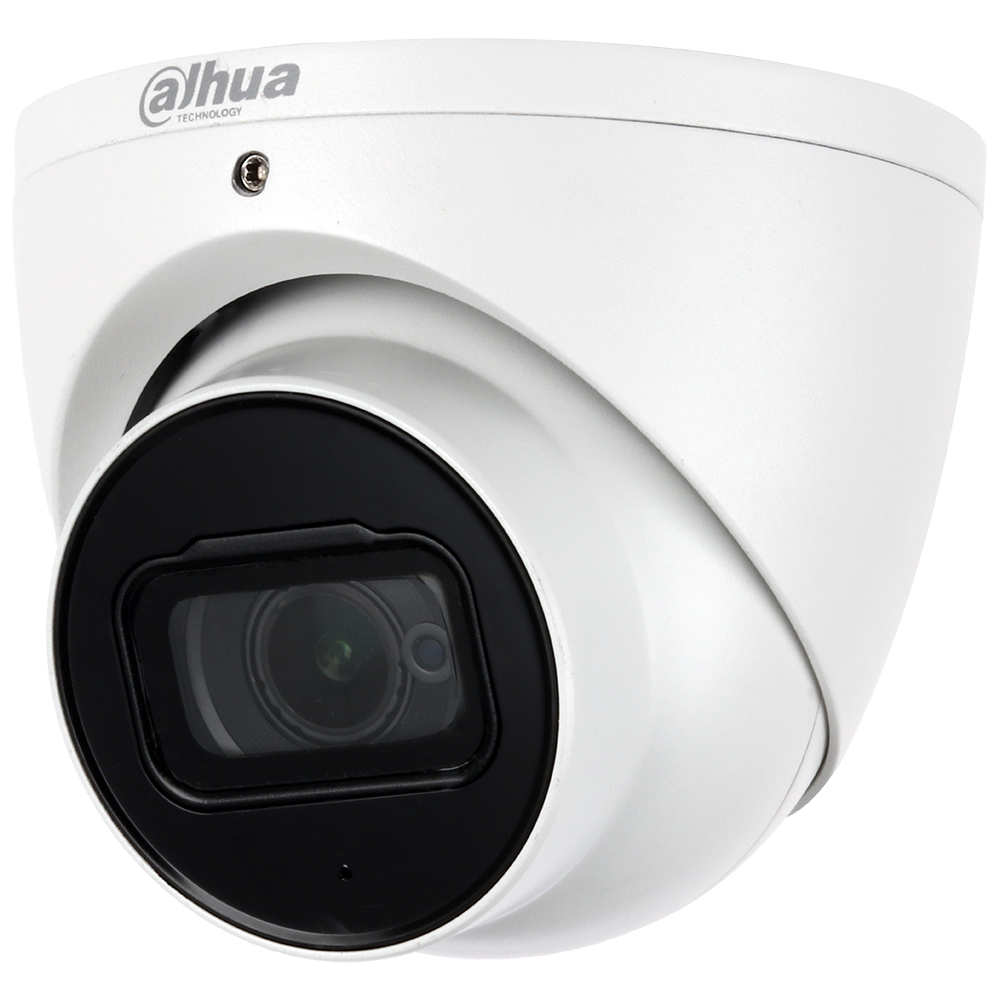

Overview
Experience the superior clarity of Dahua’s 2 MP HDCVI cameras for vast coverage and superior image details. The 2 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses a progressive-scan CMOS sensor and next-generation ISP chip technology developed by Dahua to deliver stunning video with a wide field of view. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production Dahua can offer the latest security systems at a cost-effective price.
