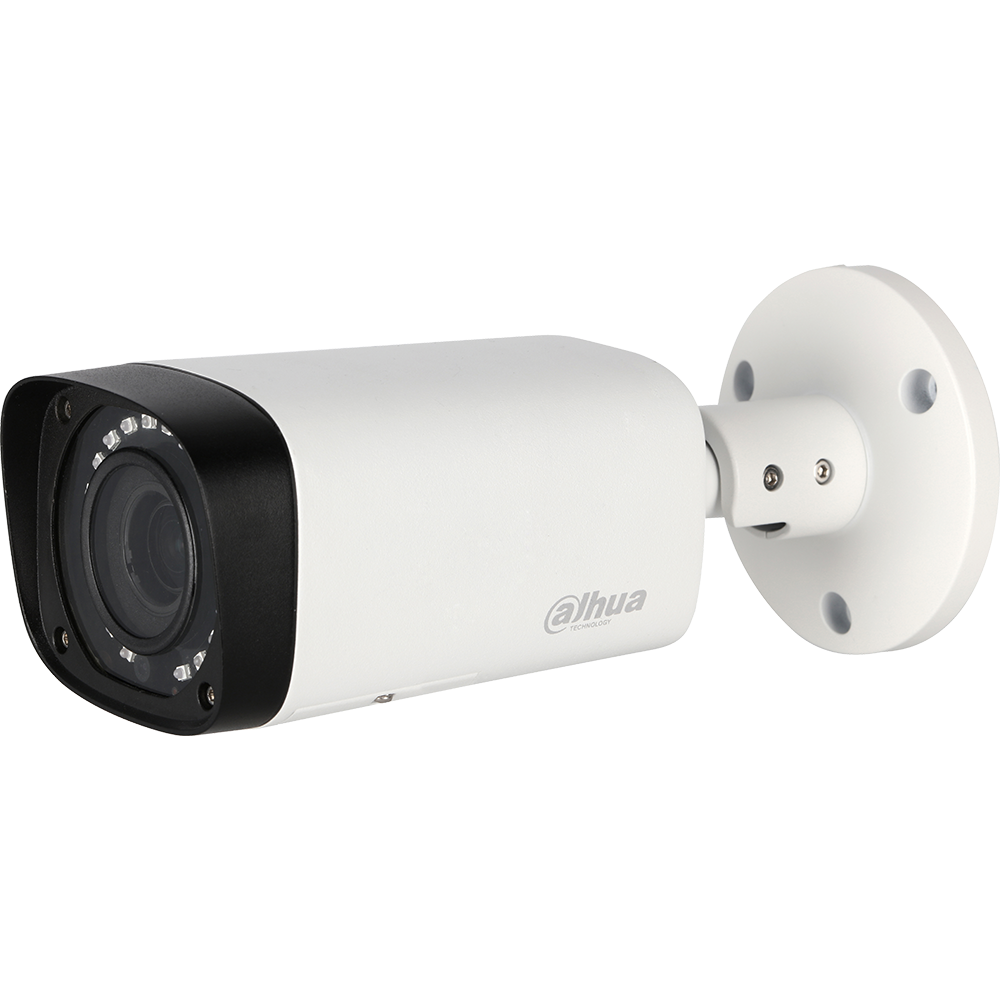

Dahua A22AC9Z 2MP WDR Vari-focal Multi-Format Bullet Camera

Dahua A22AC9Z Features

• Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI

Camera

• Image Sensor 1/2.8-in. CMOS
• Effective Pixels 1937(H) x 1097(V), 2.1 MP
• Scanning System Progressive
• Electronic Shutter Speed 1/30 s to 1/100000 s
• Minimum Illumination Color: 0.005 Lux at F1.3, 30 IRE, 0 Lux (with IR on)
• S/N Ratio More than 65 dB
• IR Distance Up to 60 m (196.85 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Four (4)

Lens

• Lens Type Motorized Lens / Fixed Iris
• Mount Type Board-in
• Focal Length 2.7 mm to 13.5 mm
• Max Aperture F1.3
• Horizontal Angle of View 102° to 29°
• Focus Control Auto, Manual
• Close Focus Distance 200 mm (7.87 in.)

Pan / Tilt / Rotation

• Pan: 0° to 360°
• Tilt: 0° to 87°
• Rotation: 0° to 360°

Video Transmission

• RG-59/U Coax 720p: 800 m (2624.67 ft), 1080p: 500 m (1640.42 ft)
• RG-6/U Coax 720p: 1200 m (3937.01 ft), 1080p: 800 m (2624.67 ft)
• CAT 6 UTP, (balun required), 720p: 450 m (1476.38 ft), 1080p: 300 m (984.25 ft)

Video

• Resolution 2 MP (1920 x 1080)
• Frame Rate 2 MP at 30 fps, 720p at 30 fps
• Video Output One (1) BNC HDCVI High-definition Channel, or One (1) BNC CVBS, AHD, or TVI Channel, switchable
• Day/Night Auto (ICR), Manual
• OSD Menu Multi-language
• BLC Mode BLC, HLC, WDR
• WDR True WDR (120 dB)
• Gain Control AGC
• Noise Reduction 2D/3D
• White Balance Auto, Manual
• Smart IR Auto, Manual

Certifications

• Safety UL60950-1+CAN/CSA C22.2 No.60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014

Electrical

• Power Supply 24 VAC ±25% or 12 VDC ±25%
• Power Consumption Maximum 14.1 W (at 12 VDC with IR on)

Environmental

• Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
• Initiate startup above -40° C (-40° F)
• Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
• Ingress Protection IP67

Construction

• Casing Aluminium
• Dimensions 213.0 mm x 90.40 mm x 90.40 mm (8.39 in. x 3.56 in. x 3.56 in.)
• Net Weight 0.63 kg (1.39 lb)
• Gross Weight 0.76 kg (1.68 lb)
