Replaced by the A21CJ0Z

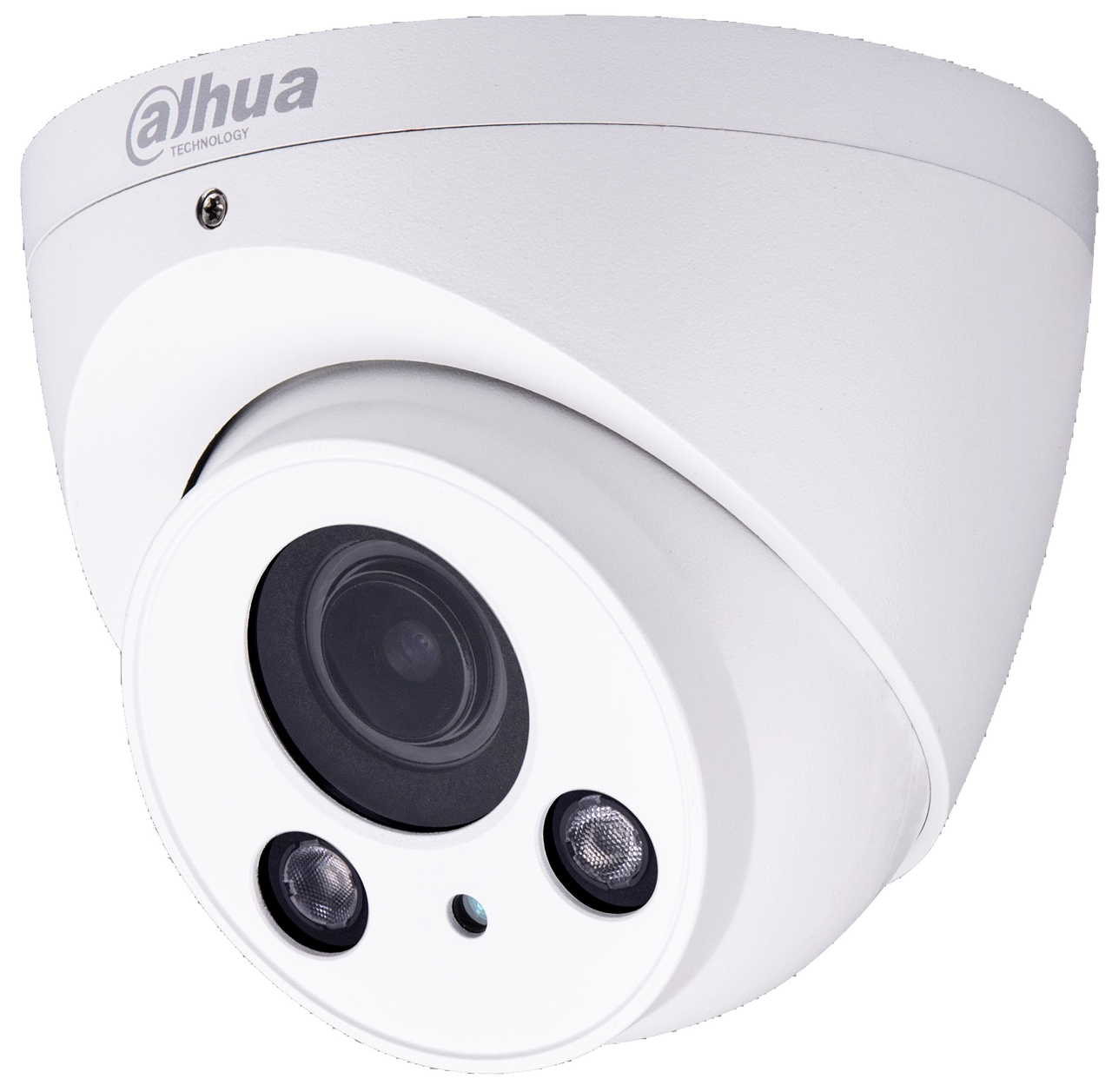

Dahua A22AH9Z Features
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 1937(H) x 1097(V), 2.1 MP
- Scanning System Progressive
- Electronic Shutter Speed 1/30 s to 1/100000 s
- Minimum Illumination Color: 0.005 Lux at F1.3, 30 IRE, 0 Lux (with IR on)
- S/N Ratio More than 65 dB
- IR Distance Up to 60 m (196.85 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Two (2)
Lens
- Lens Type Motorized Lens / Fixed Iris
- Mount Type Board-in
- Focal Length 2.7 mm to 13.5 mm
- Max Aperture F1.3
- Horizontal Angle of View 102° to 29°
- Focus Control Auto, Manual
- Close Focus Distance 200 mm (7.87 in.)
Pan / Tilt / Rotation
- Pan: 0° to 360°
- Tilt: 0° to 78°
- Rotation: 0° to 360°
Video Transmission³
- RG-59/U Coax 720p: 800 m (2624.67 ft), 1080p: 500 m (1640.42 ft)
- RG-6/U Coax 720p: 1200 m (3937.01 ft), 1080p: 800 m (2624.67 ft)
- CAT 6 UTP (balun required), 720p: 450 m (1476.38 ft), 1080p: 300 m (984.25 ft)
Video
- Resolution 2 MP (1920 x 1080)
- Frame Rate 2 MP at 30 fps, 720p at 30 fps
- Video Output One (1) BNC HDCVI High-definition Channel, or One (1) BNC CVBS, AHD, or TVI Channel, switchable
- Day/Night Auto (ICR), Manual
- OSD Menu Multi-language
- BLC Mode BLC, HLC, WDR
- WDR True WDR (120 dB)
- Gain Control AGC
- Noise Reduction 2D/3D
- White Balance Auto, Manual
- Smart IR Auto, Manual
Certifications
- Safety UL60950-1+CAN/CSA C22.2 No.60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014
Electrical
- Power Supply 24 VAC ±25% or 12 VDC ±25%
- Power Consumption Maximum 10.5 W (at 12 VDC with IR on)
Environmental
- Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
- Initiate startup above -40° C (-40° F)
- Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 90% RH
- Ingress Protection IP67
Construction
- Casing Aluminium
- Dimensions 122.0 mm x 104.90 mm (4.80 in. x 4.13 in.)
- Net Weight 0.62 kg (1.37 lb)
- Gross Weight 0.77 kg (1.70 lb)
